Agricultural spraying drones, also known as plant protection drones, agricultural plant protection drones, as the name suggests, are unmanned aircraft used in agriculture and forestry plant protection operations, the type of unmanned aircraft by the flight platform (fixed-wing, helicopters, multi-axis aircraft), navigation flight control, spraying mechanism and four parts of the drone battery, through the ground remote control or navigation flight control, to achieve spraying operations, you can spray chemicals, seeds, powders, etc.. With the rapid development of drone technology, the more extensive "agricultural drones" gradually replace the "plant protection drones", agricultural drones are not only used for spraying and applying medicine, but also can be used to spread fertilizer, seeds, feed and other work to meet the diversified needs of farmers. Improve production efficiency, and agricultural plant protection drone battery as the power source of agricultural plant protection drone, is the most important of the drone components.
● 2C~5C Fast Charging ● Easy to Plug ● Adapted to All Communication Protocols ● Anti-fire Function ● Health Self-check ● Low temperature self-heating, and high temperature resistance | ● Abnormal Record ● Waterproof, Dustproof and Anti-corrosion ● History Information Storage ● Charge and Discharge Protection ● Communication Protection ● Intelligent Protection |
Suitable for: 8L, 10L, 16L, 20L, 30L and Other Agricultural Drones
TATTU Smart Battery
TATTU 3.0
TATTU Pro

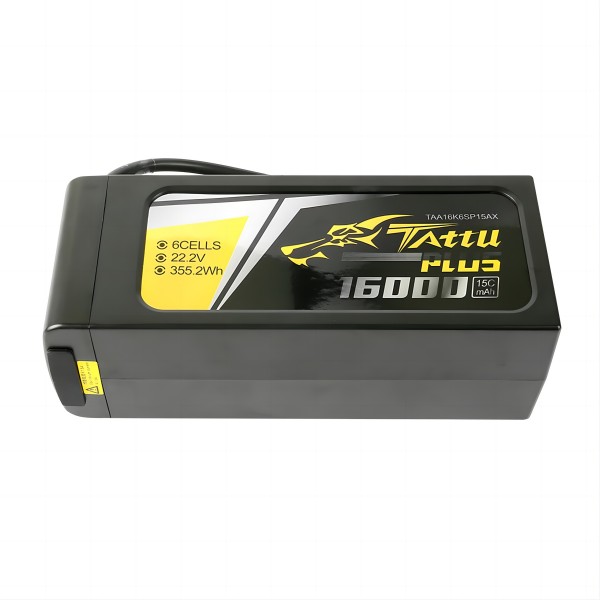

Tattu Plus smart battery suit for 6S and 12S power system and support SMBUS/UAVCAN protocol. With the smart LED indication, users can identify the battery status more accurately.
- Minimum Capacity: 16000mAh
- Configuration: 6S1P / 22.2V / 6Cell
- Discharge Rate: 15C
- Max Burst Discharge Rate: 30C
- Net Weight(±20g): 2063g
- Dimensions: 230mm Length x 81mm Width x 70mm Height
- Charge Plug: JST-XHR
- Discharge Plug: AS150+XT150
Brand Models | Capacity | Voltage | Discharge Rate | Combination of Battery Cells | L*W*H | Weight | Energy Density |
Tattu Plus AGRI | 14000 | 44.4 | 25C | 12S1P | 224*163*90 | 4200 | 148.00 |
Tattu Plus AGRI | 16000 | 44.4 | 15C | 12S1P | 224*163*90 | 4700 | 151.15 |
Tattu Plus AGRI | 22000 | 44.4 | 25C | 12S1P | 235*172*116 | 5800 | 168.41 |
Tattu Plus 1.0 | 16000 | 44.4 | 15C | 12S1P | 224*163*90 | 4700 | 151.15 |
Tattu Plus 1.0 | 18000 | 51.8 | 25C | 14S1P | 235*172*116 | 5950 | 168.41 |
Tattu Plus 1.0 | 22000 | 44.4 | 25C | 12S1P | 235*172*116 | 5800 | 168.41 |
Tattu Plus 1.0 | 20000 | 53.2 | 25C | 12S1P | 282*168*112 | 6500 | 163.69 |
*For more Agriculture Spraying UAV Batteries, contact us please, to get your flexible customization!

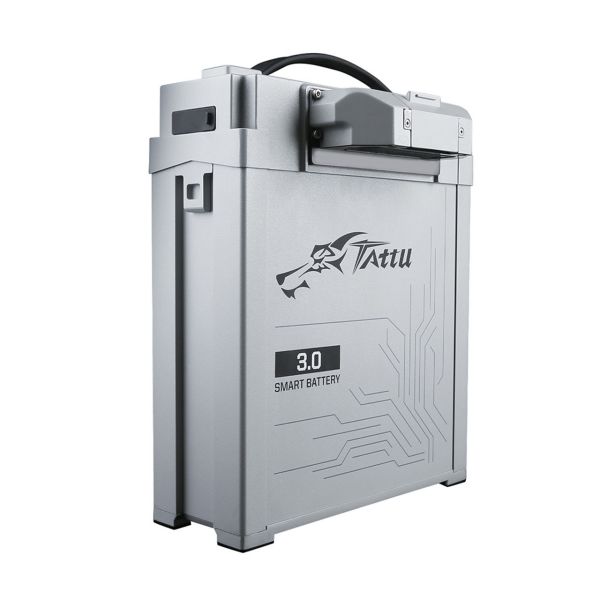

The Tattu 3.0 is a new generation smart battery with optimized plug&play installation, support 3C fast charging and Max.150A continuous current, the lifespan can be more than 600 cycles.
- Capacity: 25000mAh
- Configuration: 14S1P / 51.8V / 14 Cells
- Discharge Rate: 25C
- Net Weight(±10g): 9600g
- Dimensions(±5): 279*236*91mm
- Discharge Plug: Molex
Brand Models | Capacity | Voltage | Discharge Rate | Combination of Battery Cells | L*W*H | Weight | Energy Density |
Tattu 3.0 | 10000 | 53.2 | 25C | 14S1P | 236*186*96 | 4100 | 129.76 |
Tattu 3.0 | 19000 | 51.8 | 25C | 14S1P | 279*236*91 | 7200 | 136.69 |
Tattu 3.0 | 22000 | 51.8 | 25C | 14S1P | 279*236*91 | 8500 | 134.07 |
Tattu 3.0 | 28000 | 51.8 | 25C | 14S1P | 279*236*91 | 9100 | 159.38 |
*For more Agriculture Spraying UAV Batteries, contact us please, to get your flexible customization!

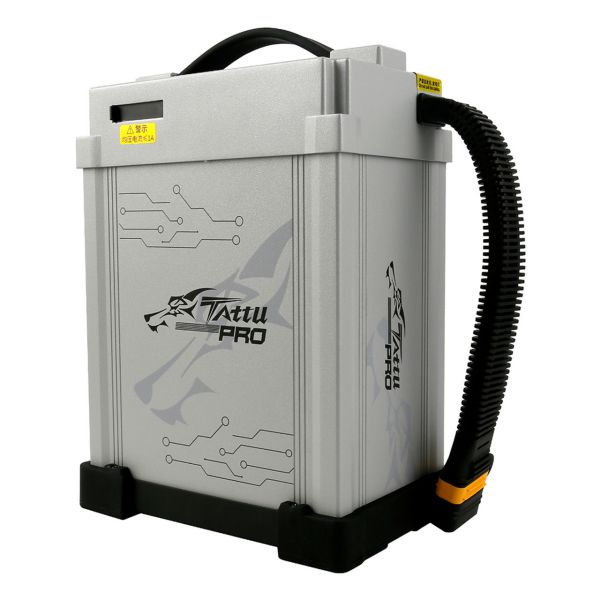

The Tattu Pro is suited for 12S and 14S power system, surpport 3C fast charging, and 600+ lifespan, with improved structure design. The Tattu Pro batteries come with good heat dissipation and waterproof performance, making your drones work more smoothly and safely.
- Minimum Capacity: 22000mAh
- Configuration: 12S1P / 44.4V / 12 Cells
- Discharge Rate: 25C
- Max Burst Discharge Rate: 50C
- Net Weight(±20g): 6300g
- Dimensions: 117mm Length x 174mm Width x 238mm Height
- Charge Plug:
- Discharge Plug: AS150U-F
Brand Models | Capacity | Voltage | Discharge Rate | Combination of Battery Cells | L*W*H | Weight | Energy Density |
Tattu Pro | 22000 | 51.8 | 25C | 14S1P | 117 * 174* 238 | 7350 | 155.04 |
*For more models specifications or Agriculture Spraying UAV Battery solutions, contact us please, to get your flexible customization!
