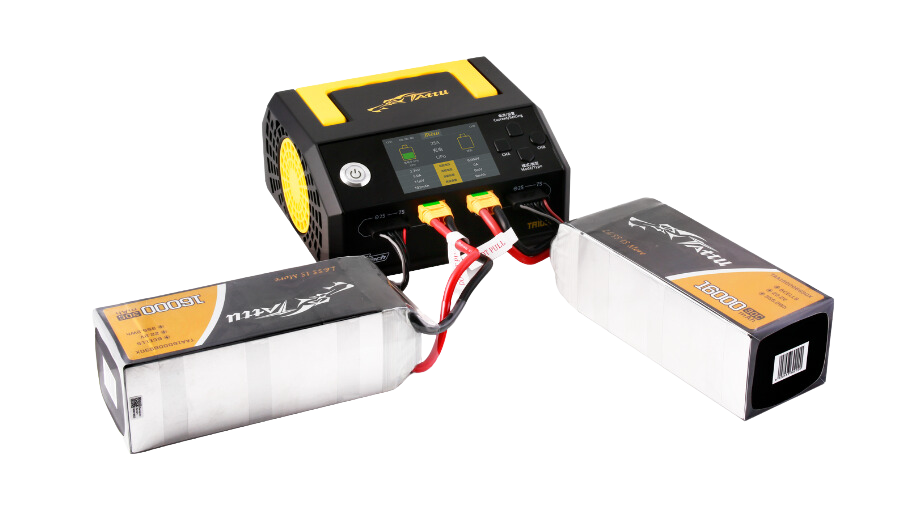

The TA1000 supports 1-7 cell LiPo and LiHV batteries, with AC input and max charging current of 25A*2, offering users more flexible charging options. Suitable for RC models, FPV, and industrial drones, the TA1000 includes comprehensive protection features such as over-temperature, over-current, overcharge and reverse polarity protection to ensure charging safety. The Tattu TA1000 dual-channel smart charger is a versatile and intelligent charging solution designed for a variety of batteries. As a proud member of G-Tech Eco, this charger is tailored for G-Tech smart batteries while also being compatible with non-G-Tech batteries. When connected to a G-Tech battery, the TA1000 charger seamlessly identifies the battery type and voltage through the smart balance connector. It then automatically allocates the recommended 1C charging current specified by the battery manufacturer. For non-G-Tech batteries, users can manually select the battery type, charging current, and working mode.
● Intelligent recognition with G-Tech technology
● Dual channels with fully independent functio
● Compact and flexible, with 25A charging current
●LiPo/LiHV 1-7S (supports G-Tech/Non G-Tech battery)
Model | TA1000 | Maximum charging power in storage mode | 500W * 2 |
Input voltage | AC 100-240V 50/60Hz | Maximum discharge power in storage mode | 70W * 2 |
Output Voltage | DC 0~32V | Working temperature | 0~60 ℃ |
Charging current | Max 25A * 2 | Storage temperature | -20~60 ℃ |
Charging current in storage mode | 25A * 2 | Dimensions | 186x174x95mm |
Discharge current in storage mode | 6A * 2 | Weight | about 1.7Kg |
Maximum charging power | 500W * 2 | Supported battery type and number of cells | LiPo/LiHV 1-7S (can support G-Tech plug) |
