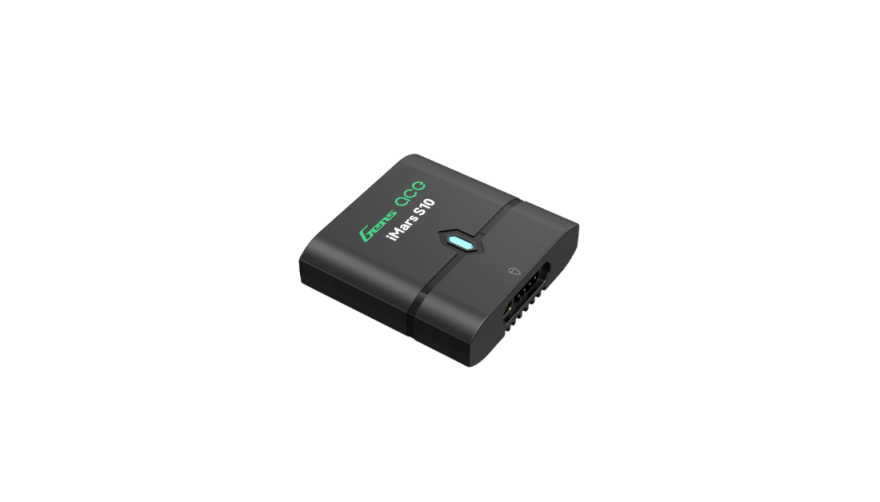

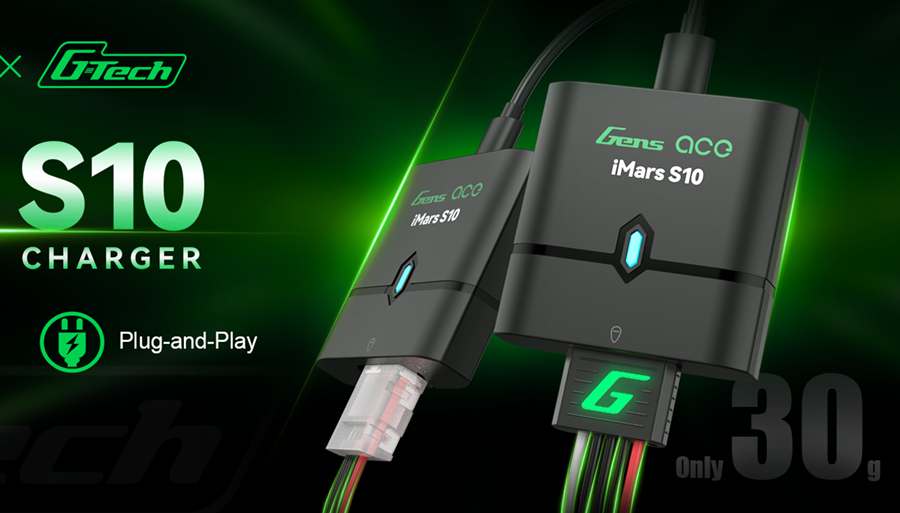

iMars S10 Charger with G-Tech

The iMars S10 Charger, a new addition to the Gens ace G-Tech Eco series, is designed for G-Tech batteries while also supporting a wide range of non-G-Tech options commonly used in airsoft. It accommodates battery capacities from 250mAh to 3000mAh and supports 2–3S Lipo batteries.

Solution Details

The newly launched iMars S10 joins the G-Tech Eco series, designed primarily for 7.4V, 7.7V, 11.1V, and 11.4V configurations, making it a flexible choice for various battery types. Equipped with a G-Tech connector, the iMars S10 intelligently detects whether a battery is a High-voltage version and automatically selects the optimal charging mode. For non-G-Tech batteries, it defaults to a standard 4.2V per cell charge, ensuring reliable and safe performance across all compatible batteries.

iMars S10 Smart RC Charger Features

●Ultra-portable, weighs less than 30g

●10W Max, Fast Charge 2-3S LiPo

●Plug-and-Play

●Intelligent recognition with G-Tech, effortless charging process

●Abnormal voltage alarm and reverse connection protection

S10 Charger Parameters

Max.Charge Power: 10W

Charge Current: Max.0.8A

Charging Connector: Only Balancing Connector allowed

Input voltage: 5V

Output Voltage: 5~13.05V

Max.Input Current: DC2A

Balance Current: Max.80mA

Input port:BC1.2/SDP/CDP/DCP/Apple 5V/2.4A

(Unavailable for 5V/1A power supply adapter input)

Abnormal battery voltage alarm:Yes

Output reverse connection protection and alarm: Yes

Balance port reverse connection protection and alarm: Yes

Supported Battery Types: LiPo 2~3S

Working Temperature: 0~45C

Storage Temperature: -20℃~60℃

Dimension: 51x51x14mm

Net Weight: Apporx. 23 g

Indicator Description

Working Status	Indicator Description
Connected to power	Green flashing three times
Charging G-Tech Lipo battery	Red light blinks after two simultaneous red and green flashes
Charging non-G-Tech Lipo battery	Red flashing
Full charge	Solid green light
Error warning	Solid red light
