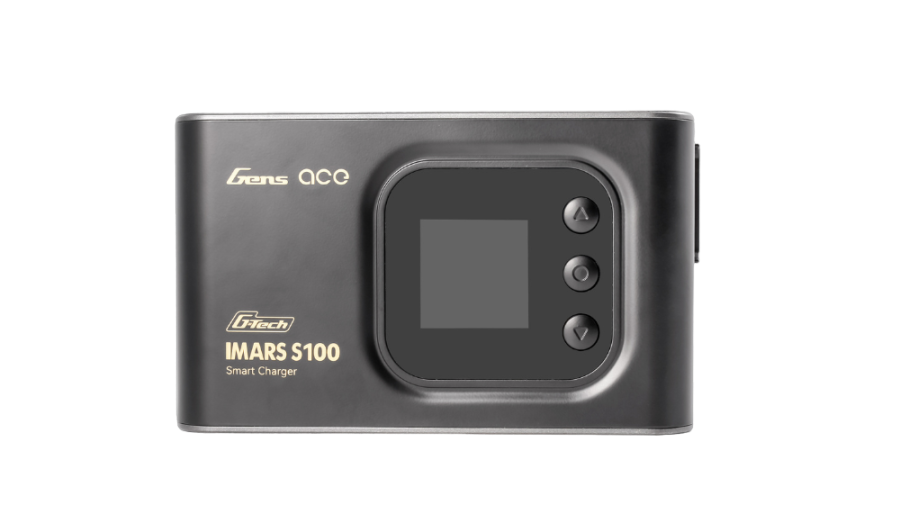

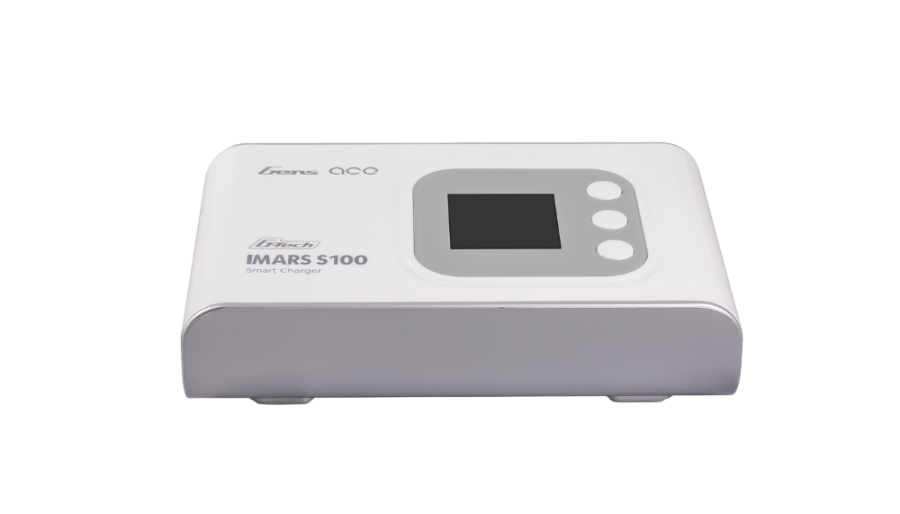

The iMars S100, the latest innovation from Gens Ace, one of the smart RC chargers with G-Tech. It is suitable for 2-6S LiPo/LiHv/Li-ion/LiFe batteries, or NiMh batteries. As a compact and smart charger, iMars S100 with a 100W max output power, boasts tactile mechanical Keys, a unified UI for easy navigation, data recording for battery health monitoring, and automatic G-Tech battery type recognition with optimal settings recommendation.
● Powerful Charging:
Delivers up to 100W of charging power.
● Plug and Play:
Easy to use with a built-in power supply.
● Automatic Recognition:
Automatically detects G-Tech battery parameters for hassle-free charging.
● Data Recording and Storage:
Keeps track of battery data for a comprehensive understanding of battery health and status.
● Compact and User-Friendly Design:
Lightweight and easy to handle, with a clear display for easy monitoring.
Model: iMars S100
LCD Display: 1.5 inch TFT
Dimensions: 139.8x83x40mm
Weight: About 260±3g
Input Voltage: AC100-240V
Input Current: 50~60Hz~1.5A
Output Voltage: DC 27V(Max.)
Charge Current: 10A(Max.)
Channel: Single
Balance Charge Current: 0.4A/Cell max
Charge Power: 100W(Max.)
LiPo/Li-Ion/LiHv/LiFe: 2~6S
NiMh: 4~18S
Discharge Power: 5W(Max.)
Input Port: AC
Operating Temperature.: 0~35℃
Functions: Charge/Discharge/Storage/Balance
NO. | Battery Type | Cell Count |
01 | 2S-6S Lipo/LiHv | |
02 | 2S-6S Lipo | |
03 | 2S-6S Lipo/LiHv | |
04 | 2S-4S Lipo | |
05 | 2S-6S Lipo | |
06 | 2S-6S Lipo |
