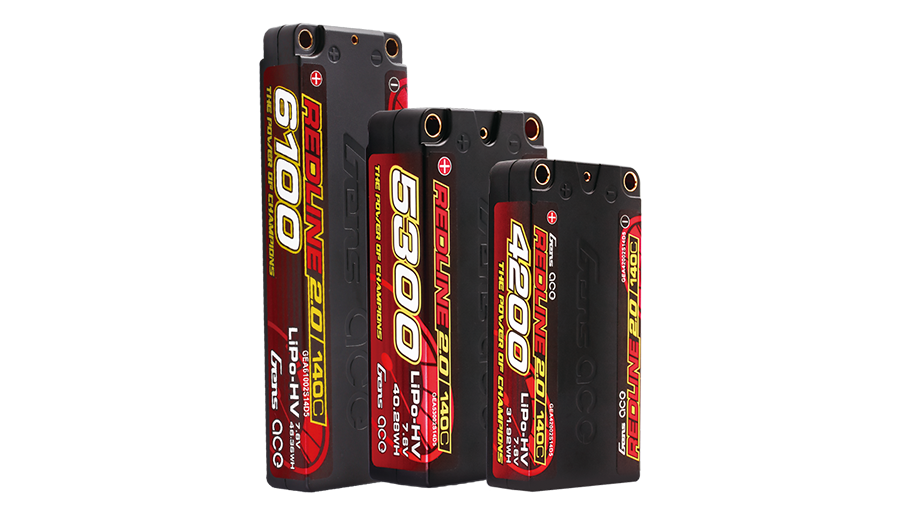

REDLINE 2.0 SERIES batteries still adopt the stacking cell process and advanced
automated production, with low resistance and high charging/discharging
efficiency!
● 140C ultra-high discharge rate, providing enough explosive power
● Hard shell appearance, anti-collision deformation, better protection of the battery
● Varieties in capacity (4200-9600mAh) and volt suitable for different car models
● High energy density, the use of lihv battery cells (3.8V/4.3V)
● Certification: IFMAR / EFRA / BRCA / ROAR
Battery Model | Voltage | Capacity | C- | Dischargec | Dimensions | Net Weight (±10g) | Compatible |
GEA42002S14D5 | 7.6V | 4200mAh | 140C | 5.0mm bullet | 96*47*18.5 | 157g | 1/10 Modify |
GEA50002S14D5 | 7.4V | 5000mAh | 140C | 5.0mm bullet | 139*47*18.5 | 224g | 1/10 Stock On Road |
GEA53002S14D5 | 7.6V | 5300mAh | 140C | 5.0mm bullet | 96*47*25 | 199g | 1/10 Stock and 1/10 Modify |
GEA60002S14D5 | 7.6V | 6000mAh | 140C | 5.0mm bullet | 96*47*25 | 220g | 1/10 Stock and 1/10 Modify |
GEA60004S14S | 15.2V | 6000mAh | 140C | 5.0mm bullet | 98*47*47 | 410g | All 1/8 cars |
GEA61002S14D5 | 7.6V | 6100mAh | 140C | 5.0mm bullet | 139*47*18.5 | 226g | 1/10 Stock and 1/10 Modify On Road, Off Road |
GEA63004S14D5 | 15.2V | 6300mAh | 140C | 5.0mm bullet | 139*47*37 | 452g | All 1/8 cars |
GEA65002S14D5 | 7.6V | 6500mAh | 140C | 5.0mm bullet | 139*47*22.5 | 264g | 1/10 Modify On Road |
GEA80001S14D5 | 3.8V | 8000mAh | 140C | 5.0mm bullet | 93*47*18.5 | 146g | 1/12 Stock and |
GEA85002S14D5 | 7.6V | 8500mAh | 140C | 5.0mm bullet | 139*47*25 | 302g | All 1/10 and 1/8 |
GEA96002S14D5 | 7.6V | 9600mAh | 140C | 5.0mm bullet | 139*47*25 | 324g | All 1/10 and 1/8 |
▎Resource Download
RedLine 2.0 Series Battery List
Do you need a custom size or shape battery to complete your product?
At Grepow our technical team is ready to provide you with a customized solution to meet your battery power requirements.
Grepow manufactures several different battery chemistries including: nickel metal hydride(NiMH), lithium iron phosphate(LFP) and lithium polymer(Lipo)
1) single cell batteries manufactured in custom sizes and shapes;
2) custom single cell batteries with a wiring harness, connector and label;
3) custom single cell batteries with a wiring harness, connector, circuit protection board, hardcase, development of customized packaging, and product specific special technology such as a battery management system ( BMS );
4) custom battery packs designed to fit your application.
We have more than 200 engineers and supporting technical staff to create a solution for you. Our research and development team will bring your battery power requirements to life using our cutting-edge technology equipment and processes. Currently we are the only battery manufacturer in China that can research, develop independently and manufacture NiMH, LiPo and LiFePO4 batteries at the same time.
▶Source manufacturer, physical factory, strong R&D production capacity, short delivery time and sufficient stock.
▶Self-developed high rate lithium battery cells, sufficient capacity, refusal of false label, guaranteed capacity.
▶Strict quality control: construct a full range of quality system from parts to finished products to ensure product quality
▶Safe and reliable in line with a variety of domestic and international battery certification
▶Perfect service system: quick response to customer problems and provide solutions
▶Provide local instant customer support in China, USA and Germany
