4" FPV Drone

4" FPV Drone

The 4-inch FPV drone is compact and agile, with a diagonal motor-to-motor distance of around 160mm. It's prized for its speed, durability, and customization options, making it ideal for racing, freestyle flying, and aerial photography. Battery-wise, 4-inch FPV drones typically use 4S or 6S batteries with capacities ranging from 1000mAh to 1400mAh and high discharge rates. As a leading FPV drone battery manufacturer, Grepow offers batteries tailored for 4-inch FPV drones, ensuring optimal performance and reliability.

Grepow FPV Drone Battery Features

High capacity retention rate

40C continuous discharge, the median voltage of ≥ 3.58V,

capacity retention rate >97%

Adopt advanced manufacturing process

Enhanced anti-drop performance by process improvement

 Long cycle life

35C discharge, cycle life >300 weeks

● Ultra-high discharge rate

Continuous discharge rate of 40C or more, instantaneous discharge rate of 150C or more

Support fast charging

5C fast charging, full charge only takes 25min


  • Battery for 4" Racing FPV Drone

  • Battery for 4" Freestyle FPV Drone

  • Battery for 4" Long Range FPV Drone

  • Battery for 4

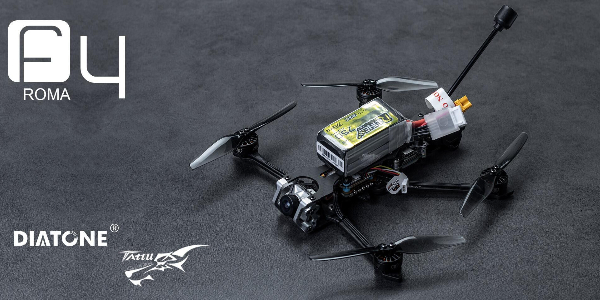

    A 4-inch racing FPV drone is designed for speed, agility, and durability, perfect for competitive racing with its lightweight frame, high-powered motors, and responsive flight controllers. These drones excel at reaching high speeds and performing quick maneuvers, crucial for navigating race courses with precision. For optimal racing performance, a 4-inch FPV drone needs high C-rating (>= 80C), 4S (14.8V) voltage, and lightweight (<= 150g) batteries. Grepow offers standard and customized 4S batteries ranging from 650mAh to 1300mAh with high discharge rates, ideal for 4-inch FPV drone racing.

    Grepow Tattu 4" Racing FPV Drone Battery Solutions

    Battery Model

    Capacity

    Voltage

    Configuration

    C Rate

    Discharge Plug

    Package

    Size (L*W*H)

    Weight

    TA-75C-850-4S1P-XT60

    850mAh

    14.8V

    4S1P

    75C

    XT60

    Soft Pack

    61x30x31mm

    109g

    TA-75C-1050-4S1P-XT60

    1050mAh

    14.8V

    4S1P

    75C

    XT60

    Soft Pack

    71x36x26mm

    125g

    TA-RL-95C-850-4S1P-XT60

    850mAh

    14.8V

    4S1P

    95C

    XT60

    Soft Pack

    61x31x31mm

    105g

    TA-RL-130C-1050-4S1P

    1050mAh

    14.8V

    4S1P

    130C

    XT60

    Soft Pack

    73x38x19mm

    128g

    TA-RL-95C-650-6S1P-XT30

    650mAh

    22.2V

    6S1P

    95C

    XT30

    Soft Pack

    60x31x35mm

    115g

    TA-RL4-130C-850-4S1P

    850mAh

    14.8V

    4S1P

    130C

    XT60

    Soft Pack

    58x29x30mm

    102g

    TA-RL4-130C-1300-4S1P

    1300mAh

    14.8V

    4S1P

    130C

    XT60

    Soft Pack

    76x38x25mm

    143g

    *Grepow offers customizable FPV drone battery solutions to meet the needs of various sizes and applications of FPV drones. Battery capacities range from 270mAh to 9000mAh, discharge rates range from 25C to 150C, and there are series options from 1S to 6S, as well as different discharge plugs, sizes, and packages. All batteries meet industry standards.

  • Battery for 4

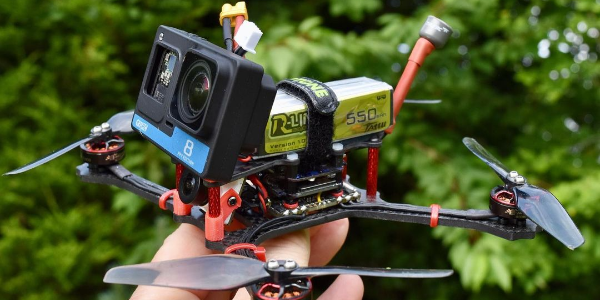

    The 4-inch freestyle FPV drone is designed for agility, acrobatics, and creativity in flight. It typically features a robust frame, often made of carbon fiber, to withstand the stresses of high-speed maneuvers and occasional crashes. The motors are powerful, providing a quick response to throttle inputs for dynamic flight maneuvers such as flips, rolls, and dives. For optimal performance in 4-inch FPV drone freestyle, a battery with high discharge rate of at least 100C is recommended to handle the high current demands of aggressive maneuvers. Capacity should be around 1000mAh for a balance of flight time and weight. A 4S (14.8V) configuration provides a good balance of power and efficiency. Grepow offers standard and customized high-rate batteries that perfectly meet the needs of 4-inch FPV drone freestyle.

    Grepow Tattu 4" Freestyle FPV Drone Battery Solutions

    Battery Model

    Capacity

    Voltage

    Configuration

    C Rate

    Discharge Plug

    Package

    Size (L*W*H)

    Weight

    TA-RL-95C-1050-6S1P

    1050mAh

    22.2V

    6S1P

    95C

    XT60

    Soft Pack

    75x36x37mm

    170g

    TA-RL3-120C-1050-6S1P

    1050mAh

    22.2V

    6S1P

    120C

    XT60

    Soft Pack

    76x40x37mm

    200g

    TA-RL3-120C-1400-6S1P

    1400mAh

    22.2V

    6S1P

    120C

    XT60

    Soft Pack

    78x39x49mm

    230g

    TA-RL4-130C-1050-6S1P

    1050mAh

    22.2V

    6S1P

    130C

    XT60

    Soft Pack

    78x40x34mm

    180g

    TA-RL4-130C-1400-6S1P

    1400mAh

    22.2V

    6S1P

    130C

    XT60

    Soft Pack

    78x39x42mm

    225g

    TA-RL5-150C-1400-6S1P-XT60

    1400mAh

    22.2V

    6S1P

    150C

    XT60

    Soft Pack

    78x38x40mm

    223g

    *Grepow offers customizable FPV drone battery solutions to meet the needs of various sizes and applications of FPV drones. Battery capacities range from 270mAh to 9000mAh, discharge rates range from 25C to 150C, and there are series options from 1S to 6S, as well as different discharge plugs, sizes, and packages. All batteries meet industry standards.

  • Battery for 4

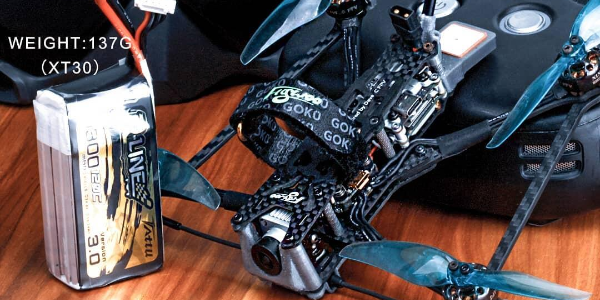

    The 4-inch long-range FPV drone is ideal for exploring vast areas, capturing scenic aerial footage, and engaging in endurance flights with precise control and agility. For long-range applications with 4-inch FPV drones, the recommended battery parameters include a high discharge rate, such as 80C or higher, to provide ample power for extended flights. A capacity of around 1300-1500mAh strikes a good balance between flight time and weight, crucial for efficiency and endurance. A 4S (14.8V) configuration is commonly used for the right balance of power and efficiency. Grepow offers a range of batteries for long-range 4-inch FPV drones, including high-capacity options for extended flight times, high-discharge rate batteries for ample power, and lightweight designs for optimal performance and endurance.

    Grepow Tattu 4" Long Range FPV Drone Battery Solutions

    Battery Model

    Capacity

    Voltage

    Configuration

    C Rate

    Discharge Plug

    Package

    Size (L*W*H)

    Weight

    TA-75C-650-4S1P-XT30

    650mAh

    14.8V

    4S1P

    75C

    XT30

    Soft Pack

    60x31x21mm

    74g

    TA-75C-850-4S1P-XT30

    850mAh

    14.8V

    4S1P

    75C

    XT30

    Soft Pack

    61x30x31mm

    109g

    TA-RL-95C-650-4S1P-XT30

    650mAh

    14.8V

    4S1P

    95C

    XT30

    Soft Pack

    61x31x25mm

    82g

    TA-RL-95C-750-4S1P-XT30

    750mAh

    14.8V

    4S1P

    95C

    XT30

    Soft Pack

    60x31x28mm

    82g

    TA-RL-95C-850-4S1P-XT30

    850mAh

    14.8V

    4S1P

    95C

    XT30

    Soft Pack

    61x31x31mm

    105g

    TA-RL-95C-1050-4S1P

    1050mAh

    14.8V

    4S1P

    95C

    XT60

    Soft Pack

    72.5x35.5x24.5mm

    119.5g

    TA-RL3-120C-1300-4S1P

    1300mAh

    14.8V

    4S1P

    120C

    XT60

    Soft Pack

    78x38x27mm

    148g

    TA-FF13004SP

    1300mAh

    22.2V

    4S1P

    /

    XT60

    Soft Pack

    73x35x28mm

    149g

    B-60C-3000-6S1P

    3000mAh

    22.2V

    6S1P

    60C

    EC5

    Soft Pack

    140x43x39mm

    496g

    *Grepow offers customizable FPV drone battery solutions to meet the needs of various sizes and applications of FPV drones. Battery capacities range from 270mAh to 9000mAh, discharge rates range from 25C to 150C, and there are series options from 1S to 6S, as well as different discharge plugs, sizes, and packages. All batteries meet industry standards.
