Gens ace, our dedicated RC battery brand, specializes in designing and manufacturing high-discharge LiPo battery packs for RC cars, boats, aircraft, and a wide range of hobby applications. The iMars D300 Plus belongs to our professional LiPo charger series built for RC players, and it supports OEM/ODM customization to meet the needs of brands, resellers, and system integrators in the RC market.
1. Electrical Performance
Item | Specification |
Channels | 2 Independent Outputs |
AC Input Voltage | 100–240V |
DC Input Voltage | 7-30V |
Max. DC Input Current | 34A |
Output Voltage Range | DC 1~30V |
| Max. Charging Power | AC: 300W (Smart Allocation) / DC: 2 × 350W |
Charging Current | 0.1–16A ×2 |
Discharge Current | 0.1~3A ×2 |
Max. Discharge Current | 15W ×2 (Main Port 6W ×2, Balance Port 9W ×2) |
Balance Current | Max. 1.2A/cell ×2 |
Balance Cells | 2–6S |
2. Battery Compatibility
Battery Type | Supported Range |
LiPo / Li-ion / LiHV / LiFe | 1–6S |
NiMH | 1–16S |
3. Mechanical
Item | Specification |
Display | 2.4-inch IPS LCD |
Dimensions | 145 × 76 × 62 mm |
Net Weight | Approx. 530 g |

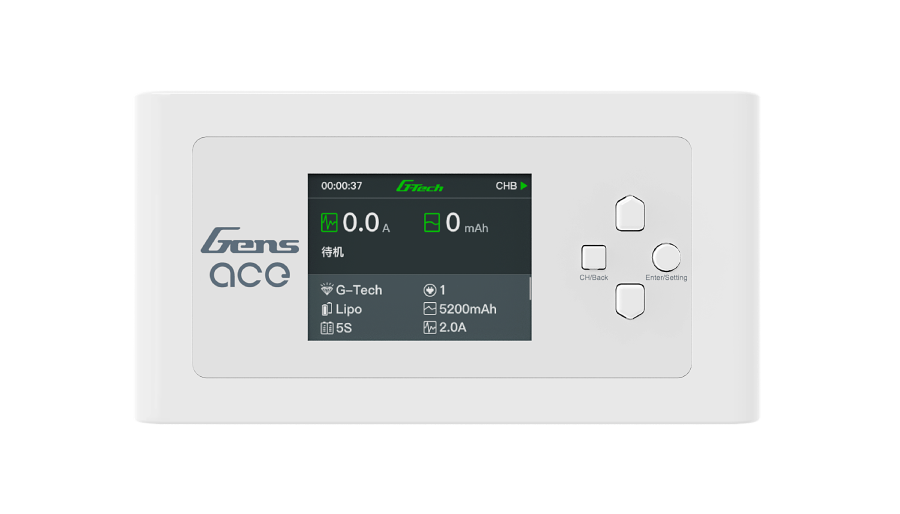

● Menu navigation uses the easy four-button control interface and bright LCD screen.
● Charges up to 16 NiMh cells or 6S Lithium batteries (including LiPo/LiFe/LiHV)
● High power charging, capable of Max 16 amp charge rates for one channel, worldwide 100V-240V voltage versatility, AC 300 Watts, DC 700 Watts.
● FCC, CE, RoHS Certification Approved
** Gens ace is the sub-brand of Grepow
PFC
● Maximizing Efficiency with Inherent Power Factor Correction
BUILT-IN SMART COOLING FAN
●Easier Heat Dissipation
AC to DC Design
●Improving Overall Performance
iMars D300 Plus the Smart RC Charger User Guide
iMars D300 Plus Firmware Upgrade Package
No. | Battery Type | Cell Count |
01 | 1S~6S LiPo/Li-ion/LiHV | |
| 02 | 2~4S LiPo | |
| 03 | Lipo/LiHv(2~4S) | |
| 04 | Lipo (2~6S) | |
| 05 | Lipo/LiHv(2~6S) | |
| 06 | Lipo(2~3S) | |
| 07 | Lipo/LiHv/LiFe(2~6S) | |
| 08 | Lipo/LiHv/LiFe(1~6S) | |
| 09 | Lipo/LiHv/LiFe(1~2S) | |
| 10 | Lipo/LiHv/LiFe(1~6S), NiMH(1~16S) |
