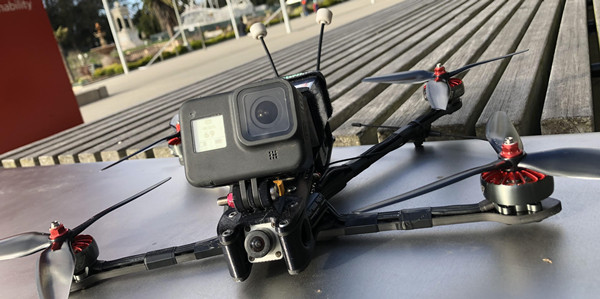

The wheelbase of the 7" fpv drone is about 300mm. It is a relatively large quadcopter, and of course there are X8 models. The flight mode of this size drone is mainly racing and long range, which means the performance requirement of the battery is higher. Usually it is equipped with 6S battery cells with a capacity of 1800mah or more, the capacity and discharge rate depends on how the pilot is using it, whether it is for freestyle flying, racing, photography, or whatever.
● High capacity retention rate 40C continuous discharge, the median voltage of ≥ 3.58V, capacity retention rate ＞97% ● Adopt advanced manufacturing process Enhanced anti-drop performance by process improvement ● Long cycle life 35C discharge, cycle life ＞300 weeks | ● Ultra-high discharge rate Continuous discharge rate of 40C or more, instantaneous discharge rate of 150C or more ● Support fast charging 5C fast charging, full charge only takes 25min |
Battery for 7" FPV Drone
Battery for 7.5" FPV Drone
The 7" FPV drone frame requires thicker carbon fiber plates to achieve sufficient stiffness and rigidity compared to a 5" machine. It also needs to be equipped with larger motors, whose stator diameter is usually ≥24mm, with a rpm of 1000-1900KV, as 7-inch propellers are heavier and harder to rotate. In terms of power supply, 6S cell (22.2V) is more common. Grepow, as a 25 years electric cell manufacturer, has rich experience in lipo battery packs, especially high rate cells. For this model of drone, Grepow offers standard or customized battery packs (with connectors); with capacities ranging from 1800mAh to 7000mAh and discharge multipliers of 25C or higher. These LiPo batteries meet the needs of 7-inch FPV drones for pilot or professional needs, ensuring satisfactory performance and long endurance capabilities.
Battery Model | Capacity | Voltage | Configuration | Discharge | Connector | Package | Dimensions | Weight |
B-45C-1800-6S1P-XT60 | 1800mAh | 22.2V | 6S1P | 45C | XT60 | Soft Pack | 108x34x42mm | 321g |
B-60C-3000-6S1P | 3000mAh | 22.2V | 6S1P | 60C | EC5 | Soft Pack | 140x43x39mm | 496g |
B-45C-6000-6S1P | 6000mAh | 22.2V | 6S1P | 45C | EC5 | Soft Pack | 150x46x55mm | 802g |
GA-B-60C-3300-6S1P-EC5 | 3300mAh | 22.2V | 6S1P | 60C | EC5 | Soft Pack | 138x42x43mm | 506g |
GA-B-60C-6750-4S1P-TRX-XT60-P | 6750mAh | 14.8V | 4S1P | 60C | XT60 | Soft Pack | 183x50x35mm | 638g |
GA-B-120C-6800-4S1P-EC5-GT | 6800mAh | 14.8V | 4S1P | 120C | EC5 | Soft Pack+PC | 159x47x42mm | 673g |
TA-25C-6750-4S1P | 6750mAh | 14.8V | 4S1P | 25C | XT90 | Soft Pack | 139x47x50mm | 620g |
*Grepow offers customizable FPV drone battery solutions to meet the needs of various sizes and applications of FPV drones. Battery capacities range from 270mAh to 9000mAh, discharge rates range from 25C to 150C, and there are series options from 1S to 6S, as well as different discharge plugs, sizes, and packages. All batteries meet industry standards.

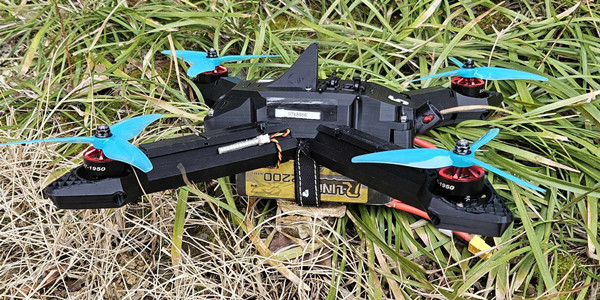

The 7.5-inch FPV Drone is a rugged and powerful aerial platform that can handle heavier payloads and longer flight times than its smaller counterparts. The larger size allows for stability in windy conditions and more spacious equipment mounting options, making it a popular choice for aerial photography and long-distance exploration.Equipped with a high-capacity battery and a highly efficient propulsion system, the 7.5-inch FPV drone offers extended flight time and impressive maneuverability, catering to both recreational flying enthusiasts and professional filmmakers alike.Grepow, as the an experienced manufacturer of batteries, especially high-rate batteries, as well as a supplier of battery solutions for drones. For this size drone, Grepow offers standardized or customized lipo battery packs (with connectors); with capacities ranging from 3,000mAh to 7,000mAh and discharge C-Rate of 25C or higher. These lipo batteries meet the needs of players or professionals of 7.5-inch FPV drones, ensuring satisfactory performance and long endurance capabilities.
Battery Model | Capacity | Voltage | Configuration | Discharge | Connector | Package | Dimensions | Weight |
TA-95C-4500-6S1P-AS150 | 4500mAh | 22.2V | 6S1P | 95C | AS150+AS150 | Soft Pack | 150x49x44mm | 685g |
TA-RL-95C-5100-6S1P | 5100mAh | 22.2V | 6S1P | 95C | AS150+AS150 | Soft Pack | 150x50x55mm | 868g |
B-60C-3700-6S1P | 3700mAh | 22.2V | 6S1P | 60C | EC5 | Soft Pack | 137x42x47mm | 606g |
B-60C-4000-6S1P | 4000mAh | 22.2V | 6S1P | 60C | EC5 | Soft Pack | 136x42x53mm | 671g |
GA-B-60C-5000-6S1P-EC5 | 5000mAh | 22.2V | 6S1P | 60C | EC5 | Soft Pack | 165x45x47mm | 755g |
GA-B-80C-5100-6S1P-EC5 | 5100mAh | 22.2V | 6S1P | 80C | EC5 | Soft Pack | 149x50x52mm | 760g |
B-45C-5500-6S1P | 5500mAh | 22.2V | 6S1P | 45C | EC5 | Soft Pack | 158x45x54mm | 800g |
GA-B-80C-5600-6S1P-EC5 | 5600mAh | 22.2V | 6S1P | 80C | EC5 | Soft Pack | 149x50x52mm | 800g |
TA-25C-4500-6S1P-XT60 | 4500mAh | 22.2V | 6S1P | 25C | XT60 | Soft Pack | 137x42x50mm | 670g |
TA-35C-6000-6S1P-XT60 | 6000mAh | 22.2V | 6S1P | 25C | XT60 | Soft Pack | 148x45x59mm | 885g |
*Grepow offers customizable FPV drone battery solutions to meet the needs of various sizes and applications of FPV drones. Battery capacities range from 270mAh to 9000mAh, discharge rates range from 25C to 150C, and there are series options from 1S to 6S, as well as different discharge plugs, sizes, and packages. All batteries meet industry standards.
