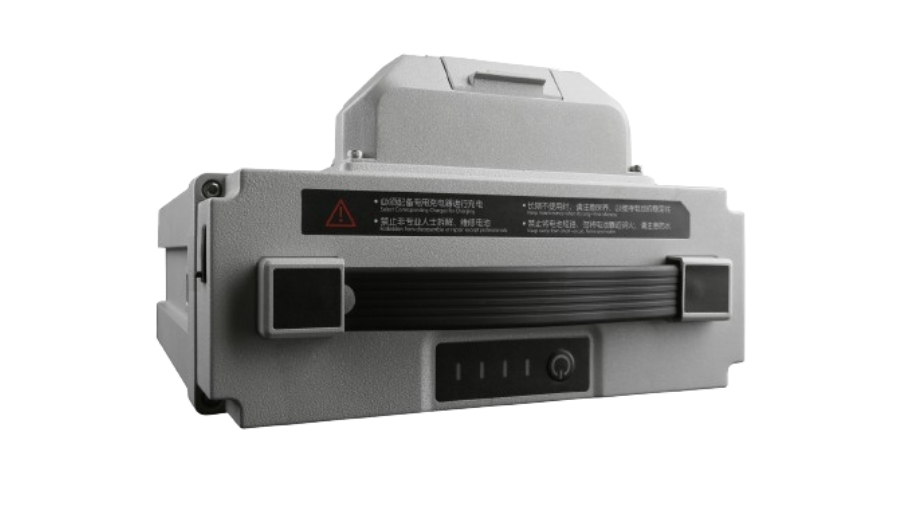

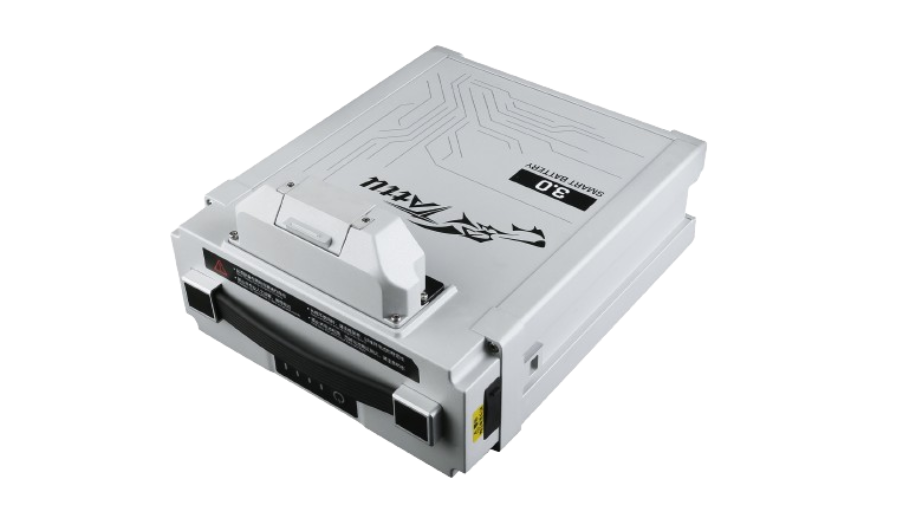

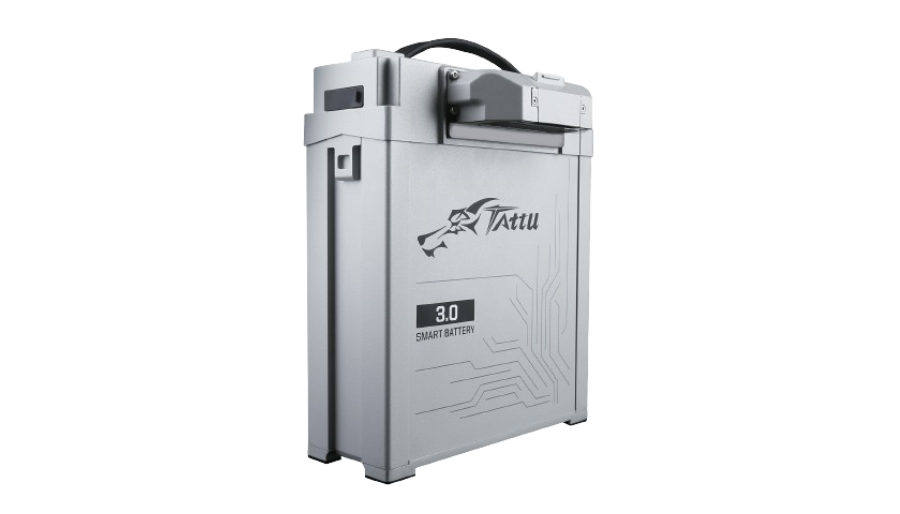

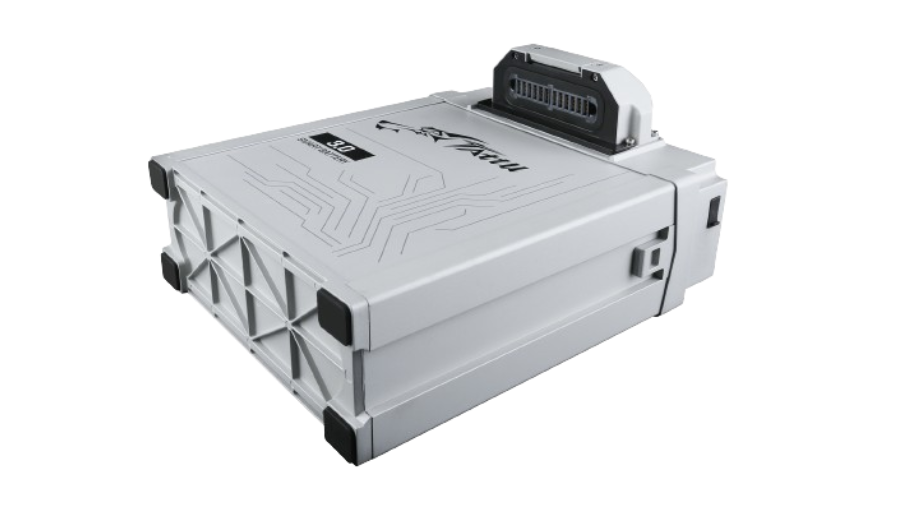

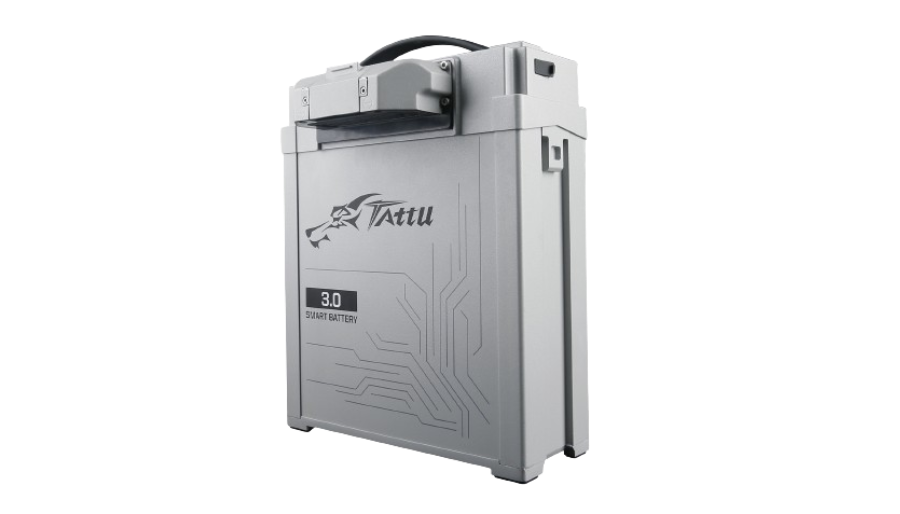

The Tattu 3.0 14S 22000mAh 53.2V battery is a new generation smart drone battery with optimized plug & play installation, supports 3C fast charging and max 150A continuous current, and the lifespan can be more than 600 cycles. It has a unique design, sluminum housing heat-dissipation, sealed waterproof, smart external anti-spark device, portable smart checker, drawer slides design and LED indicator.
●Minimum Capacity: 22000mAh
●Configuration:14S1P
●Nominal Voltage: 53.2V
●Power: 1170.4 Wh
●Net Weight(±100g): 7950 g
●Dimensions: 290mm Length x 236 mm Width x 91 mm Height
●Discharge Plug: Molex
●Max Continuous Discharge Current: 150A
●Peak Discharge Current: 260A ≤3S
●Operation Temperature: -20 - 60℃
●Discharge Temperature: -20~0℃ ≤0.2C,0~10℃ ≤6.5C,10~60℃ ≤6.5C.
Tattu 3.0 Series Lipo Smart Drone Battery User Guide
The TATTU 3.0 is suitable for multiple commercial professional drone systems. There are many smart features, which include data collection, safety reminder, power calculation, automatic balancing,charging reminder, abnormal-status alarm, data transmission and more.
●Police drones
●Delivery drone
●Inspection drone
●Photography drones
●Construction drone
●Mining drones
●Tattu TA3200 drone battery charger for 6S-14S pouch cell / smart batteries.
●Tattu TA7200 drone battery charger for 12S/14S smart batteries.
●Tattu TA9000 drone battery charger for 12S-22S smart batteries.
●Tattu TA9000 Pro drone battery charger for 12S-18S smart batteries.
Discover more UAV / Drone Chargers: Lipo Battery Charger
