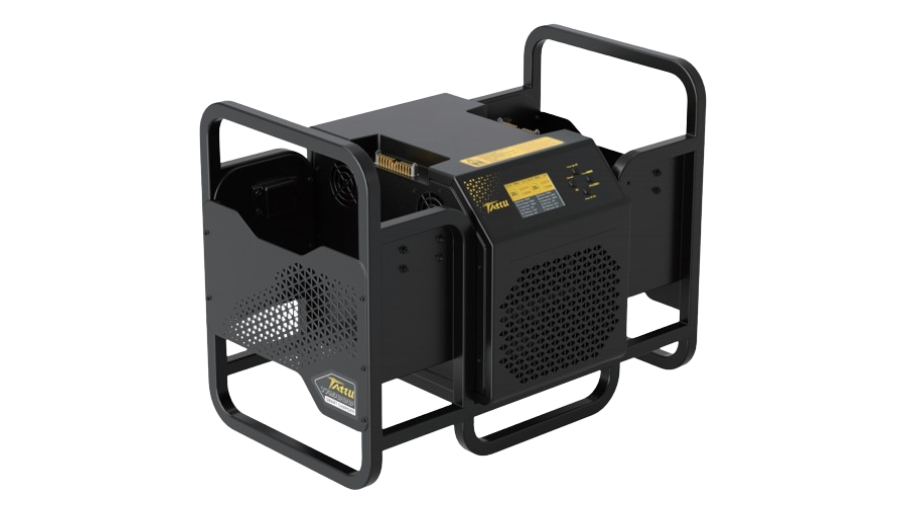

TA9000 is a dual-channel intelligent charger that supports multiple input methods, with safety protection functions such as over-voltage, voltage limit, overheat, current limit, short-circuit and reverse connection protection etc. Once the TATTU intelligent drone battery is successfully inserted into the charger for communication, the charger can automatically read the battery information and enter into intelligent charging without any operation. During the charging process, the charger will adjust the charging current according to the real-time status of the battery to ensure charging safety. Customized service is available.
● 120A Fast Charging
● Plug and Charge
● Real Time Monitoring
● Efficient Heat Dissipation
Input Voltage | AC 100-240V 50/60Hz | Input Current | AC<50A |
Output Voltage | Compatible with 380VAC input | Battery Types | LiPo/LiHV,12-22S |
Charge Power | 35-90V | Charge Current | MAX 120A |
Working Temperature | 0-40°C | Storage Temperature | -20~60℃ |
Size | 583*412*435mm | Weight | About 23kg |
TA9000 12-22S Smart Drone Battery Charger User Guide
No. | Battery Model | Dimension(±5mm) | Weight(±100g) |
1 | 324x127x274mm | 13800g |
