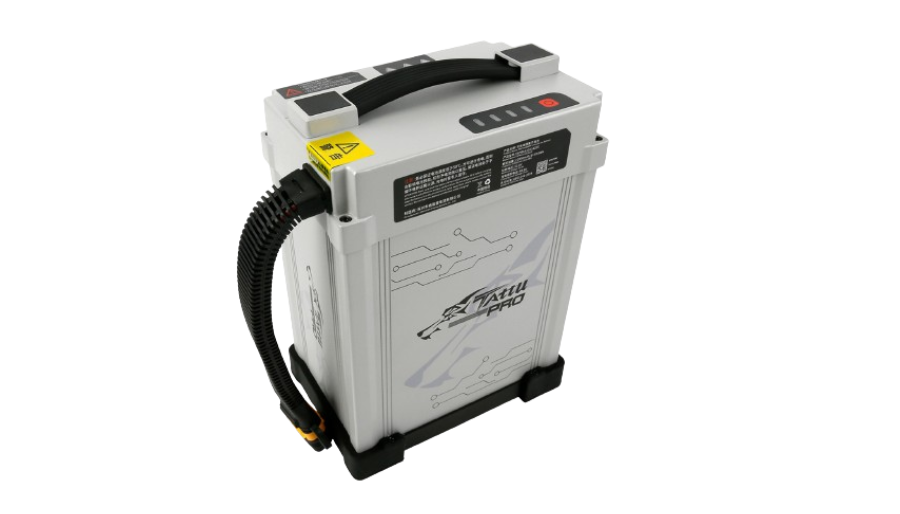

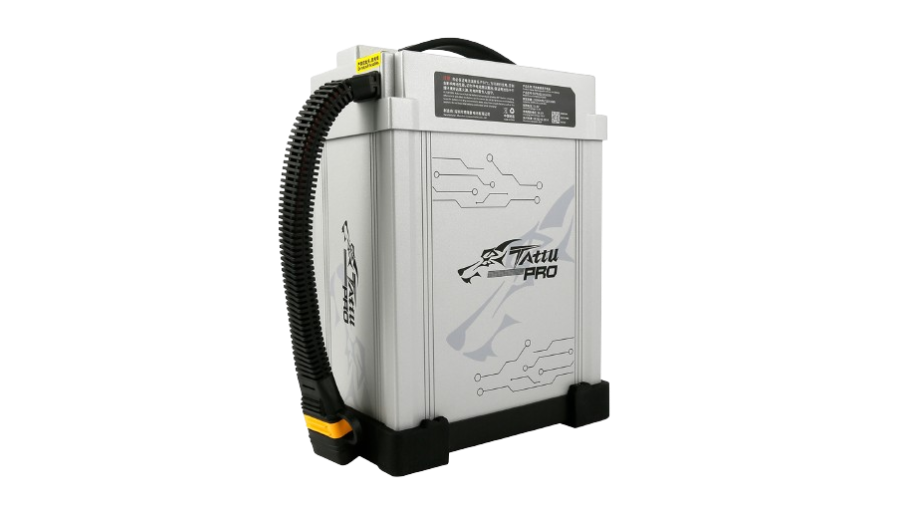

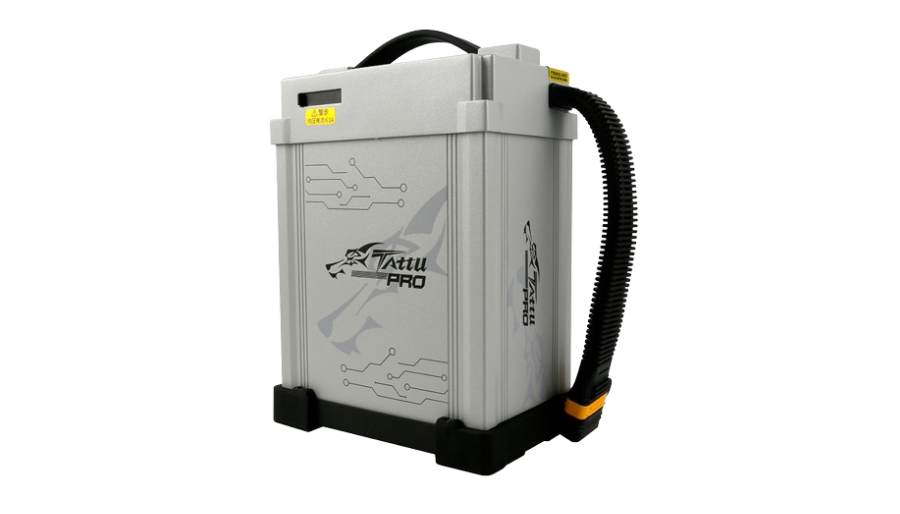

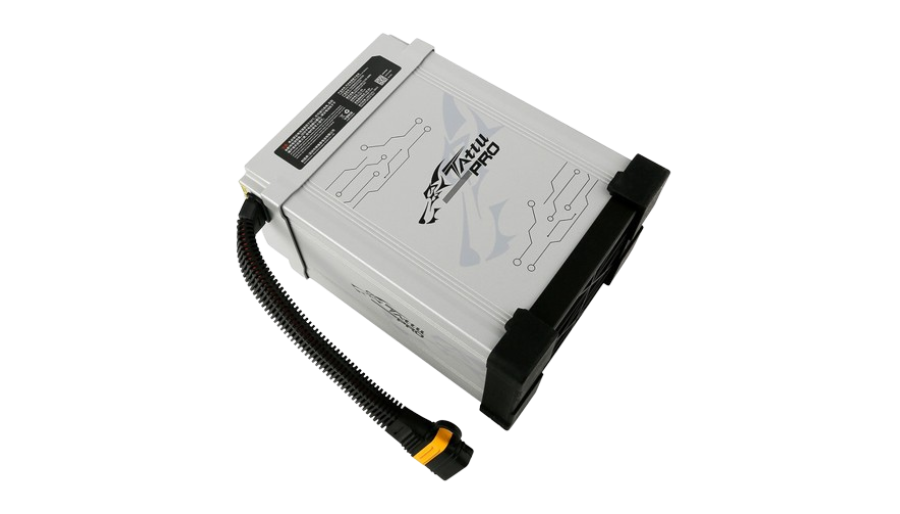

TATTU Pro 14S 22000mAh 53.2V LiHV lipo drone battery integrates a high-precision BMS, and provides comprehensive safety features, including DroneCAN protocol accessible, SOC indication, fault self-diagnosis function, self-balancing, smart storage, automatic charging current adjustment etc. Externally Aluminum hard case protects inside cells from corrosion and hit. Internally, the cells adopt NMC HV chemistry, which is characterized by high energy density.
●Minimum Capacity: 22000mAh
●Configuration: 14S1P / 53.2V / 14 Cells
●Nominal Voltage: 53.2V
●Power: 1170.4Wh
●Net Weight(±200g)：6550g
●Dimensions:226mm length x 166.5mm width x 110mm Height
●Discharge Plug: AS150U-F
●Operation Temperature: -20 - 60℃
●Max Continuous Discharge Current: 100A
●Peak Discharge Current: 150A
●Charge Temperature: 10~20℃;≤0.5C, 20-30℃ ;≤2C 30-60℃ ≤5C
●Discharge Temperature: -20~0℃ ≤0.2C, 0-10℃ ≤0.5C, 10-60℃ ≤5C
The TATTU Pro is suitable for multiple commercial professional drone systems. There are many smart features, which include data collection, safety reminder, power calculation, automatic balancing,charging reminder, abnormal-status alarm, data transmission and more.
●Police drones
●Delivery drone
●Inspection drone
●Photography drones
●Construction drone
●Mining drones
●Tattu TA3200 drone battery charger for 6S-14S pouch cell / smart batteries.
●Tattu TA7200 drone battery charger for 12S/14S smart batteries.
●Tattu TA9000 drone battery charger for 12S-22S smart batteries.
●Tattu TA9000 Pro drone battery charger for 12S-18S smart batteries.
Discover more UAV / Drone Chargers: Lipo Battery Charger
