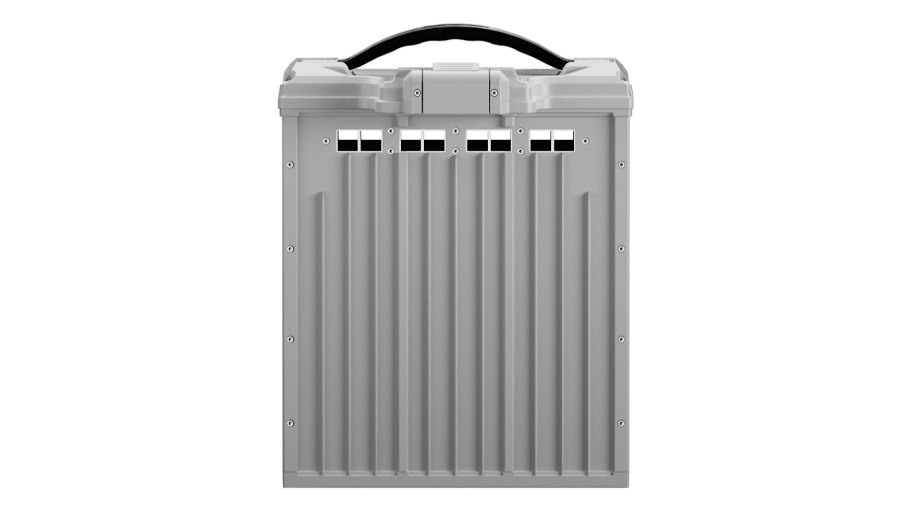

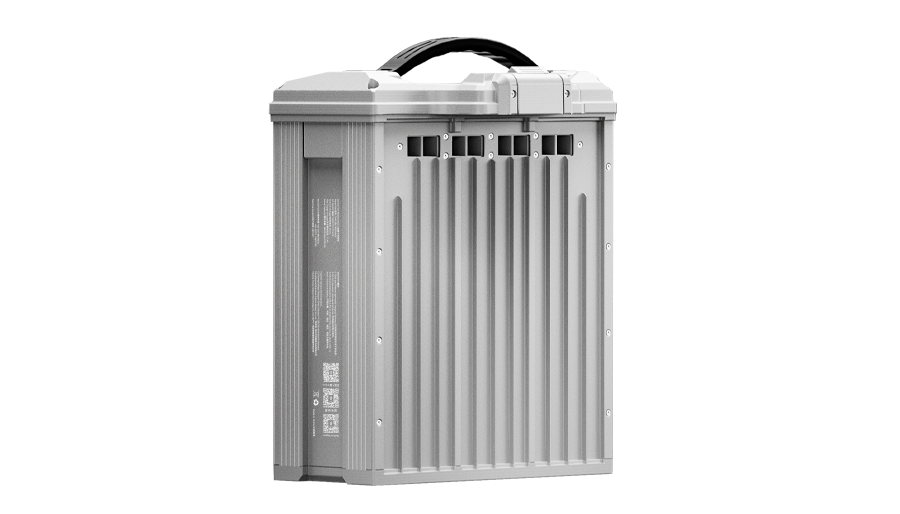

The Tattu 4.0 18S 35Ah 68.4V HV lipo battery is designed for high-performance UAVs and drones. It supports fast charging at 5C and features a built-in BMS battery management system for safety and stability. Additionally, it includes a MOS switch that offers enhanced protection, efficiency, and control by enabling overcurrent and undervoltage protection, smart charging, remote control, and improved energy efficiency in one package. Besides, customers can connect to the mobile app via Bluetooth to monitor the status of the battery to help better control the drone.
●Nominal Capacity: 35000mAh (35Ah)
●Nominal Voltage: 68.4V (3.8/cell)
●Energy: 2394 Wh
●Configuration: 18S1P
●Max Continuous Discharge Current: 270A
●Peak Discharge Current: 350A (≤ 3S)
●Weight: 16500±350g
●Dimensions: 371mm L x 127mm W x 274mm H
●Discharge Plug: ACES 59615-0149D001
●Communication Protocol: DroneCAN
●Plug-in Design 5C Fast Charging
●BMS Protection
●With MOS Module
●Bluetooth APP with SOH Checking
●Efficient Heat Dissipation Duct
●Ensure a Safe and Stable Flight
●Designed for MTOW 70-100kg heavy-payload drones
TATTU 4.0 18S Battery User Guide
Tattu 4.0 35000mAh HV 35C 68.4V 18S lipo battery is suitable for any agricultural spraying UAV, aerial photography UAV, cargo delivery drone, surveying and mapping aircraft, eVTOL, etc.
● Agricultural Spraying Drone Battery
● Mapping & Surveying Drone Battery
