Photography Drone Battery

Photography Drone Battery

Professional aerial photography and cinematography drones are advanced tools for aerial imaging and filmmaking. Unlike consumer drones, they require strong payload ability and feature stabilization and high-resolution cameras for top-quality imagery. Lightweight, high-capacity lithium batteries are vital for endurance in drone photography. Understanding high-quality compatible batteries maximizes flight performance.

Grepow Aerial Photography Drones Battery Solutions

The drones used for flying heavy-duty photography and video cameras must be equipped with the best components to achieve optimal performance. Leveraging years of experience in rechargeable battery development and production, Grepow utilizes high-performance lithium battery formulations to provide long endurance and high energy density battery solutions (smart batteries, soft pack batteries) for the professional advertising and film photography industry drones, ensuring efficient flight. Inditionally, there are intelligent charging management systems in place to achieve fast charging and ensure safety protection.

Aerial Photography Drones Battery Features

 2C~5C Fast Charging

 Easy to Plug

 Adapted to All Communication Protocols

● Anti-fire Function

 Health Self-check

 Low temperature self-heating, and high temperature resistance

 Abnormal Record

 Waterproof, Dustproof and Anti-corrosion

 History Information Storage

 Charge and Discharge Protection

 Communication Protection

 Intelligent Protection

  • Aerial Photography UAV Smart Battery

  • Aerial Photography UAV Soft Pack Battery

  • Aerial Photography UAV Battery Charger

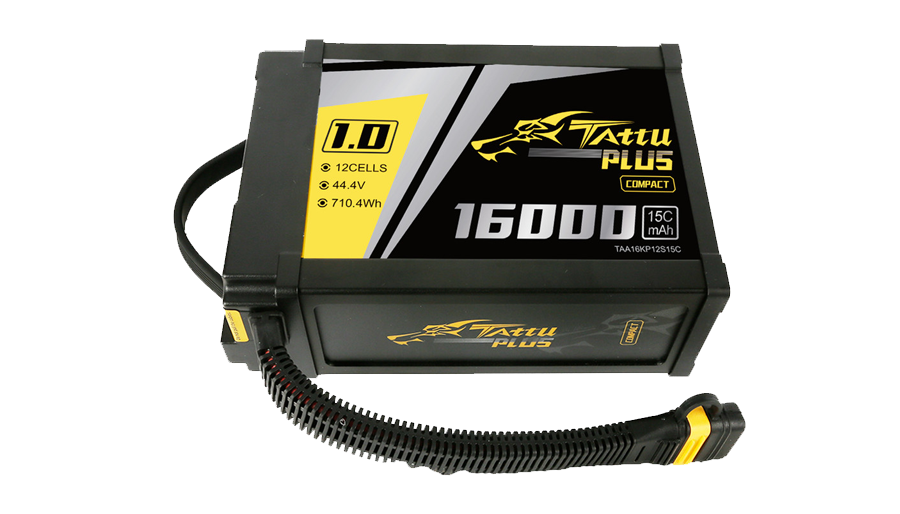

  • Tattu Plus 1.0 Aerial Photography UAV Lipo Smart Battery

    ● Upgraded Frame Structure Design

    ● Lightweight Characteristic

    ● DroneCAN Protocol Enables the Compatibility of Ardupilot/PX4

    ● Intelligent BMS Simplify the Operation

    ● Ideal for Heavy-lifting Aerial Photography Drones


    No.

    Battery Model

    Dimension(±5mm)

    Weight(±100g)

    1

    Tattu PLUS 1.0 Compact 15C 10000mAh 44.4V 12S1P

    152x82x220mm

    2800g

    2

    Tattu PLUS 1.0 Compact 15C 16000mAh 44.4V 12S1P

    224x163x90mm

    4250g

    3

    Tattu PLUS 1.0 25C 22000mAh 44.4V 12S1P

    235x172x116mm

    5800g


    *Grepow offers customizable UAV drone battery solutions to meet the needs of various sizes and applications. Battery capacities range from 4500mAh to 40000mAh, discharge rates range from 5C to 35C, low-temp working temperatures down to -50°C(-58℉), and there are series options from 3S to 22S, as well as different discharge plugs, sizes, and packages. All batteries meet industry standards. Click Customization to get more.

  • HIGH DISCHARGE RATE LIPO SOLUTION

    ● High Energy Density up to 210Wh/Kg

    ● Support 1C Charging Rate

    ● Safe Discharge to 3.6V/Cell

    ● Suit for Heavy Payload Multirotor Drone (Aerial Photoing, Agriculture, Inspection)


    No.

    Battery Model

    Dimension(±5mm)

    Weight(±100g)

    1

    Tattu 30C 16000mAh 22.2V 6S1P

    192x77x66mm

    2000g

    2

    Tattu 30C 22000mAh 22.2V 6S1P

    206x91x61mm

    2460g

    LCO LIHV BATTERY SOLUTION

    ● High Energy Density up to 240Wh/kg

    ● High Voltage 4.35V/Cell

    ● Support 1C Charging Rate

    ● Safe Discharge to 3.6V/Cell

    ● Suit for Long Endurance Photographying Mission


    No.

    Battery Model

    Dimension(±5mm)

    Weight(±100g)

    1

    Tattu 25C 11000mAh HV 22.8V 6S1P

    176x65x56mm

    1350g

    2

    Tattu 15C 17000mAh HV 22.8V 6S1P

    194x77x62mm

    1847g

    3

    Tattu 25C 23000mAh HV 22.8V 6S1P

    208x90x63mm

    2473g

    4

    Tattu 10C 25000mAh HV 22.8V 6S1P

    207x92x63mm

    2525g

    5

    Tattu 25C 32000mAh HV 22.8V 6S1P

    216x125x61mm

    3494g

    HIGH ENERGY DENSITY LIPO NMC SOLUTION

    ● Higher Energy Density: 320Wh/Kg

    ● Longer Cycle Life: 500+ to 90% initial capacity

    ● Working Time: 30%↑

    ● Customizable Shape/Size
    ● Lightweight: 15%↓


    No.

    Battery Model

    Dimension(±5mm)

    Weight(±20g)

    1

    NMC 20000mAh 22.2V 5C 6S1P

    192x76x58mm

    1820g

    2

    NMC 28000mAh 22.2V 5C 6S1P

    208x91.5x62mm

    2500g

    *Grepow offers customizable UAV drone battery solutions to meet the needs of various sizes and applications. Battery capacities range from 4500mAh to 40000mAh, discharge rates range from 5C to 35C, low-temp working temperatures down to -50°C(-58℉), and there are series options from 3S to 22S, as well as different discharge plugs, sizes, and packages. All batteries meet industry standards. Click Customization to get more.

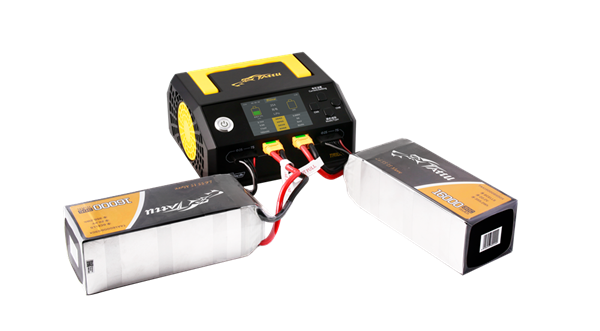

  • TA1000 1000W Dual-Channel 1-7S Drone UAV Battery Smart Charger

    TA1000 is a dual-channel lipo battery smart charger is lightweight, handy and intelligent designed for various 1-7S batteries charging. As a proud member of G-Tech Eco, this charger is tailored for G-Tech smart batteries while also being compatible with non-G-Tech batteries. When connected to a G-Tech battery, the TA1000 charger seamlessly identifies the battery type and voltage through the smart balance connector. It then automatically allocates the recommended 1C charging current specified by the battery manufacturer. For non-G-Tech batteries, users can manually select the battery type, charging current, and working mode.

    TA1000 1000W Dual-Channel 1-7S Drone Battery Smart Charger

    TA3200&TA3200HV 3200W Dual Channel 6-14S Photography UAV Battery Charger

    TA3200 is a dual-channel smart charger that can automatically identify TATTU smart battery information and achieve plug-and-charge without manual parameter setting. Besides, the charger is also compatible with non-intelligent soft pack batteries, and you only need to simply set the charging current and mode. It has functions such as over-temperature, over-current, overcharge and disconnection protection, and monitors the battery status in real time during charging. TA3200HV is a high-voltage version and supports high-voltage lithium battery charging to 4.35V.

    TA3200&TA3200HV 3200W Dual Channel 6-14S Agri UAV Smart Battery Charger
