Grepow 14S LiPo Battery Solutions

Grepow 14S LiPo Battery Solutions

Editorial:Grepow Issue Date:2024-05-14 Views:1088

In the realm of high-performance drones, power is paramount. Ensuring your aircraft is equipped with the right battery is not just a matter of flight time, but also of safety and reliability. Grepow, a leader in the drone battery industry, offers a range of cutting-edge solutions, including their 14s LiPo batteries, designed to deliver exceptional performance and durability for professional applications.


What is a 14s LiPo Battery?

A 14s LiPo (Lithium Polymer) battery is a type of rechargeable battery commonly used in drones and other high-power applications. The "14s" designation indicates the number of cells in series within the battery pack. Each cell has a nominal voltage of 3.7 volts, so a 14s LiPo battery has a nominal voltage of 51.8 volts (14 cells x 3.7 volts/cell).


What is the Voltage of 14s LiPo Batteries?

As mentioned, the nominal voltage of a 14s LiPo battery is 51.8 volts. However, it's important to note that the actual voltage can vary based on the state of charge. A fully charged 14s LiPo battery can have a voltage of around 58.8 volts, while a fully discharged battery can have a voltage as low as 42 volts. Grepow also offers high-voltage 14s LiPo batteries, with each individual cell having a voltage of 3.8V. Therefore, the nominal voltage of the battery pack is 53.2V (14 cells * 3.8 volts per cell), and the fully charged voltage reaches 60.9V.


How to Choose a 14s LiPo Battery Charger?

A 14s LiPo battery charger is a charger specifically designed for lithium polymer (LiPo) batteries that have 14 cells connected in series. Choosing the right charger for your 14s LiPo battery is crucial to ensure safe and efficient charging. Here are some key factors to consider:

  ◆Voltage and Cell Count: A 14s LiPo battery consists of 14 cells connected in series, with a nominal voltage of 51.8V (14 cells x 3.7V/cell). Make sure the charger is designed to handle the voltage of a 14s battery.

  ◆Charging Current: The charging current is typically measured in amps (A). Choose a charger that can deliver an appropriate charging current for your battery. It's recommended to charge LiPo batteries at a rate of 1C, which means the charging current should be equal to the battery's capacity in amp-hours (Ah). For example, a 14s 10Ah battery should be charged at 10A.

  ◆Charging Modes: Look for a charger that offers various charging modes, such as balance charging, fast charging, and storage mode. Balance charging is crucial for LiPo batteries to ensure that each cell is charged equally, which helps in maximizing battery life and performance.

  ◆Safety Features: Ensure that the charger has built-in safety features, such as overcharge protection, short circuit protection, and reverse polarity protection, to prevent damage to the battery and charger.

  ◆Display and Controls: A charger with a clear display and intuitive controls makes it easier to monitor the charging process and adjust settings as needed.

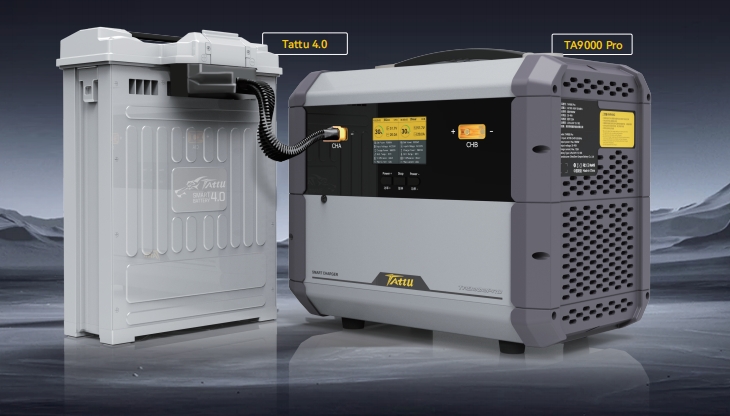

Grepow offers two high-efficiency 14s LiPo battery chargers. The TA7200 14s LiPo battery charger has a power rating of 7200W, while the TA9000 Pro 14s LiPo battery charger has a power rating of 9000W. Both chargers have a maximum charging current of 120A.

14s LiPo battery


14s Punch Cell LiPo Pack vs. 14s Smart BMS Battery Pack

Grepow offers two main types of 14s LiPo batteries: punch cell packs and smart BMS (Battery Management System) packs.

  ◆Punch Cell Packs: These are traditional LiPo packs without built-in BMS. They are designed for users who prefer to manage the battery's charging and discharging parameters manually. While they offer high performance, they require careful monitoring to prevent overcharging or overdischarging.

  ◆Smart BMS Packs: These packs are equipped with a built-in BMS that monitors and controls the battery's charging and discharging processes. This helps to ensure safe and efficient operation, as the BMS protects the battery from overcharging, overdischarging, and short circuits. Smart BMS packs are ideal for users who prioritize convenience and safety.


Applications of 14s LiPo Batteries

14s LiPo UAV batteries are used in a wide range of professional drone applications, including:

  ◆Aerial Photography and Cinematography: Drones equipped with 14s LiPo batteries can carry heavy camera equipment for extended periods, allowing filmmakers to capture stunning aerial shots.

  ◆Agricultural Spraying: Drones used for agricultural spraying require high-capacity batteries to cover large areas efficiently.

  ◆Surveying and Mapping: LiPo batteries power drones used for surveying and mapping, enabling them to fly long distances and capture detailed data.

  ◆Industrial Inspections: Drones equipped with 14s LiPo batteries are used for inspecting infrastructure such as power lines, pipelines, and buildings, thanks to their long flight times and high payload capacities.


Grepow 14s LiPo battery solutions

In conclusion, 14s LiPo battery solutions offer a combination of high performance, reliability, and safety, making them ideal for a wide range of professional drone applications. Whether you're a filmmaker, agricultural professional, surveyor, or industrial inspector, Grepow's 14s LiPo batteries can help you take your drone operations to new heights.

Battery Solutions Battery Type
Tattu Pro 51.8V 22000mAh 14S Lipo BatterySmart Bms Battery
Tattu Pro 53.2V 22000mAh 14S Lipo BatterySmart Bms Battery
Tattu 3.0 53.2V 10500mAh 14S Lipo BatterySmart Bms Battery
Tattu 3.0 51.8V 19000mAh 14S Lipo BatterySmart Bms Battery
Tattu 3.0 51.8V 22000mAh 14S Lipo BatterySmart Bms Battery
Tattu 3.0 53.2V 22000mAh 14S Lipo BatterySmart Bms Battery
Tattu 3.0 51.8V 25000mAh 14S Lipo BatterySmart Bms Battery
Tattu 3.0 53.2V 28000mAh 14S Lipo BatterySmart Bms Battery
Tattu 4.0 53.2V 20000mAh 14S Lipo BatterySmart Bms Battery
Tattu 4.0 53.2V 30Ah 14S Lipo BatterySmart Bms Battery
Tattu 16000mAh 51.8V 14S Lipo BatteryPunch Cell Battery
Tattu 22000mAh 51.8V 14S Lipo BatteryPunch Cell Battery
Tattu 32000mAh HV 53.2V 14S Lipo BatteryPunch Cell Battery
Tattu 40000mAh HV 53.2V 14S Lipo BatteryPunch Cell Battery
Tattu NMC 811 22000mAh 51.8V 14S Lipo BatteryPunch Cell Battery
Tattu NMC 811 28000mAh 51.8V 14S Lipo BatteryPunch Cell Battery
Tattu NMC 811 30000mAh 51.8V 14S Lipo BatteryPunch Cell Battery
Tattu NMC 811 70000mAh 51.8V 14S Lipo BatteryPunch Cell Battery
Tattu NMC 16000mAh 53.2V 14S Lipo BatteryPunch Cell Battery
Tattu NMC 22000mAh 53.2V 14S Lipo BatteryPunch Cell Battery
Tattu NMC 30000mAh 53.2V 14S Lipo BatteryPunch Cell Battery
Tattu 28000mAh 55.3V 14S Lipo BatteryPunch Cell Battery
Tattu 38000mAh 55.3V 14S Lipo BatteryPunch Cell Battery
