Tattu 3.0 14S 28000mAh 53.2V 25C HV Lipo Smart Drone Battery

Tattu Plus 3.0 14S 28000mAh 53.2V 25C HV Lipo Smart Drone Battery
Tattu Plus 3.0 14S 28000mAh 53.2V 25C HV Lipo Smart Drone Battery
Tattu Plus 3.0 14S 28000mAh 53.2V 25C HV Lipo Smart Drone Battery
Tattu Plus 3.0 14S 28000mAh 53.2V 25C HV Lipo Smart Drone Battery
Tattu Plus 3.0 14S 28000mAh 53.2V 25C HV Lipo Smart Drone Battery

Tattu 3.0 14S 28000mAh 53.2V 25C HV Lipo Smart Drone Battery

The Tattu 3.0 is a new generation smart drone battery with optimized plug & play installation, adopts high energy density cell and advanced BMS, specially designed for a heavy payload of MTOW 25kg to 85kg Drones, 10L to 50L Agricultural drones, aerial photography UAV, cargo delivery drone, surveying and mapping aircraft, eVTOL, etc. With optimized plug & play installation, supports max 5C fast charging with TA3000, T3200, TA3200W, TA9000W PRO.
Contact us
Product Details

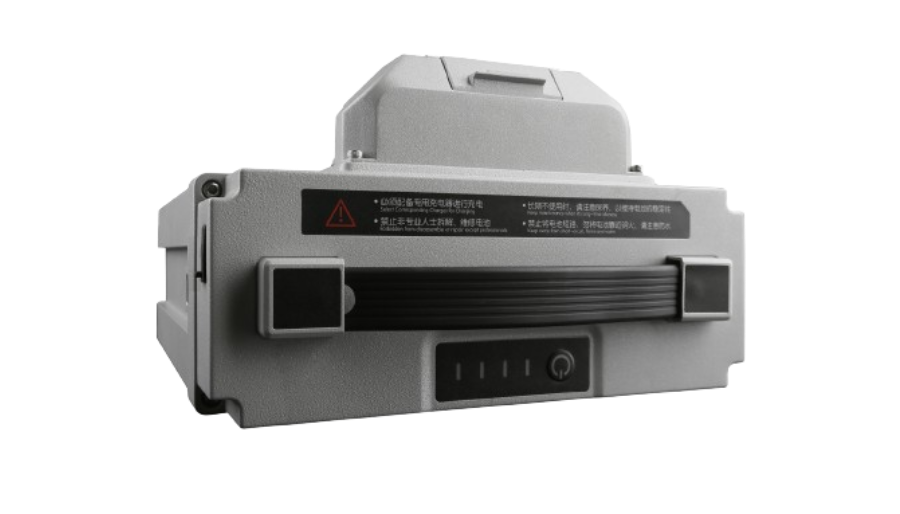

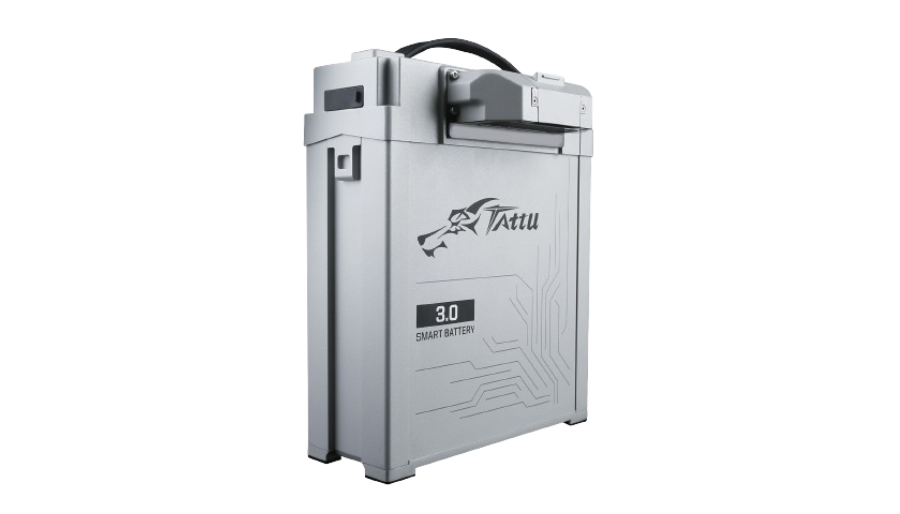

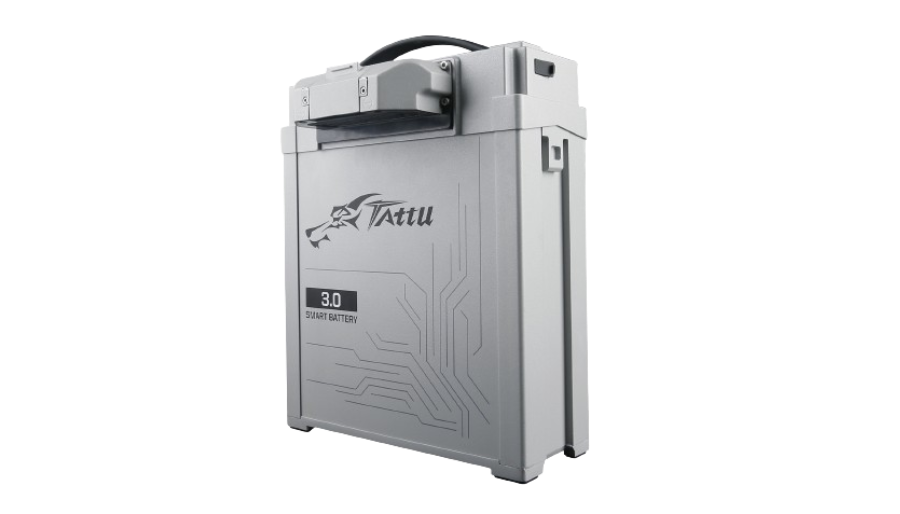

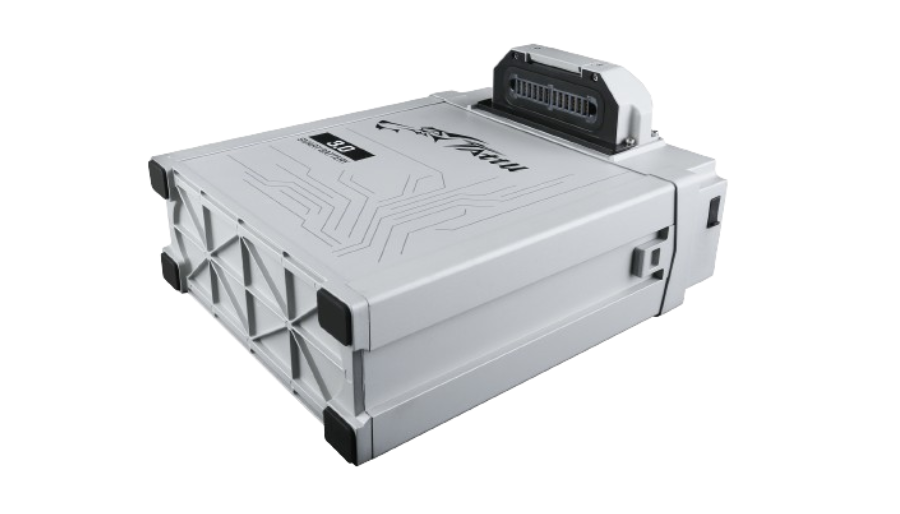

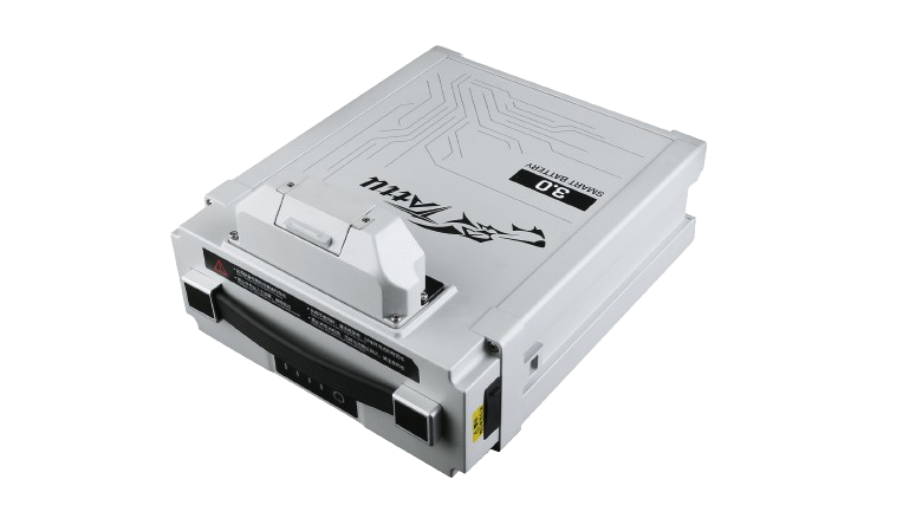

The Tattu 3.0 14S 28000mAh battery is a new generation smart drone battery with optimized plug & play installation, supports 3C fast charging and max 150A continuous current, and the lifespan can be more than 600 cycles. It has a unique design, sluminum housing heat-dissipation, sealed waterproof, smart external anti-spark device, portable smart checker, drawer slides design and LED indicator.

14S 28000mAh UAV Battery Specifications

Minimum Capacity: 28000mAh

Configuration: 14S1P / 51.8V / 14Cells

Discharge Rate: 25C

Max Burst Discharge Rate: 50C

Net Weight(±10g): 9100±200g

Dimensions(±5): 279*236*91mm

Discharge Plug: Molex

Resource Download

Tattu 3.0 Series Lipo Smart Drone Battery User Guide

Applications

The Tattu 3.0 is suitable for multiple commercial professional drone systems. There are many smart features, which include data collection, safety reminder, power calculation, automatic balancing,charging reminder, abnormal-status alarm, data transmission and more.

● Agricultural Spraying Drone Battery

● eVTOL Aircraft Battery

● Mapping & Surveying Drone Battery

● Delivery Drone Battery

● Surveillance Drone Battery

● Firefighting Drone Battery

● Light Show Drone Battery

● Photography Drone Battery

● Construction Drone Battery

● Energy Drone Battery

Recommended Chargers

Tattu TA3200 drone battery charger for 6S-14S pouch cell / smart batteries.

Tattu TA7200 drone battery charger for 12S/14S smart batteries.

Tattu TA9000 drone battery charger for 12S-22S smart batteries.

Tattu TA9000 Pro drone battery charger for 12S-18S smart batteries.
