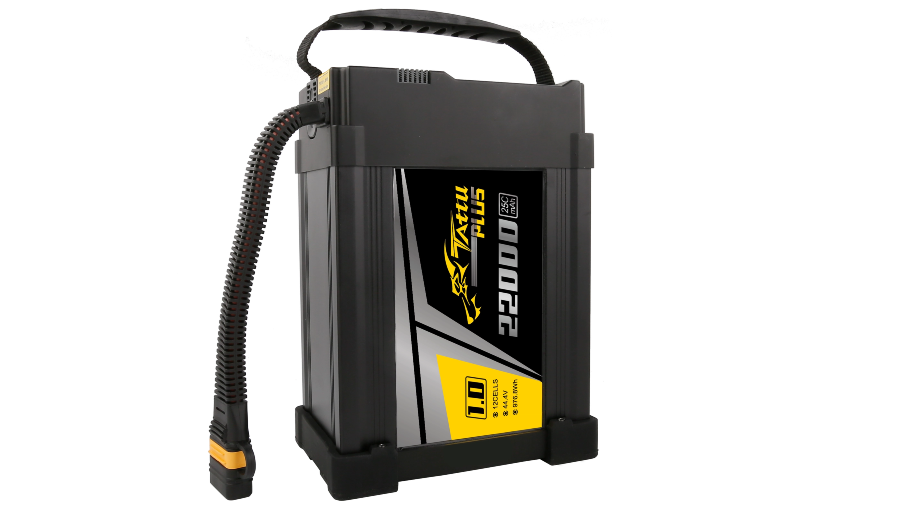

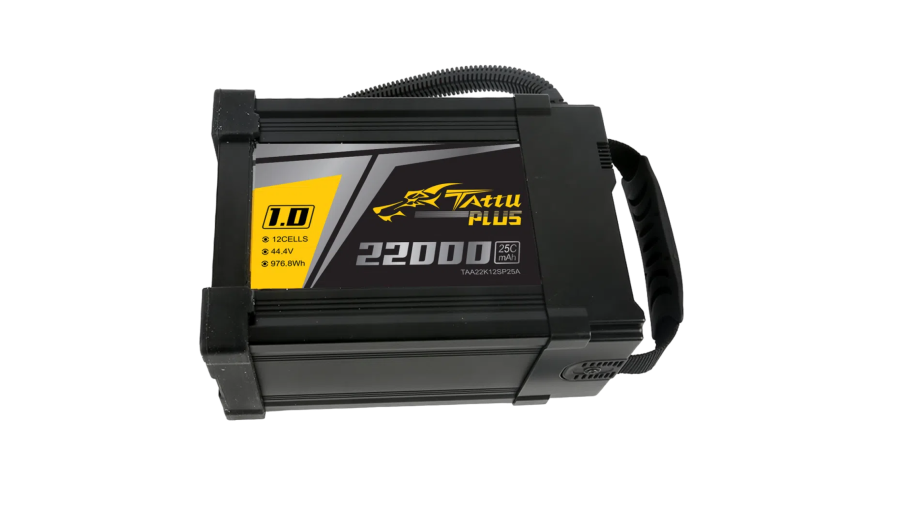

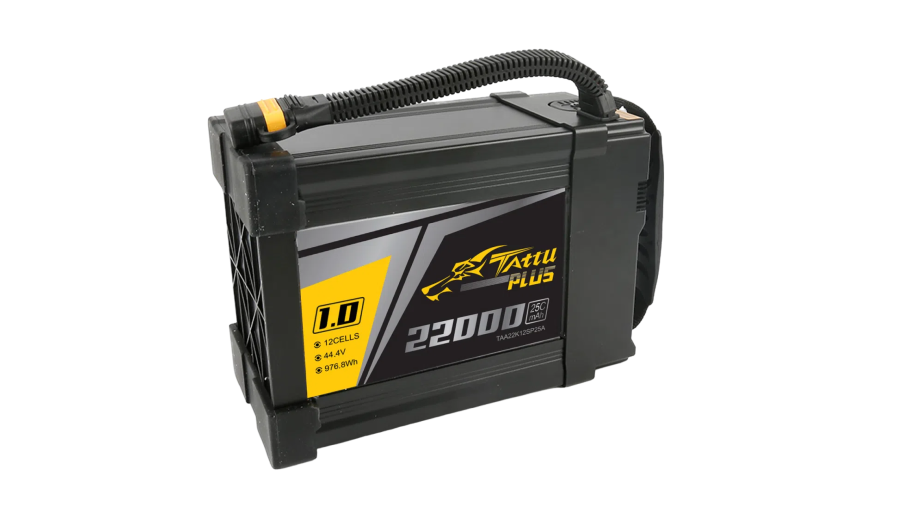

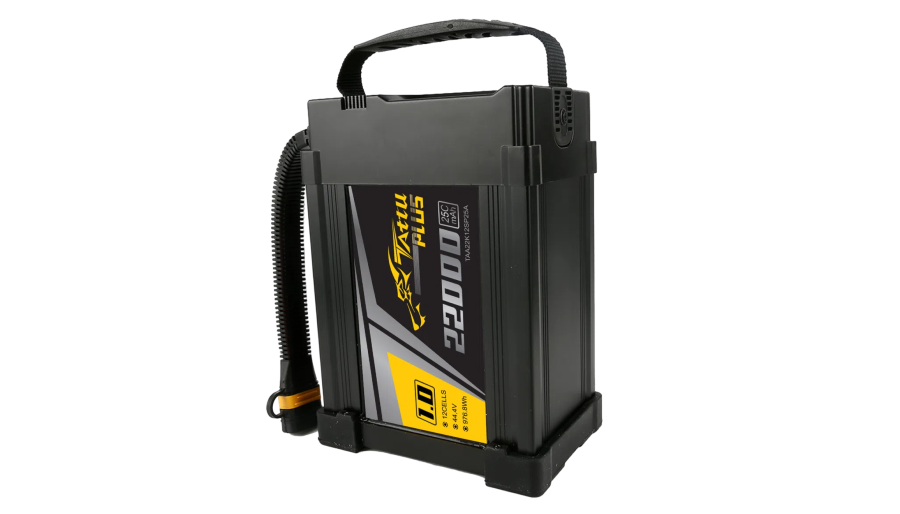

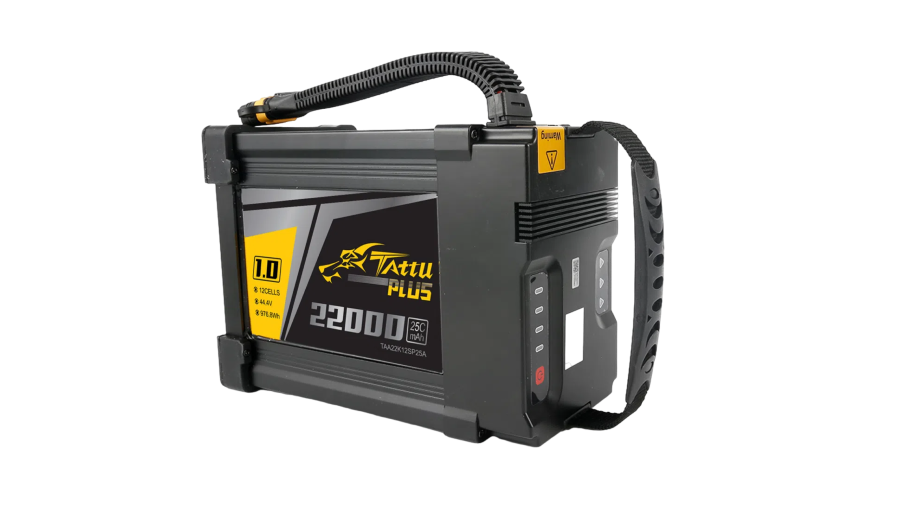

Tattu Plus 1.0 12S 22000mAh 44.4V 25C Lipo Smart Drone Battery

The Tattu Plus 1.0 22000mAh 12S 44.4V 25C Pack is perfect battery power for drones such as DJI S1000, S1000+, OnyxStar FOX-C8-HD, Gryphon Dynamics X8, Gryphon Dynamics-12 DODECA, Gryphon Dynamics-8, etc. It includes features like data acquisition, security alerts, automatic equalization, and a CAN/SMBU communication port for monitoring battery status and history via host computer software.

Solution Details

The Tattu Plus 1.0 22000mAh 12S1P lipo drone smart battery pack is compatible with 12S and 14S power systems, supports 3C fast charging, and boasts a lifespan of over 600 cycles, thanks to its enhanced structural design. These batteries also offer excellent heat dissipation and waterproofing, ensuring smoother and safer drone operations.

Tattu Plus 1.0 12S 22000mAh UAV Battery Specifications

●Minimum Capacity: 22000mAh

●Configuration: 12S1P / 44.4V / 12 Cells

●Energy: 976.8Wh

●Discharge Rate: 25C

●Max Burst Discharge Rate: 50C

●Net Weight(±20g): 6058g

●Dimensions: 237×173×116mm (L×W×H)

●Discharge Plug: AS150U

Manual DownLoad: Tattu Plus

Product Features

● Self-health inspection

● Using time log

● Current detection

● Ultra-Low power consumption

● Abnormal log

● Anti-spark
● Waterproof and dustproof

Applications

The Tattu Plus 1.0 is suitable for multiple commercial professional drone systems. There are many smart features, which include data collection, safety reminder, power calculation,charging reminder, abnormal-status alarm, data transmission and more.

●Agriculture spraying drone

●Land surveying drones

●Police drones

●eVTOL

●Delivery drone

●Inspection drone

●Photography drones

●Construction drone

●Mining drones
