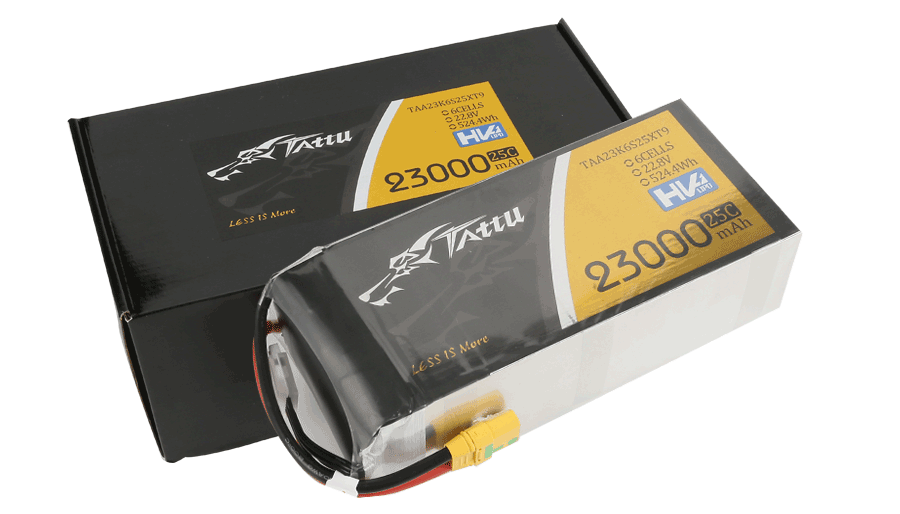

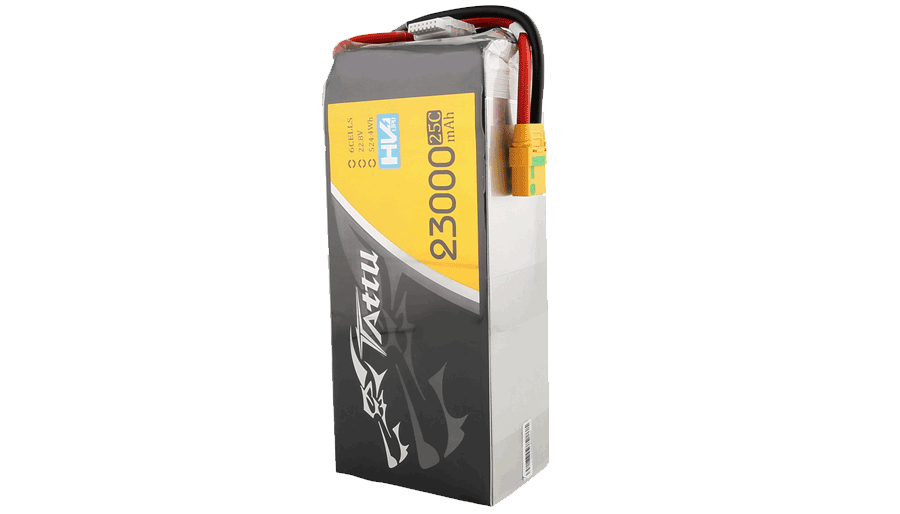

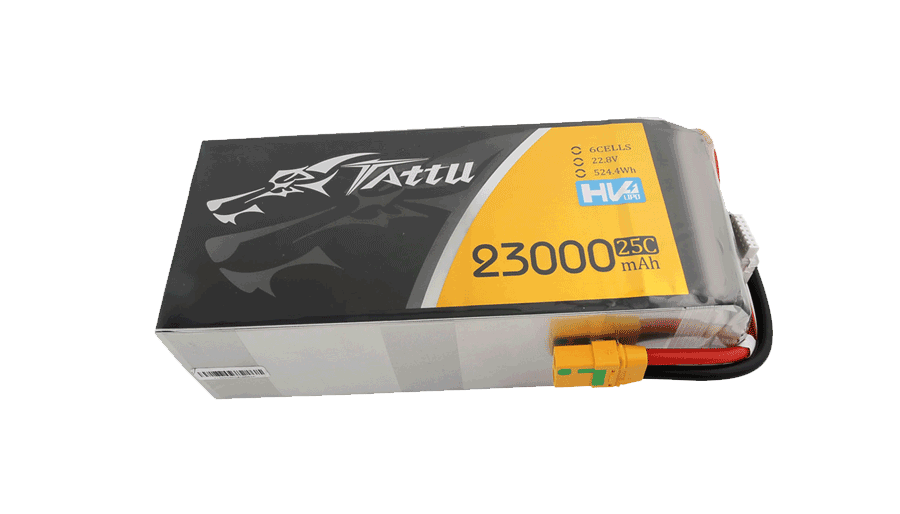

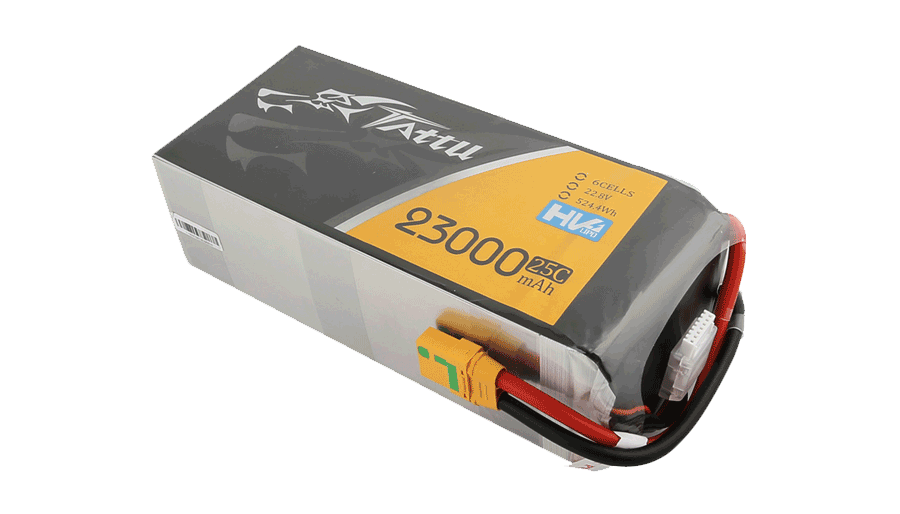

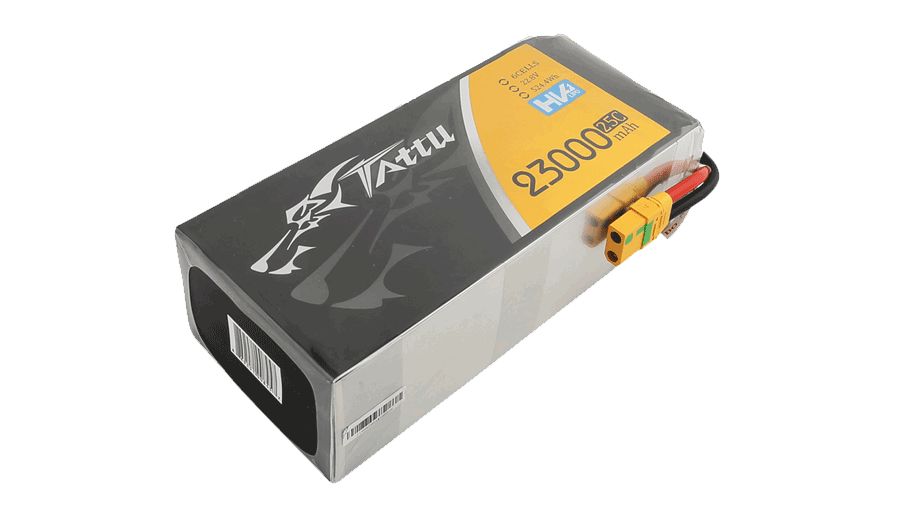

The new high-voltage 22.8V 23000mAh pouch cell drone battery is assembled by Grepow Battery after years of technical precipitation and improvement with high quality and high performance high-voltage lithium cells. The nominal voltage of the cell is 3.8V, and the energy density reaches more than 200Wh/kg. At the same time, the problems of the UAV battery have been effectively improved, so that the drone has better working performance and efficiency.
Configuration: | 6S1P | Balancer Connector Type: | JST-XHR-7P |
Capacity(mAh): | 23000 | Balancer Wire Length(mm): | 65 |
Voltage(V): | 22.8 | Connector Type: | XT90-S / others |
Discharge Rate: | 25C | Discharge Wire Length(mm): | 150 |
Height(±2mm): | 63 | Max Burst discharge Rate (C): | 50 |
Width(±2mm): | 91 | Wire Gauge: | 10# |
Length(±5mm): | 208 | Net Weight(±20g): | 2474 |
Other Capacity: | 40000mAh / 22000mAh / 17000mAh / 11000mAh | ||
● Support 3C fast charging customization ● 300+ times cycle life ● Higher and more stable discharge platform ● Smaller internal resistance and better charging and discharging efficiency due to the stacking process ● With complete battery product certifications | ● Lighter weight under the same specifications ● Higher energy density of 275Wh/kg ● Operating temperature range: -30℃～60℃ ● Support max. 3C discharge at -30℃ ● Perfect after-sales service |
The 22.8V high-voltage version of 23000mAh soft pack lithium battery for drones is a product developed by Grepow Battery after years of technical experience and accumulation, and the improvement of technical process makes the manufacturing level have a very good improvement; at the same time, it makes the drone battery in energy energy density (range) and service life has been improved to a certain extent, which saves the partners of drone battery application and has greatly improved the working efficiency.
22.8V high-voltage version of 23000mAh soft pack lithium battery for UAV is widely used in aerial photography, traffic distribution, mapping, rescue, underwater, aerial survey, agriculture and other fields.
