TA3000 Battery Charger for UAV Battery

TA3000 Smart Charger is a dual-channel multi-function charger with functions such as charging, fast charging, maintenance, storage, and discharge. It can automatically identify the parameters of the connected battery, and can complete the charging and discharging functions without manual settings; The TA3000 smart charger has functions such as over-temperature protection, over-current protection, over-charge protection, power-off protection and fast balancing.

Online information

Solution Details

TA3000 Battery Charger is Grepow's first self-developed industrial-grade charger product, with a charging power of up to 3000W, intelligent distribution of dual-channel charging, and can satisfy the charging of 6 to 14 series of lithium polymer battery packs. The battery and charging solution can meet the full range of TATTU Smart battery products and without a balance port. This not only optimizes the user experience, but also realizes "Smart Charging Management", improves safety, and the highly integrated solution of batteries and chargers brings economic benefits to users in terms of cost savings.

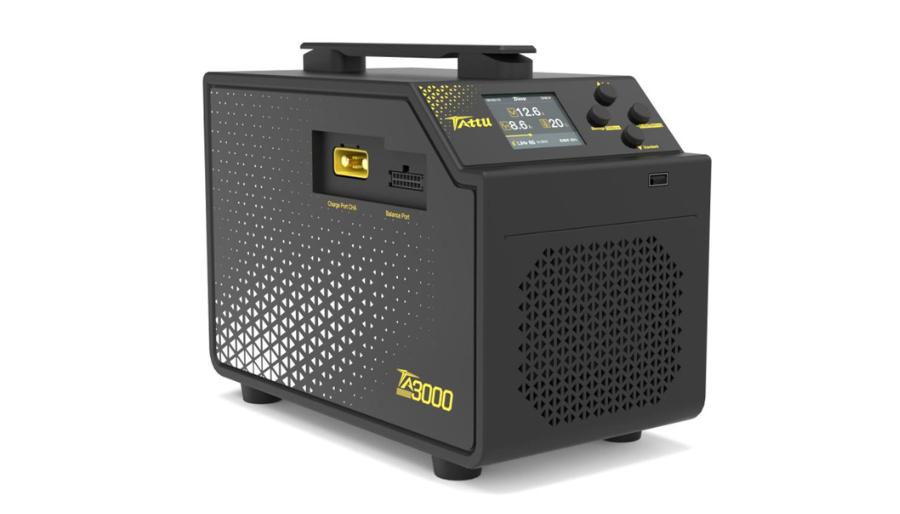

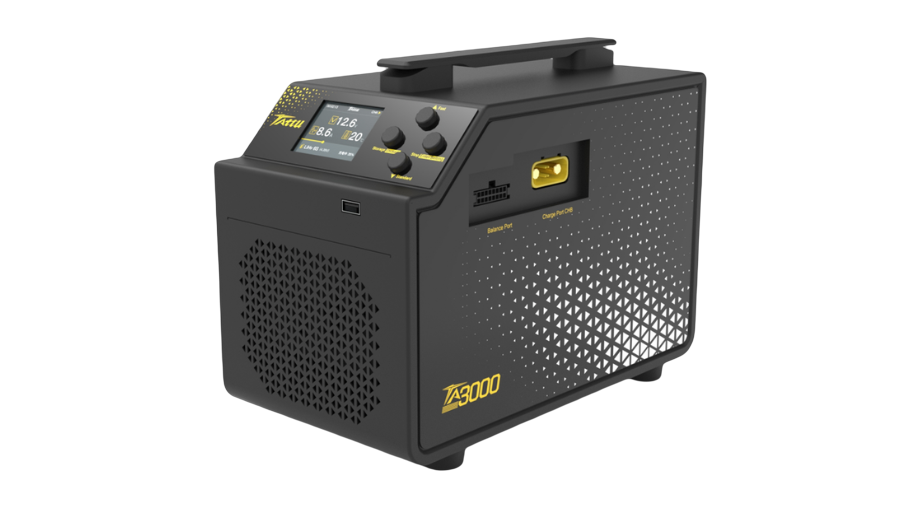

TA3000 Battery Smart Charger for UAV Battery

TA3000 Smart Charger Specifications

Channel:	2	Battery Type:	Lipo/LiHV
Charging Power:	AC 110V input: Max 1200W AC 220V input: Max 3000W	Balance Cells:	6~14S
Discharge Power:	MAX 70W*2	Output Current:	AC100-240V 50/60Hz
Charging Current:	AC 110V input: Max 40A AC 220V input: Max 60A	Input Current:	AC<15A
Display:	2.4 inch IPS Screen	Output Interface:	AS150UPB-M
Operating Temperature:	0~65℃	Storage Temperature:	-20~60℃
Voltages in Fast Charge Mode:	Lipo：4.2V LiHV：4.35V	Standard Charge Mode Voltage:	Lipo：4.2V LiHV：4.35V
Voltage in Maintenance/Storage Mode:	Lipo：3.8V LiHV：3.85V	Discharge Mode Voltage:	Lipo：3.6V LiHV：3.7V
Size:	276×154×216mm	Weight:	6000g
