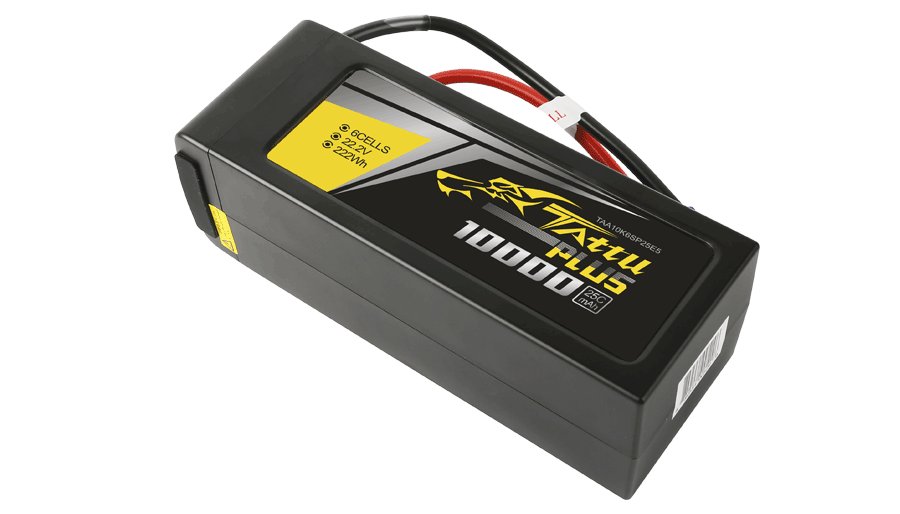

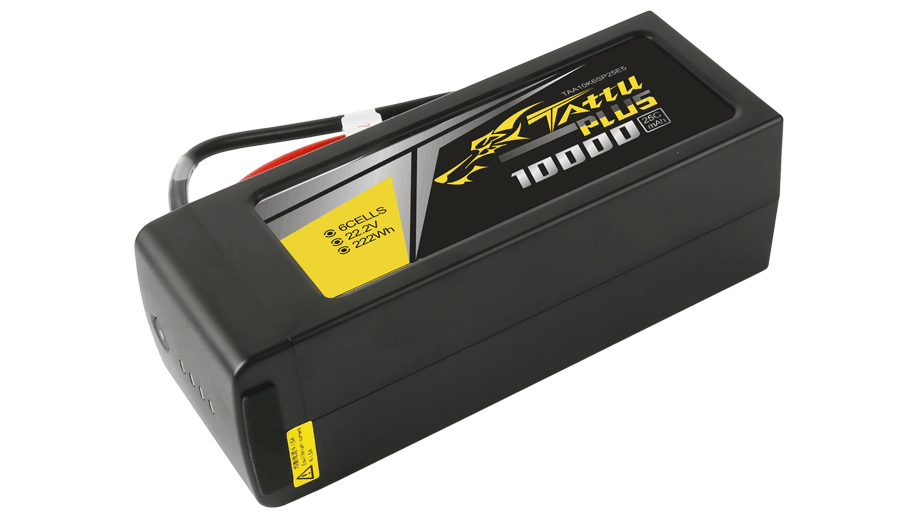

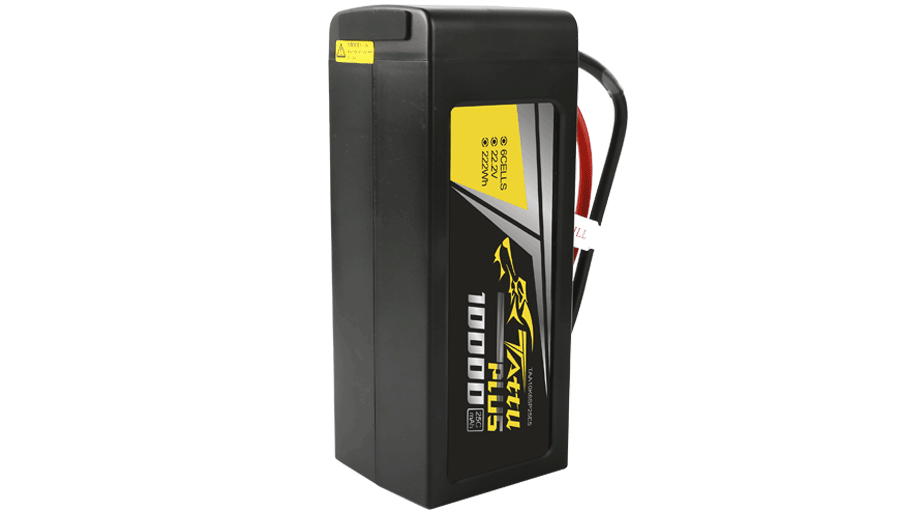

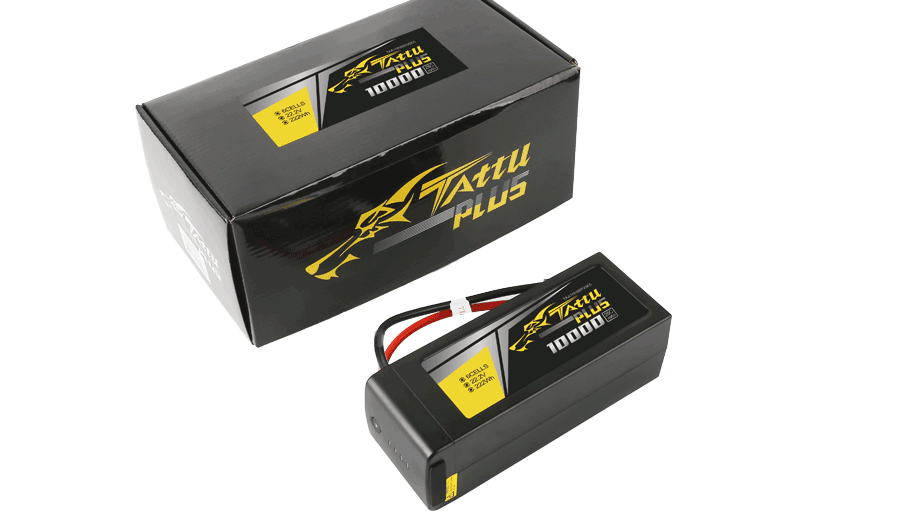

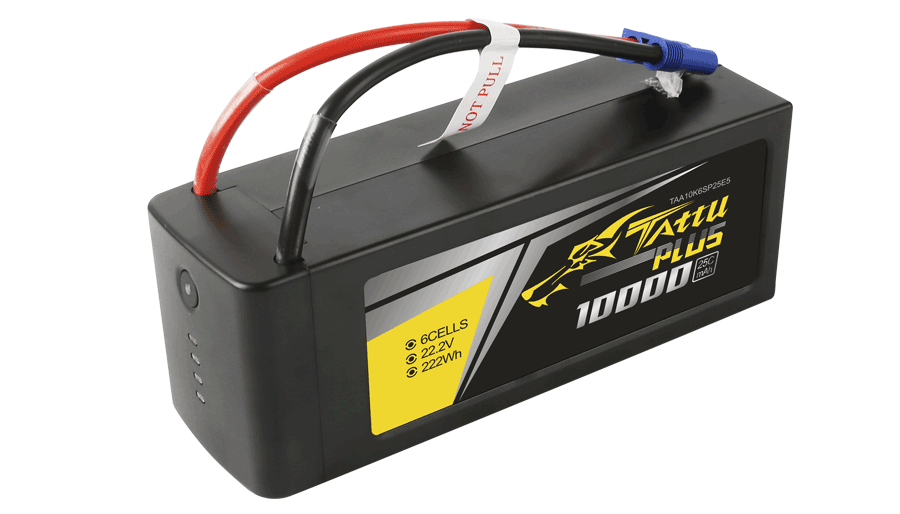

Tattu Plus 10000mAh 22.2V Lipo Smart Battery Pack for Dones

Tattu Plus 10000mAh 22.2V Lipo Smart Battery for UAVs Dones
Tattu Plus 10000mAh 22.2V Lipo Smart Battery for UAVs Dones 2
Tattu Plus 10000mAh 22.2V Lipo Smart Battery for UAVs Dones
Tattu Plus 10000mAh 22.2V Lipo Smart Battery for UAVs Dones
Tattu Plus 10000mAh 22.2V Lipo Smart Battery for UAVs Dones

Tattu Plus 10000mAh 22.2V Lipo Smart Battery Pack for Dones

The new version of 10000mAh smart drone battery Tattu plus with ▲ EC5 plug, voltage 22.2V, ▲discharge rate 25C, ▲maximum instantaneous discharge 50C, ▲core 6S1P ▲charging and discharging performance: continuous discharge current ≤ 250A, ▲recommended charging current 5A, ▲support charging current 10A. To help drones in better working performance.
Online information
Product Details

The 22.2V New Version of Tattu Plus 10000mAh smart lipo battery pack for drones is a product developed by Grepow Battery after years of technical experience and accumulation, and the improvement of technical process makes the manufacturing level a very good improvement; at the same time, it makes the drone battery in energy density (range) and service life has got a certain extent, which helps our partners of drone battery application save cost and greatly improve the working efficiency.

Specs of Tattu Plus 10000mAh UAV Smart Lipo Battery

Configuration:

6S1P

Balancer Connector Type:

JST-XHR

Capacity(mAh):

10000

Balancer Wire Length(mm):

/

Voltage(V):

22.2

Connector Type:

EC5

Discharge Rate:

25C

Discharge Wire Length(mm):

160

Height(±2mm):

63

Max Burst discharge Rate (C):

50

Width(±2mm):

70

Wire Gauge:

AWG#10

Length(±5mm):

186

Net Weight(±20g):

1517

Other Capacities:

22000mAh /  16000mAh /  12000mAh

10000mAh Smart Drone Battery Tattu Plus Features

● Self-heating at low temperature

● Health self-check function

● Abnormal record function

● Waterproof and dustproof function

● History information storage function

● Charge protection function

● Communication protection function

● Intelligent protection function

● Fire protection function

● Charging and discharging terminals available

Applications

10000mAh smart drone battery Tattu Plus is mainly used in agriculture plant protection, security mapping, logistics and other medium and large drones.

Equipped with industry-standard JST-XHP-7 plug. Best suited to Freefly ALTA, DJI S800, S800EVO, Walkera QR X800, FreeFly CineStar 6, FreeFly CineStar 8, etc. It is suitable for all industry drones, such as aerial photography drones, agriculture spraying drones, mapping drones, cargo transportation drones, etc.
