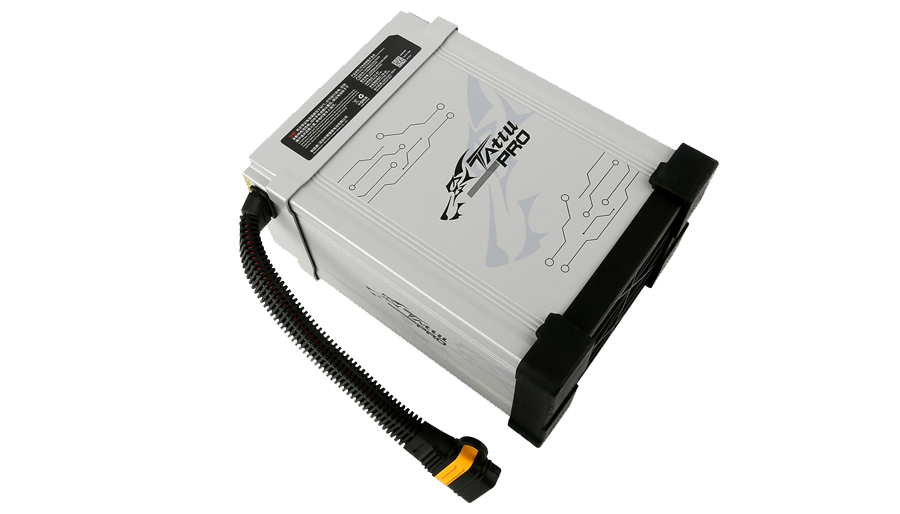

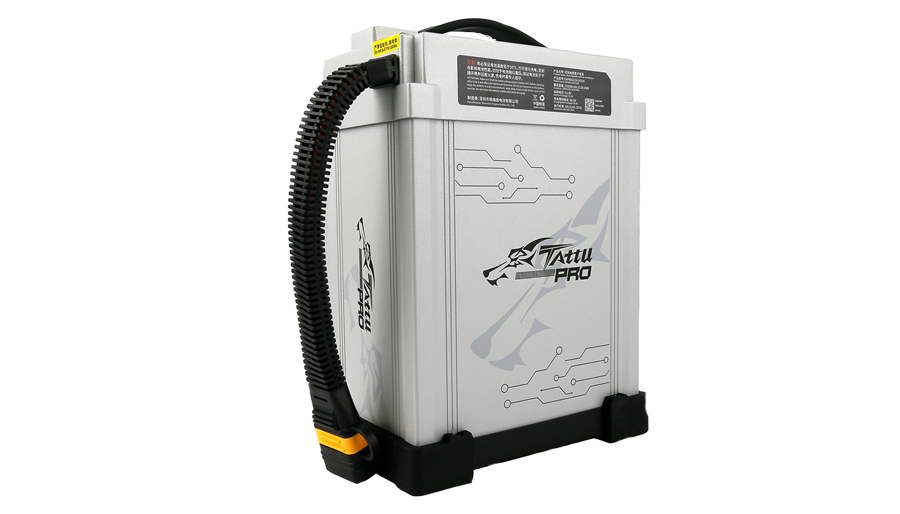

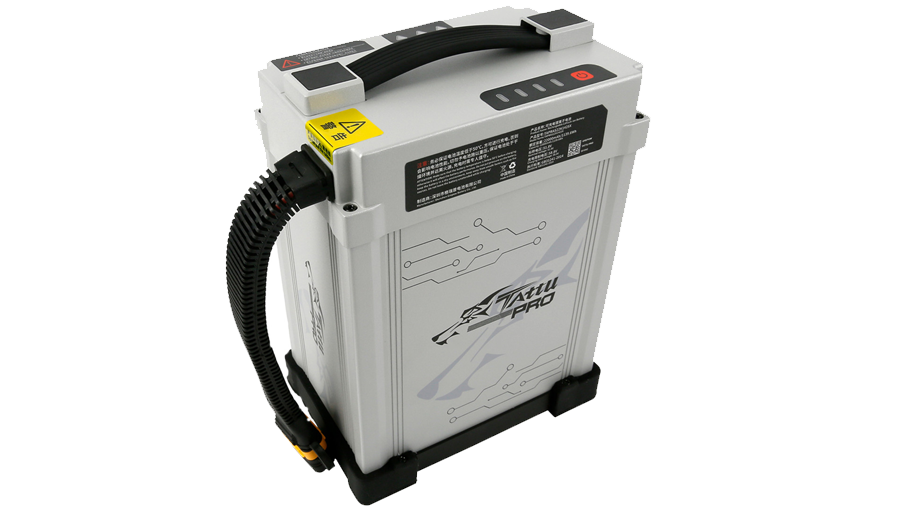

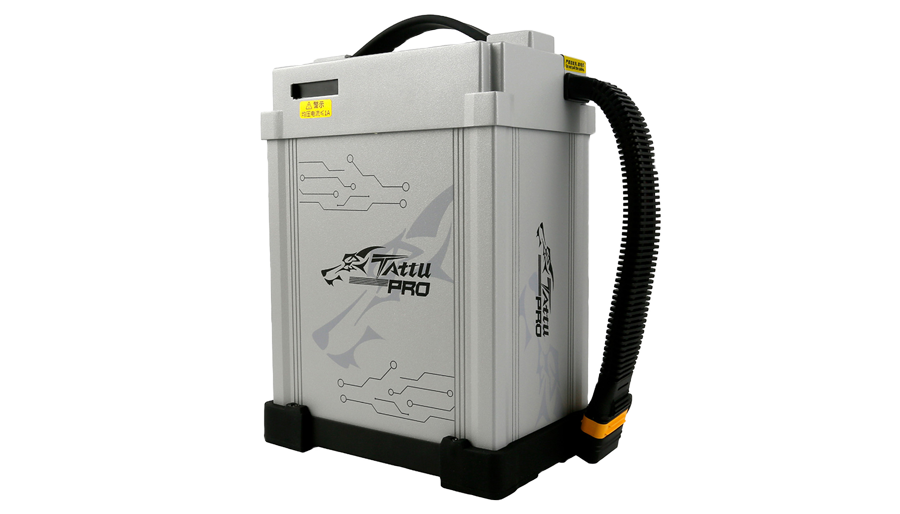

Tattu Pro 14S Lipo 22000mAh 51.8V Smart UAV Drone Battery Pack

Tattu 22000mAh 51.8V Smart UAV Battery
Tattu 22000mAh 51.8V Smart UAV Battery
Tattu 22000mAh 51.8V Smart UAV Battery
Tattu 22000mAh 51.8V Smart UAV Battery
Tattu 22000mAh 51.8V Smart UAV Battery

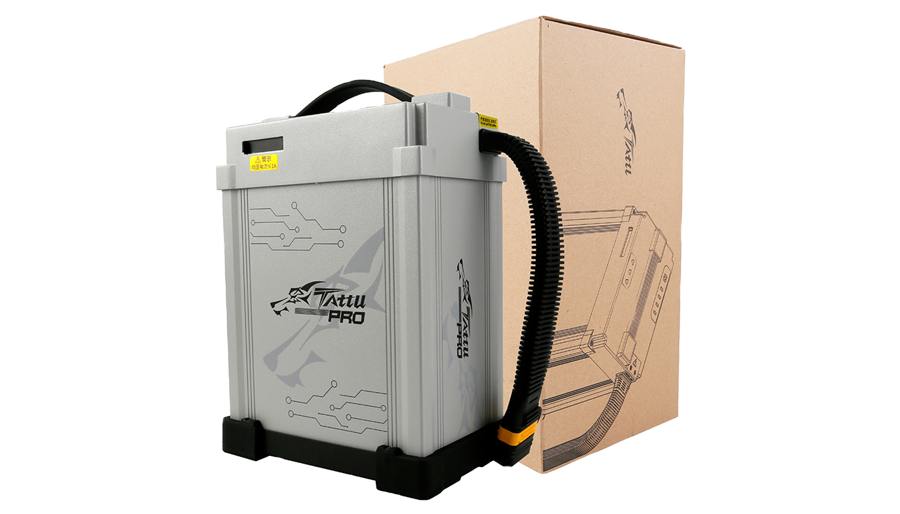

Tattu Pro 14S Lipo 22000mAh 51.8V Smart UAV Drone Battery Pack

Tattu Pro smart batteries suit for 12S and 14S lipo power system and support SMBUS / UAVCAN protocol. With the smart LED indication, users can identify the battery status more accurately.
Contact us
Product Details

Tattu Pro 22000mAh 14S lipo battery pack is a product developed by Grepow Battery after years of technical experience and accumulation mainly used in agriculture plant protection, security mapping, logistics and other medium and large drones. To improve the efficiency of drones, Grepow battery has effectively solved the current problems of smart drone batteries after years of technical precipitation and improvement to help drones have better working performance.

Tattu Pro 22000mAh 51.8V 14S Lipo Battery Pack Features

Health self-check, charge protection and more BMS functions function

High discharge C rate and great compatibility

Waterproof and dustproof function

Local after-sales service (located in Dublin, CA)

The most strict single cell capacity, voltage, resistance, discharge curve matching process.

Various battery plugs, configiuration, discharging tempertures, and more can be customized.

Tattu Pro 22000mAh 51.8V 14S Lipo Drone Battery Specifications

Minimum Capacity: 22000mAh

Configuration: 14S1P / 51.8V / 14 Cells

Discharge Rate: 25C

Max Burst Discharge Rate: 50C

Power: 1139.6Wh

Net Weight(±100g): 7200g

Dimensions: 117 x 174 x 238mm (L*W*H)

Discharge Plug: AS150U

Anti-spark

Resource Download

Grepow UAV Battery Catalog

Tattu Pro 22000mAh Lipo Smart Battery User Guide

Applications

The Tattu Pro is suitable for multiple commercial professional drone systems. There are many smart features, which include data collection, safety reminder, power calculation, automatic balancing,charging reminder, abnormal-status alarm, data transmission and more.

● Agricultural Spraying Drone Battery

● eVTOL Aircraft Battery

● Mapping & Surveying Drone Battery

● Delivery Drone Battery

● Surveillance Drone Battery

● Firefighting Drone Battery

● Light Show Drone Battery

● Photography Drone Battery

● Construction Drone Battery

● Energy Drone Battery

Recommended 14S Lipo Battery Chargers

Tattu TA3200 drone battery charger for 6S-14S lipo soft pack / smart batteries.

Tattu TA7200 drone battery charger for 12S/14S lipo smart batteries.

Tattu TA9000 drone battery charger for 12S-22S lipo smart batteries.

Tattu TA9000 Pro drone battery charger for 12S-18S lipo smart batteries.
