LiPo Battery GRP3020035 210mAh 3.7V for Smart Bracelet
1. Product parameters of smart bracelet battery
| Product Model |
GRP3020035 |
| capacity |
210 mAh |

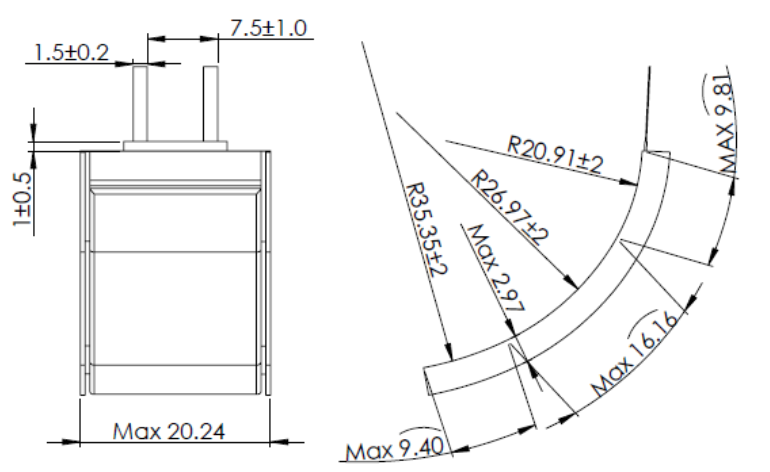

| size | 35*20*3 mm |
| voltage | 3.7 V |
| charging voltage | 4.2 V |
| Charging temperature | 0℃ to 45℃ |
| discharge temperature | -20℃ to 60℃ |
| storage temperature |
-20℃ to 35℃ |
| charging current | Standard charge: 0.5 quick charge: 1C |
| Standard Charging method | 0.5C CC(constant current) charge to 4.25V, then CV (constant voltage 4.2V) charge until charging current ≤ 0.05C |
| maximum charging current | 1C |
| maximum discharge current | 1C |
| Protection IC parameter | The overcharge protection voltage: 4.2V±0.05V The over-discharge protection voltage: 2.7V±0.1V |
2. The smart bracelet battery characteristics
1. Wide operating temperature range: -20℃ to 55℃ (Special temperatures can be customized, low temperature -50℃ to 50℃);
2. Quick charging: it can be cycled and charged quickly, without memory effect;
3. Light weight, large capacity, good performance at low temperature, high charging and discharging rate;
4. Safe and reliable: built-in protection board (short circuit, overcharge, overdischarge, etc.);
5. Super long life: the battery capacity shall not be less than 80% after 500 consecutive charges and discharges;
6. strong plasticity: any special shape, such as: arc, circular, etc., ultra-thin thickness can be customized;
7. Environmental protection: ISO 9001 quality system certification, UL, UN, CE, RoHS, REACH, etc.
3. The smart bracelet battery application
See more smart bracelet battery instruction to the link: https://www.grepow.com/page/shaped-battery.html
More curved battery: https://www.grepow.com/page/curved-battery.html
Email us at info@grepow.com.
