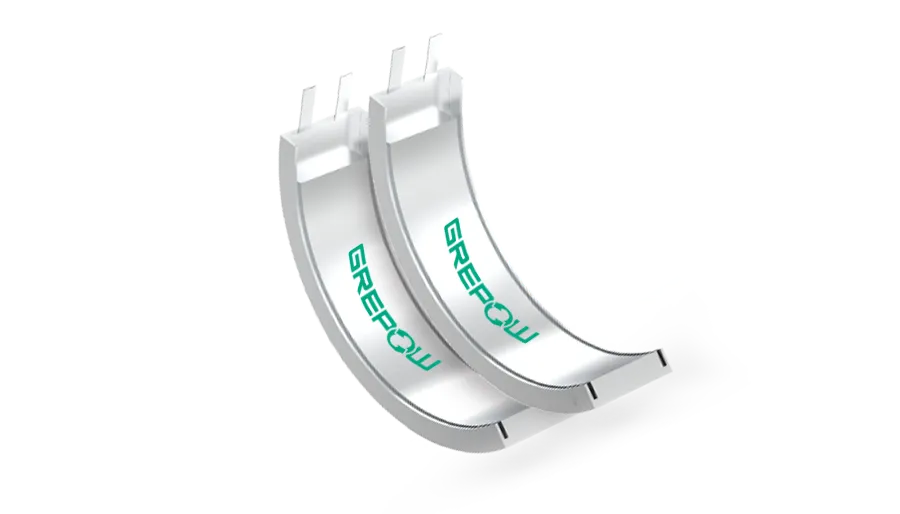

Curved Battery

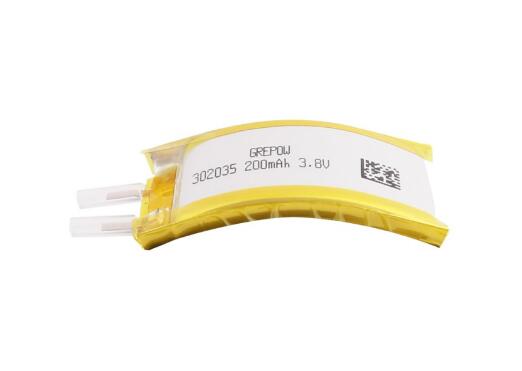

Curved Battery

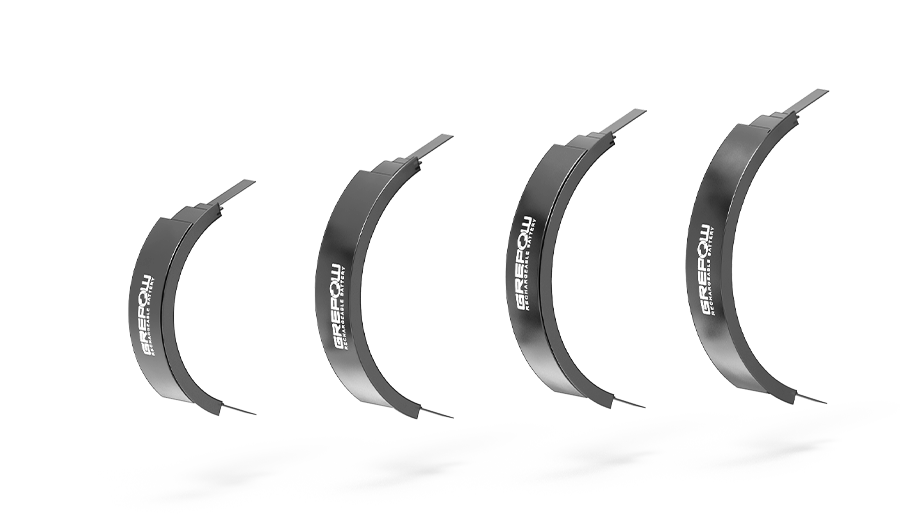

Curved Lipo Battery ring battery

Curved Battery

Curved shaped battery is used in a growing number of wearable devices, such as wristbands and smartwatches. It can make full use of the internal space of the consumer electronic devices, providing greater capacity and longer usage time.
Online information
Product Details

Curved Lithium Polymer Battery Characteristics:

● High working voltage and high energy density

● Off-the-shelf and customized solutions

● Fast charging capacity up to 3C

● Temperature: -50 ℃ ~ 50 ℃ or -20 ℃ ~ 80 ℃

● Certified IEC62133, MSDS, UN38.3, RoHS, CE certifications, etc.

From prototype to serial production
Reasonable price and long battery life cycle

● No memory effect, low self-discharge
Saving and optimizing product shape

 High peformance and reliability due to low IR and producing process


Curved Lipo Battery List

The specification table shows some models of the curved shaped battery.

Model No.

Voltage (V)

C rate

Capacity

(mAh)

Thickness

(mm)

Width (mm)

Length (mm)

Shape

Mould

GRP1507025

4.35

3C

19

1.5

7

25

Curved

Yes

GRP1607029

4.2

1C

22

1.6

6.5

29

Curved

Yes

GRP2514024

4.2

1C

60

2.5

14

24

Curved

Yes

GRP4009042

4.2

1C

125

4.0

9

42

Curved

Yes

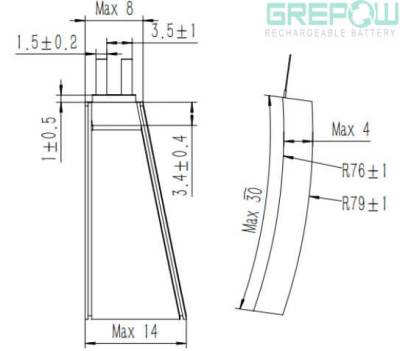

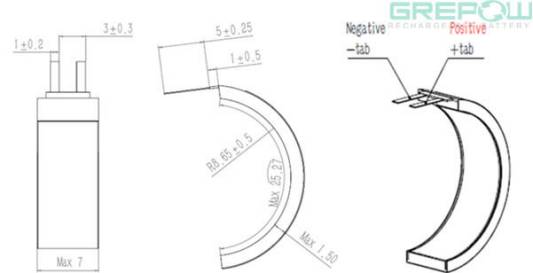

Some Curved Lipo Battery Sample Structures:

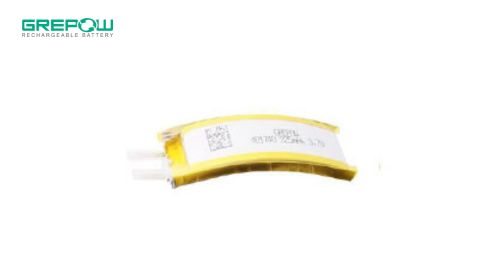

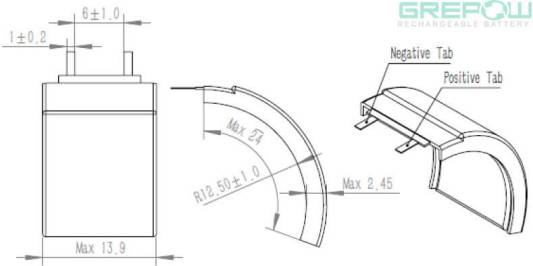

Curved Lipo Battery Structure GRP1507025

GRP1507025

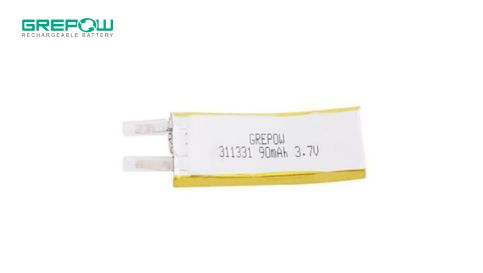

Curved Lipo Battery Structure GRP2514024

GRP2514024

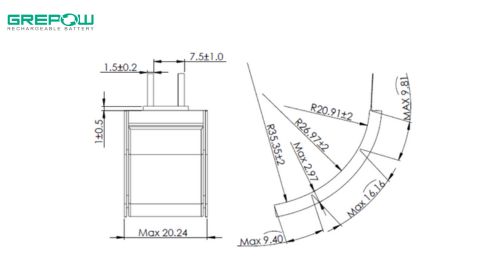

Curved Lipo Battery Structure GRP4014030

GRP4014030

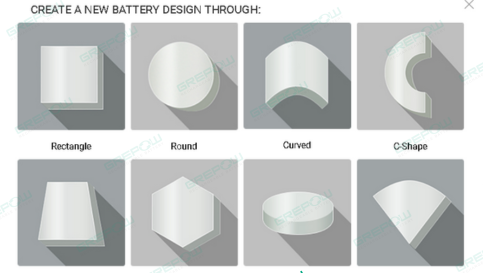

Custom Curved Battery Service

Grepow offer customized curved battery services. If you want to customize the curved battery, different forms, capacity and C-Rate are available on request. Just send us some basic information, and we will provide you with the perfect curved lithium polymer battery solutions.

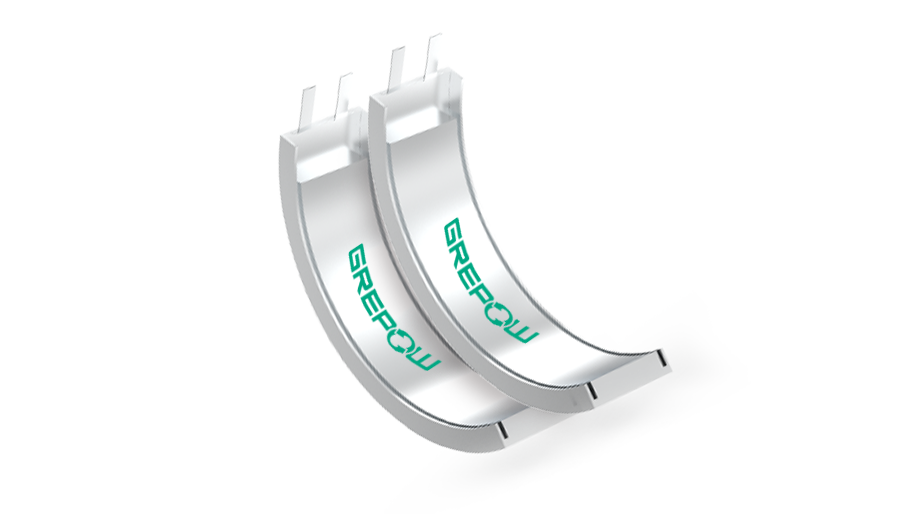

custom curve shaped battery

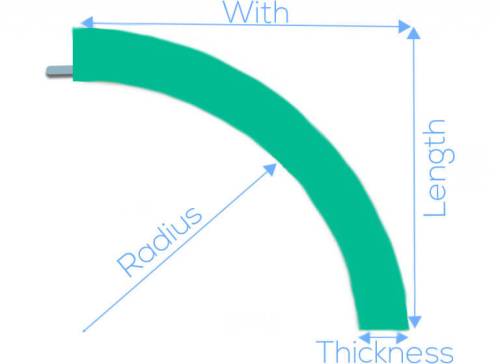

The dimensions of Grepow curved battery:

▶ Thickness: ≤ 6 mm

▶ Width: 6.0 mm ~ 100 mm

▶ Inner arc length: 15 mm ~ 100 mm

▶ Inner arc radius: ≥ 8.0 mm

For further evaluation, please send us your device's internal space dimension or drawing. Email: info@grepow.com

Grepow Curved Battery Application

GREPOW novel curved battery is used in more and more wearable devices such as smart clothing, AR/VR, Bluetooth headsets, wristbands, and smartwatches. It can take full advantage of the internal space of consumer electronics devices, providing greater capacity and longer usage time.

Smart Heated Clothing

Smart Heated Clothing

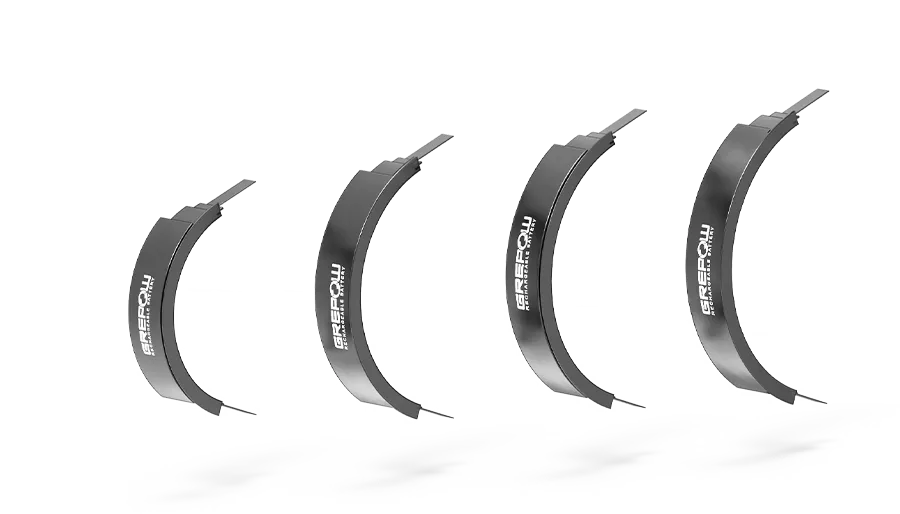

GREPOW novel curved battery fits Smart Ring well

Smart Ring

Grepow curved battery fits VR / AR Headset well.

VR / AR Headset

Grepow curved lipo battery fits Bluetooth Earphones well.

Bluetooth Earphones



General Process
Inquiry
01
Evaluation
02
Specification & Verification
03
Quotation
04
Sample Production
05
Price Verification
06
Production Schedule
07
Shipment
08
