Grepow has been researching developing and manufacturing batteries for more than 20 years, and we are the industry-leading manufacturer of rectangle LiPo battery. From our inception, we have been cooperating with many of the top 500 companies in the world.
● High performance in power, discharge, and life cycles due to stacking process. ● Light weight, flexible size: 0.5mm to 8 mm in thickness, 6mm to 50 mm in width. ● Wide temperature: -50 ℃ to 50 ℃ or -20 ℃ to 80 ℃. ● High C-rate: 150C pulse, 90C discharge for 2seconds, 45C continuous discharge. ● Fast charging: can be charged at 3C or even 5C . ● Better temperature stability and tolerance due to the allowance of higher discharge rate. ● Custom, semi-custom, and off-the-shelf rectangle battery, including the square battery. ● Ability to accommodate applications: smart wearable, medical equipment, smart card, military devices, portable sensors, micro speakers, tracking devices, IoT devices and others. |  |
The capacity of the rectangle battery in the table is for reference. Different forms, including the square battery, capacity and C-Rate are available on request, please contact us.
Model No. | C-rate | Capacity(mAh) | Voltage(V) | Weight(g) | Thickness(mm) | Width(mm) | Length(mm) |
GRP8324037 | 1C | 920 | 4.35 | 14.0±2.0 | 8.0±0.3 | 24.0±0.5 | 38.0±0.5 |
GRP5027053 | 3C | 800 | 4.2 | 14.0±1.0 | 4.8±0.2 | 26.5±0.5 | 52.5±0.5 |
GRP6535042 | 5C | 1000 | 4.2 | 18.5±1.5 | 6.3±0.2 | 35.0±0.5 | 43.0±0.5 |
GRP6230048 | 5C | 900 | 4.2 | 17.0±1.5 | 5.8±0.2 | 30.5±0.5 | 49.5±0.5 |
GRP5721038 | 5C | 400 | 4.2 | 8.5±1.0 | 5.5±0.2 | 21.5±0.5 | 37.5±0.5 |
GRP7025030 | 5C | 400 | 4.2 | 8.7±1.0 | 6.7±0.3 | 25.0±0.5 | 30.5±0.5 |
GRP5334055 | 8C | 1000 | 4.2 | 19.5±1.5 | 4.9±0.2 | 34.5±0.5 | 56.5±0.5 |
GRP7424048 | 8C | 840 | 4.2 | 16.5±1.5 | 7.1±0.3 | 24.0±0.5 | 49.0±0.5 |
GRP6035062 | 40C | 1000 | 4.2 | 16.5±1.5 | 5.8±0.2 | 35.0±0.5 | 62.5±0.5 |
* Contact us for more rectangle batteries!

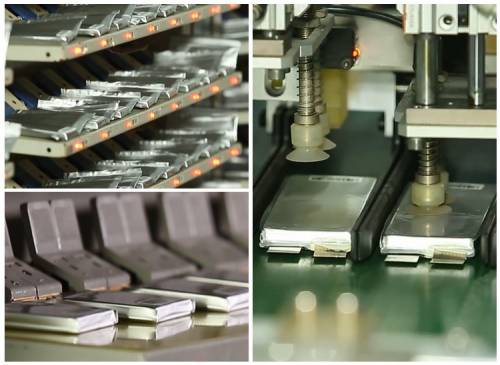

Grepow is a rechargeable battery manufacturer who has provided integrated design, development and manufacturing for over 25 years. Our rectangle batteries of long life, high safety, high C-rate and other characteristics, are mainly applicable to the increasingly mature portable devices nowadays. Rectangle-shaped batteries can be customized on request (including: cell + structure + BMS). ▶ Ready-made and rich rectangle battery models ▶ A variety of rectangle-shape batteries of different sizes are available ▶ Strict quality control ▶Local instant customer support in China, USA, Germany |
|
● Flexible support for customized solutions
● Reliable and stable performance
● Samples and mass production available
● OEM, ODM services available
Rectangle batteries produced by GREPOW are of high performance for vapes, Mini-phone card, Smartwatch, information cards, fitness tracker, portable sensors, micro speakers, medical equipment, tracking devices and others.
