Hearing aids are small electronic devices designed to amplify sound, making it easier for individuals with hearing loss to communicate and participate more fully in daily activities. Over-the-counter (OTC) hearing aids have emerged to make hearing aids more accessible and affordable. OTC hearing aids can be bought directly without a prescription and are designed for people with mild to moderate hearing loss. This development has been driven by the desire to increase accessibility to hearing aids, reduce costs, and address the growing demand for hearing solutions as the population ages.

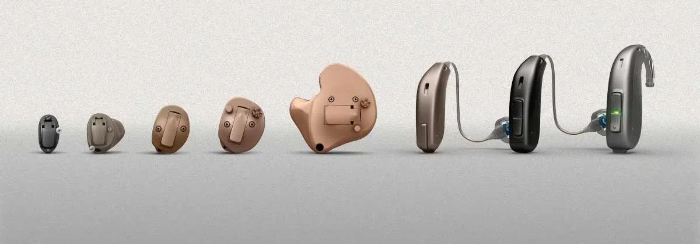

(OTC) hearing aids come in various types, including behind-the-ear (BTE), in-the-ear (ITE), and completely-in-canal (CIC) models, each catering to different levels of hearing loss and user preferences. Different types of over-the-counter (OTC) hearing aids may have varying requirements for battery shape and size. Traditional hearing aids often rely on disposable zinc-air batteries, which need frequent replacement. However, the growing demand for convenience and sustainability has led to an emphasis on rechargeable batteries in OTC hearing aids. These rechargeable batteries, typically lithium-ion or lipo batteries.
●Convenience and Ease of Use: No need to frequently replace disposable batteries. Easier for those with dexterity issues. Simple charging process, often with a docking station.
●Cost-Effective: Saves money over time by eliminating the need to buy disposable batteries.
●Consistent Performance: Provides a stable power supply, reducing the risk of sudden battery failure.
●Environmentally Friendly: Reduces battery waste and environmental impact.
●Rechargeable Lithium-Ion Coin Cell (Custom options: diameter ≥7.8mm; height ≥1.5mm)
●Shaped Pouch Lipo Battery Cell (Custom options: width ≥4.1mm; height ≥0.5mm)
●Shaped Metal Casing Lipo Battery Cell (Custom options: width ≥6mm; height ≥3.5mm)
Rechargeable Lithium-Ion Coin Cell
Shaped Pouch Lipo Battery Cell
Shaped Metal Casing Lipo Battery Cell
Grepow has provided dedicated energy solutions for high-tech applications in
bluetooth headsets for smart phones, notebook bridging function, body shaping
and training sensors, medical and health care equipment, wireless sensor and
network infrastructure and many more. For all these applications, Grepow offers
a range of rechargeable Lithium-Ion button cells and battery assemblies in
diameters from 7.8 - 24 mm with 6.5 mAh to 210 mAh.
PN. | Nominal Voltage | C rate | Capacity | Weigh | Diameter | Thickness |
3.7V | 1C | 6.5mAh | 0.3±0.1g | 7.8mm | 2mm | |
3.7/3.8/3.9V | 1C | 24/28/30/31mAh | 0.7/0.75±0.1g | 7.8mm | 5.4mm | |
3.7V | 1C | 9.5mAh | 0.45±0.1g | 8.5mm | 2.5mm | |
3.7/3.85V | 1C | 12.3/14.5mAh | 0.55±0.1g | 9.5mm | 2.5mm | |
3.85V | 1C | 38mAh | 0.95±0.1g | 9.5mm | 5mm | |
3.85V | 1C | 45mAh | 1.1±0.1g | 9.5mm | 5.4mm | |
3.7/3.9V | 1C | 13/16mAh | 0.6±0.1g | 10mm | 2.5mm | |
3.7/3.8/3.9V | 1C/5C | 41/46/49/52/55mAh | 1.1/1.3±0.1g | 10mm | 5.4mm | |
3.7/3.8/3.9V | 1C/5C | 18/20mAh | 0.9±0.1g | 12mm | 2.4mm | |
3.7V | 1C | 50mAh | 1.4±0.15g | 12mm | 4mm | |
3.85V | 1C | 68mAh | 1.65±0.15g | 12mm | 5mm | |
3.7/3.8/3.9V | 1C/5C | 68/70/75/77/87mAh | 1.8±0.1g | 12mm | 5.4mm |
Grepow offers a range of shaped pouch batteries that are perfectly suited to various terminal device shapes. We provide custom shaped Lithium-Ion pouch batteries as thin as 0.5mm and as narrow as 4.1mm. Available shapes include cruved, round, L-shaped, D-shaped, and C-shaped, ect. Grepow's shaped pouch batteries boast excellent performance and a cycle life of over 1000 cycles, operating within a temperature range of -50°C to 50°C / -40°C to 60°C, and can achieve fast charging at up to 5C.
Model NO. | Full-Charged Voltage | C rate | Capacity | Thickness | Width | Length |
4.2/4.35V | 1C | 7.5-140mAh | 0.5-0.85mm | 15-49mm | 34.3-55.5mm | |
4.2/4.35/4.4V | 1-30C | 13-430mAh | 1.6-7.87mm | 6.5-11mm | 13-60.8mm | |
4.2/4.35/4.4V | 1-10C | 5.7-1660mAh | 0.65-8.9mm | 5.8-50mm | 18.95-52.14mm | |
4.2/4.35/4.4V | 1-15C | 62-2120mAh | 7.5-2.3mm | 12-64.7mm | 15.5-54.64mm | |
4.2/4.35V | 5-8C | 1000-2125mAh | 5.7-6.55mm | 25.7-84.61mm | 48.5-73.7mm | |
4.2/4.35/4.4/4.45/4.8V | 1-45C | 7.5-4200mAh | 0.5-11.8mm | 6.5-50mm | 12-88.5mm | |
4.35/4.4/V | 1C | 30-685mAh | 2.45-5.7mm | 10.2-34.3mm | 12.2-48mm | |
4.2V | 1C | 290mAh | 5.95mm | 29.5mm | 32.66mm | |
4.2/4.35V | 1-3C | 50-1800mAh | 1.95-5.52mm | 18.8-34.3mm | 19.7-95.89mm | |
Pouch Bottle shape Lipo Battery | 4.35V | 15C | 505mAh | 6.4mm | 26.44mm | 37mm |
Pouch Octagon Lipo Battery | 4.2V | 5C | 605mAh | 4.58mm | 18.9mm | 71.95mm |
Pouch Ring shape Lipo Battery | 4.4V | 3C | 200mAh | 3mm | 38.2mm | 30mm |
Pouch Stepped shape Lipo Battery | 4.35/4.4V | 1/5C | 245/415mAh | 3.57/7.4mm | 20.79/37.2mm | 31.89/34.64mm |
Pouch Trapezoid Lipo Battery | 4.4V | 1/5C | 95/370mAh | 2.17/5.88mm | 24.49/32.28mm | 17/27.45mm |
Pouch U shape Lipo Battery | 4.2/4.35/4.4V | 1-5C | 165-750mAh | 3.15-6.94mm | 22.24-34.6mm | 21.55-31.97mm |
Grepow offers a diverse range of rechargeable metal casing shaped batteries to meet various application needs. Unlike pouch-shaped batteries, metal casing batteries provide enhanced safety by effectively preventing the risk of battery swelling. This advantage eliminates the need for additional design space to accommodate potential expansion, enabling more efficient use of available space. Consequently, these batteries are ideally suited for products with stringent space requirements, ensuring optimal compatibility with compact and demanding design specifications.
PN. | Nominal Voltage | C rate | Capacity | Weigh | Size (H*W*L) |
3.85V | 1C | 18mAh | 0.55g | 4.0*6*9mm | |
3.85V | 1C | 20mAh | 0.63g | 4.3*6*10mm | |
3.85V | 1C | 23mAh | 0.65g | 4.4*8*11mm | |
3.85V | 1C | 35mAh | 0.85g | 5.4*8*10mm | |
3.85V | 1C | 36mAh | 0.91g | 5.6*8*9mm | |
3.85V | 1C | 65mAh | 1.55g | 5.6*16*18mm | |
3.85V | 1C | 105mAh | 3.3g | 3.2*17*24mm | |
3.85V | 1C | 255mAh | 6.5g | 3.3*24*24mm | |
3.85V | 1C | 260mAh | 6.25g | 4.5*19*27mm | |
3.85V | 1C | 320mAh | 7.65g | 4.5*19*27mm | |
3.85V | 1C | 330mAh | 7.85g | 5.5*25*50mm | |
3.85V | 1C | 1200mAh | 20.3g | 8*34*42mm | |
3.85V | 1C | 1200mAh | 19.5g | 5.6*30*50mm | |
3.85V | 1C | 2300mAh | 52.6g | 9.9*30*60mm |
