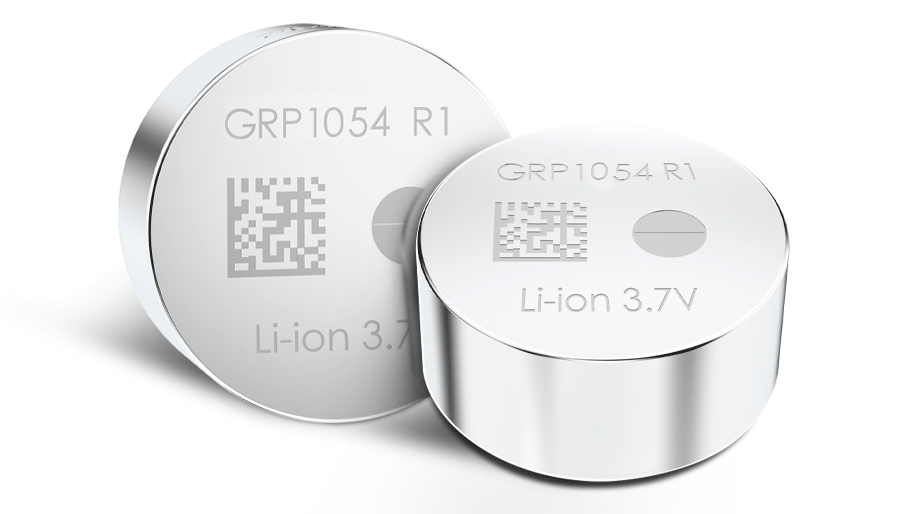

GRP1054R1 Lithium-ion Button Cell Battery

GRP1054R1 Lithium-ion Button Cell Battery

GRP1054R1 Lithium-ion Button Cell Battery

Grepow’s newly designed Lithium based button cell is the replacement for old school coin cell battery technology. With a maximum discharge rate of 20C all the power is just a zap away. Our innovated steel shell packing is design and production patented.
Online information
Product Details

Lithium Button Cell Features:

Self-developed Innovation Patents

42 patents

High Energy Density

specific energy density up to 556Wh/L

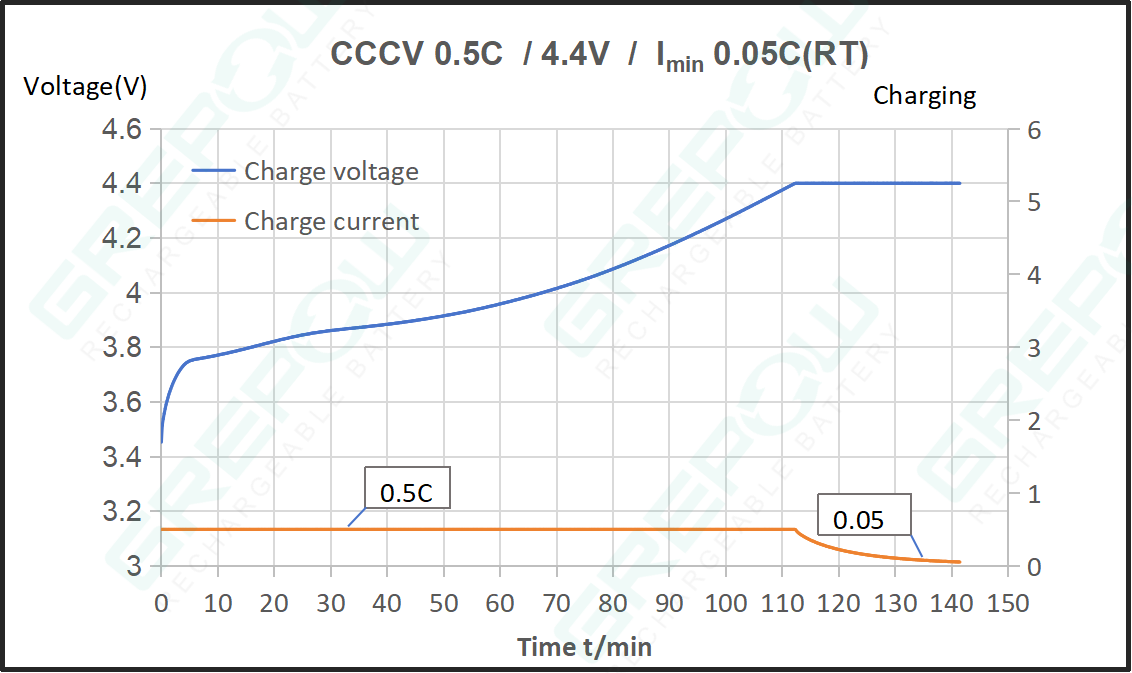

Excellent Fast Charging Capability

Support 5C charging, 12 min charge to 80%+

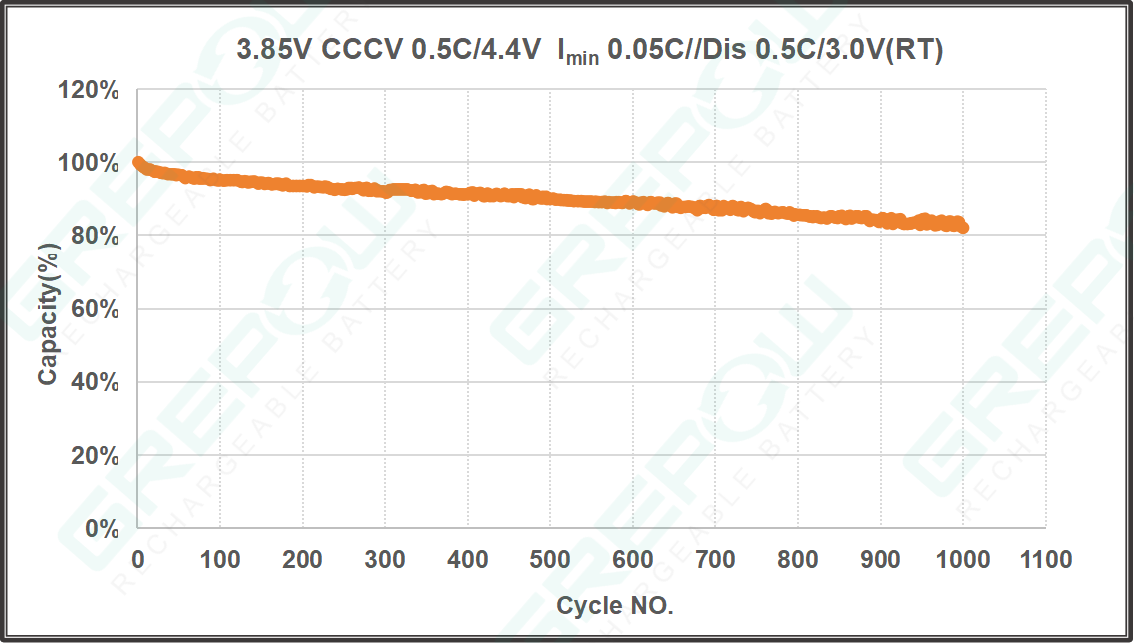

Long Cycle Life

 Up to 1000+ cycles

Support Customization

Diameter (≥7.8mm), height (≥1.5mm); and shapes custom available

Wide Temperature Range

Can be used at -50 ℃~50 ℃ or -20 ℃~80 ℃

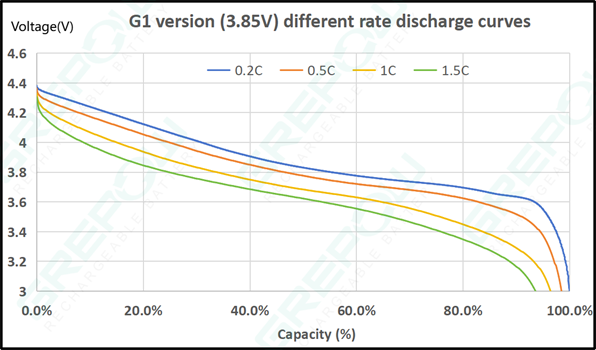

Support High Current Discharge

10C discharge rate

Complete battery certification

Comply with UL1642, IEC62133, FDA, ISO13485, UN38.3, etc.


GRP1054R1 Li-ion Button Cell Parameters

*The above parameters may have updated versions. Please refer to the information provided by the staff.


Dimensions (without Tags)

Grepow li-ion button cell GRP1054 Dimensions (without Tags)

Diameter [mm]: 10.1±0.1

Height [mm]: 5.45±0.15

Weight. approx [g]: 1.30±0.15


Why Choose GRP1054R1 Lithium ion button cell

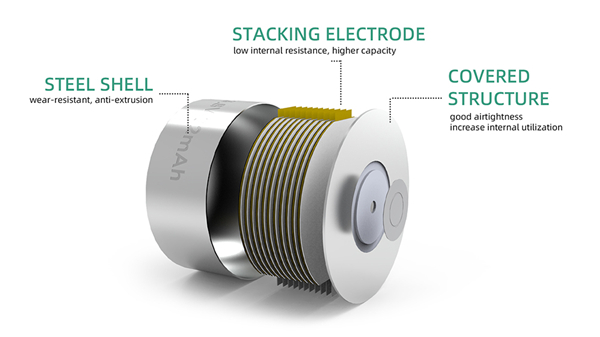

GRP1054R1 rechargeable coin cell adopts the laminated (stacking) production process, compared with the traditional coiling process button battery, the laminated process button battery products have the advantages of low internal resistance, good multiplier performance, high discharge platform voltage, long battery cycle life, etc. At the same time, the battery thickness and shape adaptability is stronger, and the application scene is more extensive!

Grepow stacking lithium-ion button cell has been recognized by the national invention patent

We have 42 patents for self-research and innovation, which are protected by patent law for customers

Strict quality control

Providing local instant customer support in China, USA and Germany

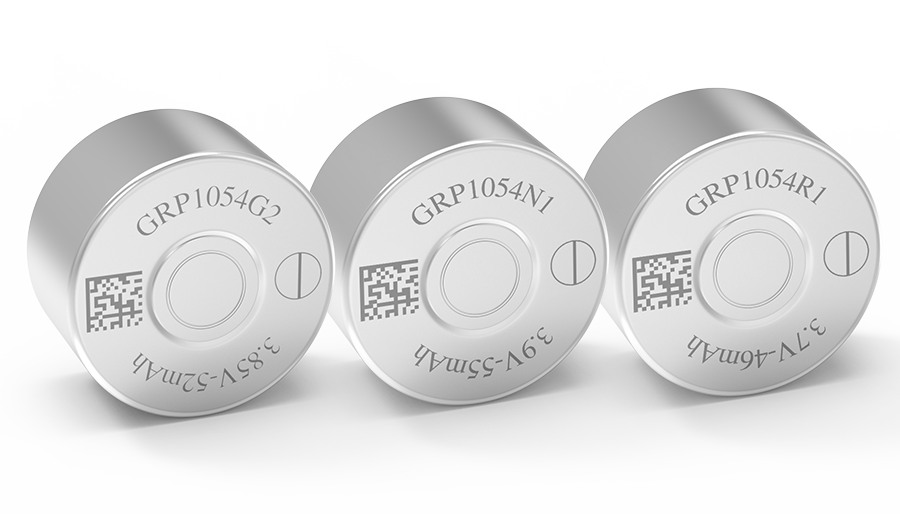

Examples for different coin-cell battery assemblies

You can get the following services

 Flexible support for customized solutions (including assembly solutions )

 Reliable and stable performance

 Samples and mass production available

 OEM, ODM services available

GRP1054R1 lithium Ion Button Cell Application

Grepow button batteries are used in wearable devices, medical devices, Internet of Things, smart home, automobiles, TWS headphones, etc. We can also customize rechargeable coin cell batteries according to customer needs, including the diameter, thickness, shape, capacity, voltage, etc. Coin cell batteries can make full use of the internal space of the device to provide greater capacity and longer endurance, for our R&D team works closely with customers to provide the suitably coustomizable power solution for their products.

General Process
Inquiry
01
Evaluation
02
Specification & Verification
03
Quotation
04
Sample Production
05
Price Verification
06
Production Schedule
07
Shipment
08
