●Self-developed Innovation Patents 42 patents ●High Energy Density specific energy density up to 556Wh/L ●Excellent Fast Charging Capability Support 5C fast charging, 12min Charge to 80%+ ●Long Cycle Life Up to 1000+ cycles | ●Support Customization Diameter (≥7.8mm), thickness (≥1.5mm); and shapes custom available ●Wide Temperature Range Can be used at -50 ℃~50 ℃ or -20 ℃~80 ℃ ●Support High Current Discharge 20C discharge rate ●Complete battery certification Comply with UL1642, IEC62133, FDA, ISO13485, UN38.3 and other certifications |
Chemistry: LiCoO2
Nominal Voltage: 3.9V
Nominal Capacity: 87mAh
Size: 12mm(Dia)*5.4mm(Thickness)
Watt Hour: 0.339Wh
Internal Impedance: ≤220 mΩ
Full Charged Voltage: 4.48V
Normal Charging Current: 43.5mA / 0.5C / 3hr
Max Charging Current: 435mA / 5C / 0.7hr
Charging Temperature: 0 to +45℃
Discharge Cut-off Voltage: 3.0V
Max Discharging Current:174mAh / 2C (continuous)
Discharge Peak Current: 435mAh / 5C
Discharge Temperature: -20 to +60℃
Weight: 1.80±0.15g
Storage Temperature: -20℃~20℃ (Less than 12 month)
Cell Pack: Yes
Customize Shape: Yes

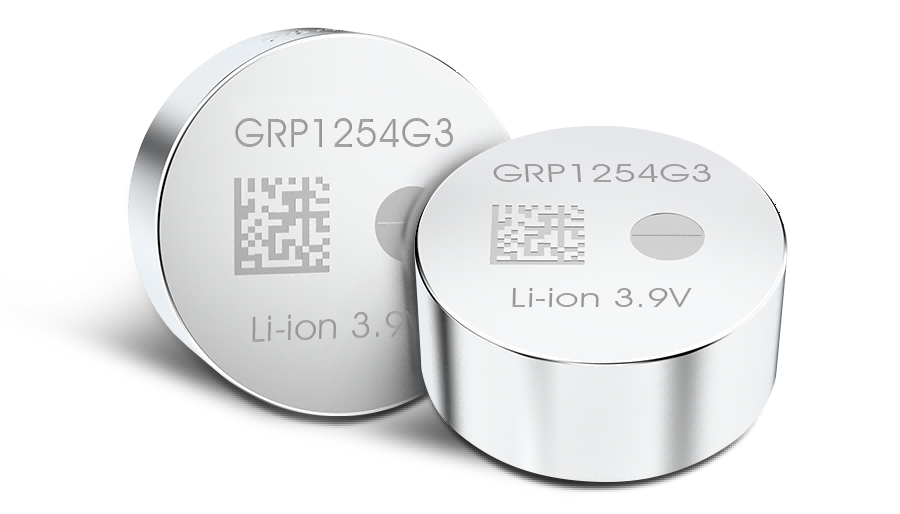

GRP1254G3 lithium Rechargeable button battery adopts the laminated (stacking) production process, compared with the traditional coiling process button battery, the laminated process button battery products have the advantages of low internal resistance, good multiplier performance, high discharge platform voltage, long battery cycle life, etc. At the same time, the battery thickness and shape adaptability is stronger, and the application scene is more extensive!
▶Grepow stacking lithium-ion button cell has been recognized by the national invention patent
▶We have 42 patents for self-research and innovation, which are protected by patent law for customers
▶Strict quality control
▶Providing local instant customer support in China, USA and Germany
● Flexible support for customized solutions (including assembly solutions )
● Reliable and stable performance
● Samples and mass production available
● OEM, ODM services available
Grepow button batteries are used in wearable devices, medical devices, Internet of Things, smart home, automobiles, TWS headphones, etc. We can also customize rechargeable coin cell batteries according to customer needs, including the diameter, thickness, shape, capacity, voltage, etc. Coin cell batteries can make full use of the internal space of the device to provide greater capacity and longer endurance, and Grepow R&D team works closely with customers to provide the best power solution for their products.
