Model No. | Nominal Voltage | Full Charged Voltage | C Rate | Nominal Capacity | Weight | Diameter | Thickness | Chemistry |

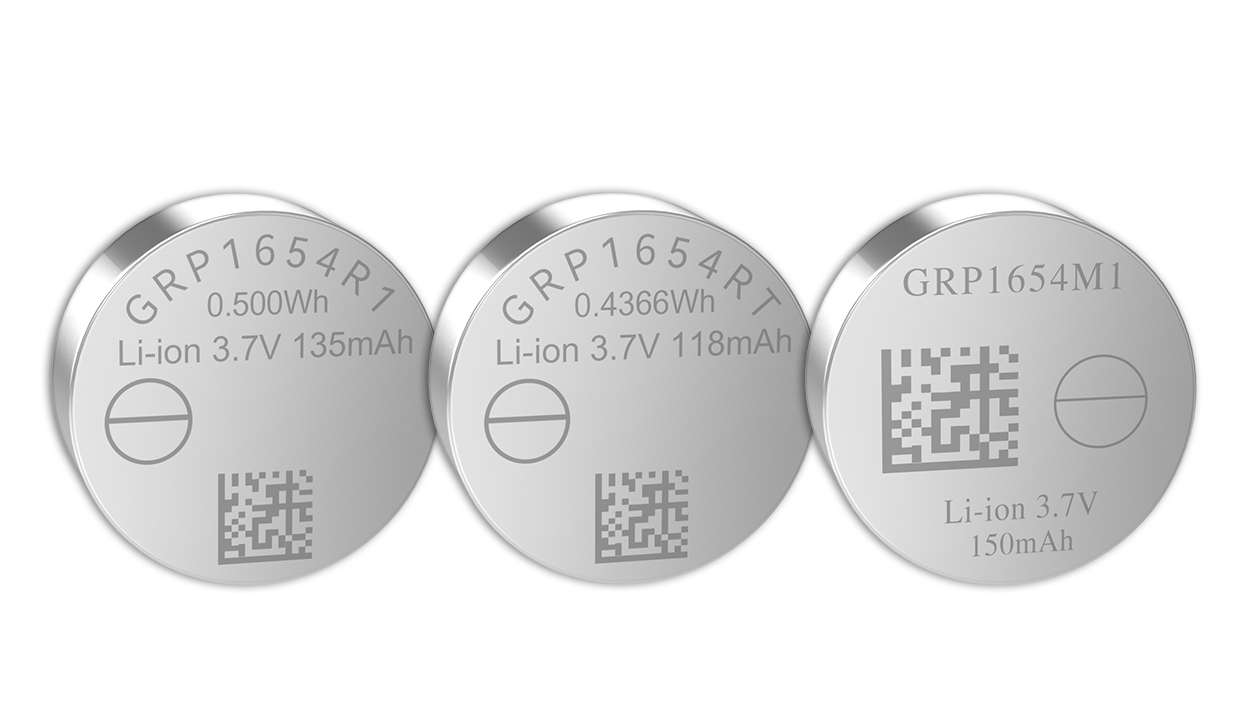

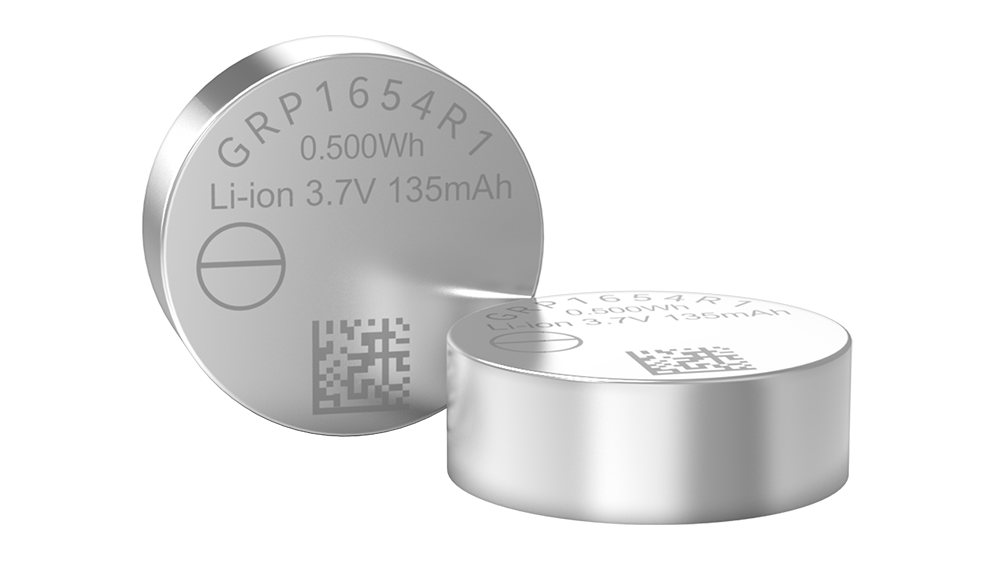

GRP1654R1 | 3.7V | 4.2V | 1C | 135mAh | 3.02±0.15g | 16mm | 5.4mm | LiCoO2 |
GRP1654RT | 3.7V | 4.2V | 10C | 118mAh | 2.85±0.2g | 16mm | 5.4mm | LiCoO2 |

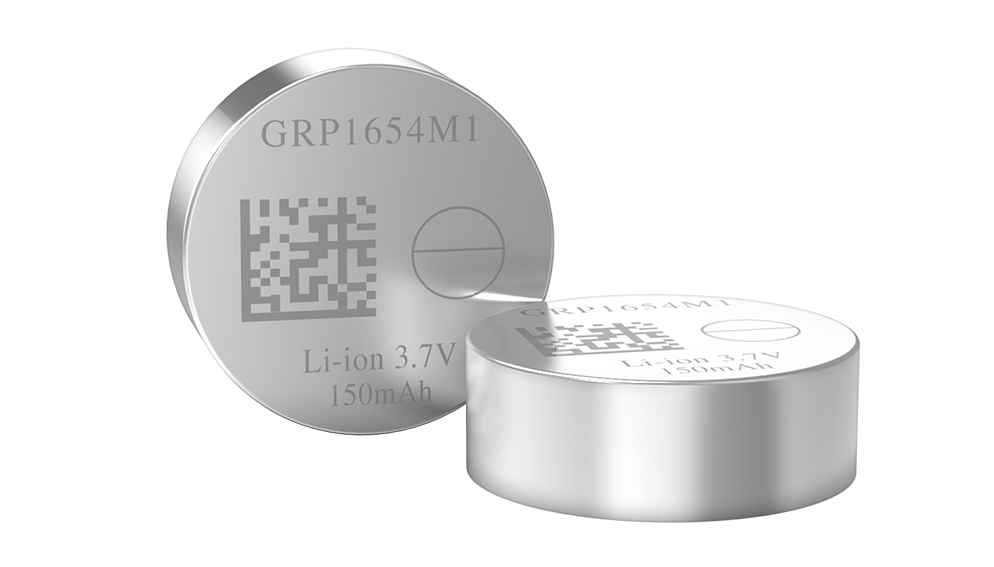

GRP1654M1 | 3.7V | 4.2V | 2C | 150mAh | 2.95±0.2g | 16mm | 5.4mm | NMC |
* Charging Temperature: 0 to +45℃
* Discharging Temperature: -20 to +60℃
* Storage Temperature: -20 to +40℃
●Self-developed Innovation Patents 42 patents ●High Energy Density Specific energy density up to 556Wh/L ●Excellent Fast Charging Capability Support 5C fast charging, 12 min charge to 80%+ ●Long Cycle Life Up to 1000+ cycles | ●Support Customization Diameter (≥7.8mm), height (≥0.8mm); and shapes custom available ●Wide Temperature Range Can be used at -50 ℃~50 ℃ or -20 ℃~80 ℃ ●Support High Current Discharge 10C discharge rate ●Battery Certifications (Varies by model) UL1642, IEC62133, FDA, ISO13485, UN38.3, etc. |
Grepow Button Cell Battery Catalog
|  |
|
|
|
|
Grepow button batteries are widely used in wearable devices, smart toys, medical instruments, IoT systems, smart home products, automotive electronics, and AI devices.
We also offer fully customizable rechargeable coin cell batteries tailored to customer requirements, including diameter, thickness, shape, capacity, and voltage.
By maximizing the internal space of devices, Grepow’s coin cells deliver greater capacity and longer runtime. Our R&D team collaborates closely with customers to develop optimal and customized power solutions for their products.
Grepow Lithium-ion coin cell battery adopts the stacking production process, compared with the traditional winding process coin cell battery, the laminated process coin cell battery products have the advantages of low internal resistance, good multiplier performance, high discharge platform voltage, long battery cycle life, etc., while the thickness and shape of the battery are more adaptable, and the application scenario is more extensive!
▶Grepow stacking lithium-ion button cell has been recognized by the national invention patent
▶We have 42 patents for self-research and innovation, which are protected by patent law for customers
▶Strict quality control
▶Providing local instant customer support in China, USA and Germany
● Flexible support for customized solutions (including assembly solutions )
● Reliable and stable performance
● Samples and mass production available
● OEM, ODM services available
*The above information may be updated. Please contact our sales representative for the latest productspecifications.
