Battery Type | Lithium iron phosphate (LiFePO4) | Cell Technology | Stacking Pouch Cell |
Nominal Voltage | 25.6V | Internal Resistance | ≤60 mΩ |
Maximum Series Connections | 2S | Cycle times | 4000 cycles (≥80% capacity retention) |
Maximum Parallel Connections | No upper limit | Dimensions (L x W x H) | 95×66×152mm |
Nominal Capacity | 2.5Ah | Weight | 850±100g |
Watt-hour | 64Wh | Waterproof and Dustproof Grade | IP54 |
Altitude overpressure level | Class II, within 4000m above sea level | Class II Protection | Support |
Certifications | UN38.3, CB, UL1973, CE-EMC, FCC, UKCA, Battery Directive, REACH, ROHS | ||
Full Charge Voltage | 28.8V | Maximum Charging Current | 6.5A/2C/0.75h |
Standard Charging Current | 0.5A/0.2C/7.5h | Charging Temperature(℃) | -10℃～60℃ |
Operating Current | 1.25A(32W) | Discharge Cutoff Voltage | 18.4V |
Standard Discharge Current | 0.5A(12.8W) | -20℃ Low-Temp Discharge Current [Continuous Discharge 30s] | 0.25A(6.4W) |
Maximum Continuous Discharge Current | 25A (640W) | +60℃ High Tempe Discharge Current [Continuous discharge 30s] | 6.5A(166.4W) |
Discharge Temperature | -20℃～60℃ | ||

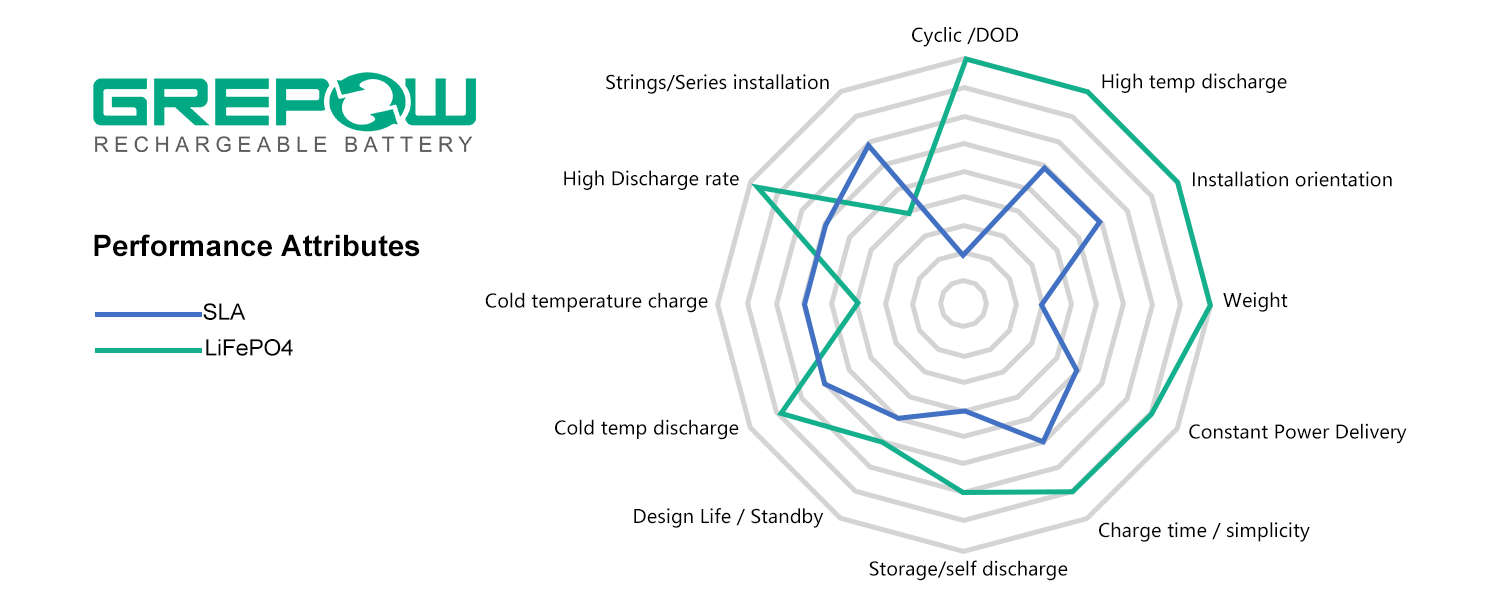

● UPS Battery Comparison of lead-acid (SLA) VS Lithium Iron Phosphate (LiFePO4)

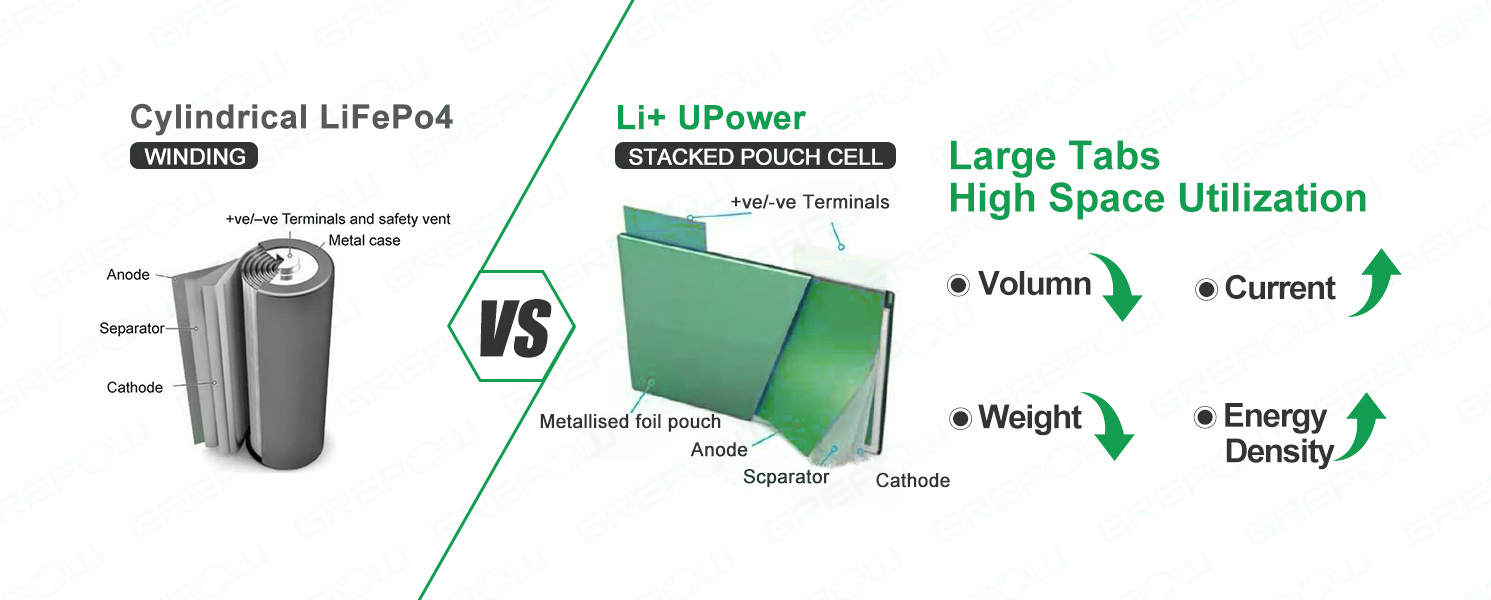

GREPOW Li+ UPower series use soft pack stacked LiFePO4 lithium iron phosphate batteries, which are a replacement for traditional lead-acid UPS batteries.
Due to the special stacking process, it can realize ultra-high rate charging and discharging performance, and the volume and weight can be reduced by about 50% under the same discharging current requirement, and it can even be discharged continuously with high current in -20℃ low temperature environment, with energy density ratio as high as 150Wh/kg, and the cycle life as high as 4,000 cycles, and maintenance-free cost, which can save a large amount of manpower cost for the enterprise and significantly reduce the total operating cost.
Battery Type | Discharge Rate | Cycle Life | Weight | Low-Temp Discharge | Fast Charge | Energy Density | Maintenance Cost |
Grepow LiFePO4 | Max.40C | 4000+ | -50% | -50℃ | Max.3C | 150Wh/kg | Maintenance free |
Conventional Lead-Acid | X | 400+ | +50% | -20°C | X | 50~70wh/kg | Maintenance per 3 Months |
Comparison | Higher discharge current | Longer life | Lighter | Lower temperature | Faster | Higher | More cost effective |
 | Grepow Li+ UPower Series UPS LFP Battery Modules are available with various international approvals including: UN 38.3, IEC62133, UL1642, UL991, UL1973, CE incl EMC, RoHs, 2006/66/EC, REACH, FCC. |
●24V 2.5Ah UPS Battery BMS Protection Board Function (Includes Secondary Protection)
Overcharge protection | Equalization function |
Short circuit protection | High and low temperature protection |
Charge overcurrent protection | Over-discharge protection |
Discharge overcurrent protection (with secondary protection) | |
Li+UPower series UPS power supply LFP batteries use high-rate lithium iron phosphate cells, which can support up to 3C fast charging and 40C high-current discharging; 250C discharging 0.3 seconds, fast response during power outage time to provide power support for equipment.
▍Li+ UPower Series 24V 2.5Ah UPS Power Battery Application Areas
Din-Rail DC-UPS, Industrial UPS
