Din-Rail Uninterruptible power supply (UPS)

Din-Rail Uninterruptible power supply (UPS)

Din-Rail UPS is a specially designed Uninterruptible Power Supply (UPS) that can be mounted on standard DIN rail, a standardized mounting system common in electrical equipment and typically used for mounting circuit breakers, relays, and other electrical components. The Din-Rail UPS are designed to provide reliable power protection and easy integration into existing electrical systems, fitting the needs of industrial environments. The Din-Rail industrial UPS are found in areas such as the Industrial Internet of Things, factories and manufacturing.

Why Din-Rail Rail UPS need Li-Iron Phosphate Batteries?

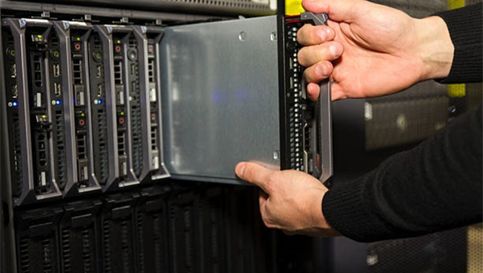

When power failure occurs in industrial plants, companies or data centers, DC Uninterruptible Power Supplies (DC UPS) provide uninterrupted power support for our equipment through instantaneous high-current discharges that can maintain critical up to several hours of 12V/24V power supply, giving us enough time to save important documents, rescue critical data and technology.

Transitioning critical equipment with a brief burst of power during an unnatural power interruption can give users time to safely shut down equipment or switch to another stable power source, such as a diesel generator, to prevent data loss or system crashes.


●Li+ UPower LiFePO4 Battery Module Features Advantages

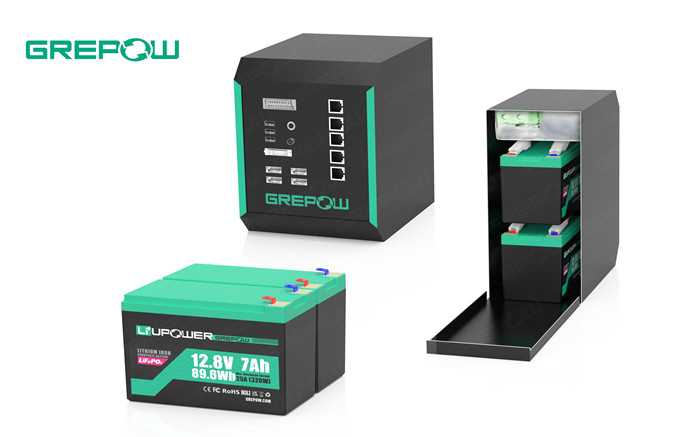

1. Modularized design, expandable capacity at ease

Grepow Li+ UPower series UPS batteries adopt modular design, BTU (Battery Unit) has two designs of 12V and 24V, through self-developed BMS, not only can be connected in series to reach up to 48V, but also can be connected in parallel with an infinite number of BTUs to expand the capacity to increase the capacity according to the demand, to ensure that the industrial equipment has enough buffer time and fulfill the factory integration requirements.


2. Perfect replacement battery for lead-acid batteries

Grepow Li+UPower is Perfect replacement battery for lead-acid batteriesThe voltage of LiFePO4 battery can be perfectly adapted to lead-acid batteries, in the case of power supply circuit can be directly replaced, at the same time have: completely maintenance-free, small size, light weight, safety and other advantages, which is the market trend. Like Siemens, Phoenix, Schneider and many other UPS pioneer enterprises, are increasing the li-iron phosphate battery series to gradually replace the environmentally unfriendly series of lead-acid batteries.

Completely maintenance-free

Fast charging time

Stable discharge at low temperatures

Long service life even at high temperatures

No need for ventilation in the installation location


Battery Type

Discharge Rate

Cycle Life

Weight

Low-Temp Discharge Performance

Fast Charge

Energy Density

Maintenance Cost

Grepow LiFePO4 Battery

Max.40C

4000+

-50%

-50°C

Max.3C

150Wh/kg

Maintenance free

Conventional Lead-Acid

X

400+

+50%

-20°C

X

50~70Wh/kg

Maintenance per 3 months

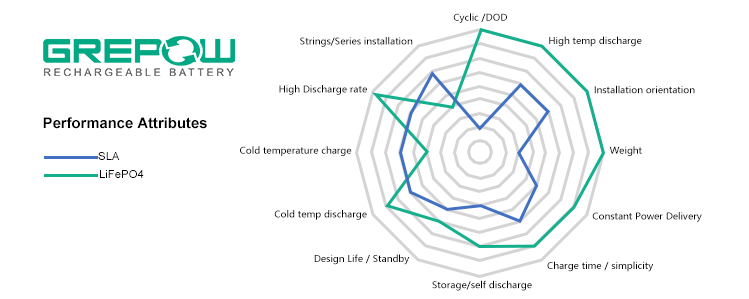

Comparison

Higher discharge current

Longer life

Lighter

 Lower temperature

Faster

Higher

Better cost effective


  • Li+UPower Series UPS Batteries

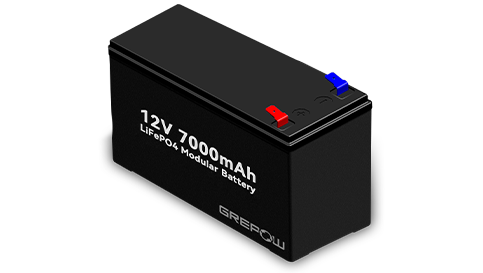

  • 12V 7Ah LFP Din-Rail UPS Modular Battery

  • 24V 3.7Ah LFP Din-Rail UPS Modular Battery

  • Grepow Li+UPower UPS LFP batteries specially designed for Din-Rail DC UPS, industrial control machine UPS, are the perfect replacement for SLA batteries.

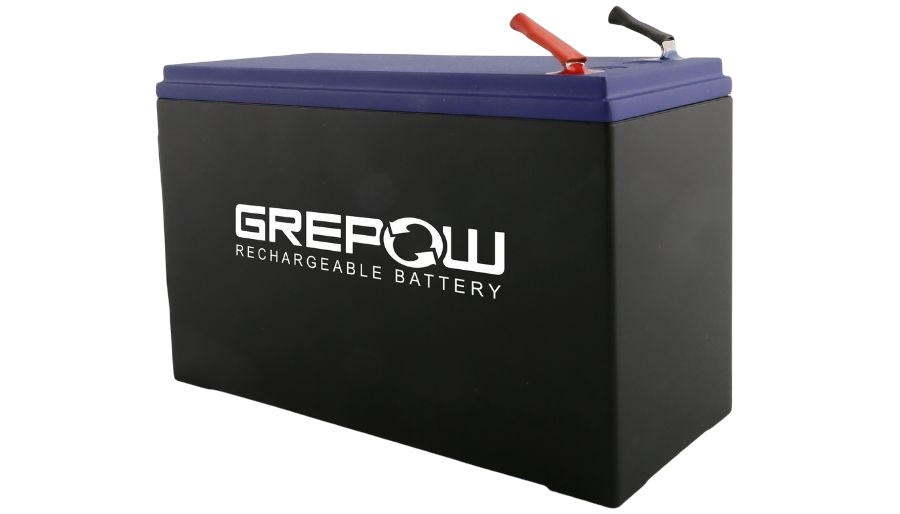

    Modular lithium iron phosphate batteries specially designed for Din-Rail DC UPS, industrial control machine UPS, are the perfect replacement for lead-acid batteries. The shell and size of the battery are perfectly adapted to achieve higher capacity and higher discharge current with the same volume of lead-acid battery. ODM/OEM is supported.

    To meet the demand of the same range, make your UPS power supply, lighter and smaller than the same grade in the market.


    Din-Rail UPS Battery Product Certifications

    Grepow's Li+ UPower series of UPS battery modules are available with a range of international approvalsGrepow's Li+ UPower series of UPS battery modules are available with a range of international approvals including: UN 38.3, IEC62133, UL1642, UL991, UL1973, CE incl EMC, RoHs, 2006/66/EC, REACH, FCC.


    Din-Rail UPS Battery BMS Protection Board Functions

    Overcharge protection

    Short circuit protection

    Charge overcurrent protection

    Overdischarge protection

    High and low temperature protection

    Discharge overcurrent protection

    Equalization function


    Note: If you need to know more about UPS power solutions, please find Grepow, our company supports flexible customization!

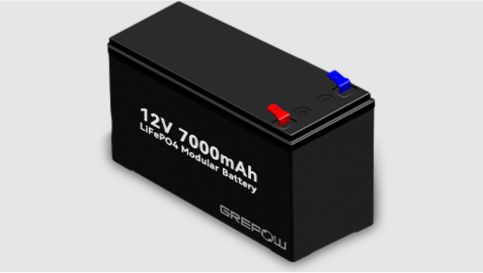

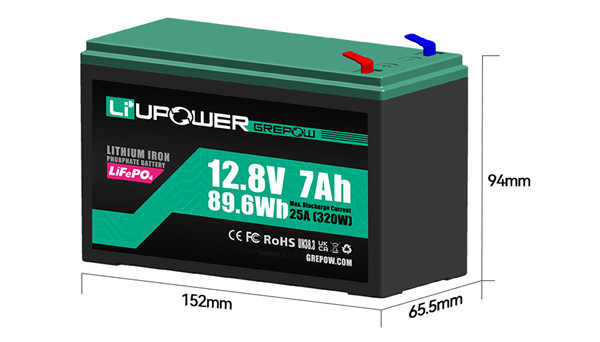

  • Basic Specifications of 12V 7Ah LiFePO4 Din-Rail UPS Modular Battery

    Battery Type

    Lithium iron phosphate (LFP)

    Cell Technology

    Stacked pouch cell

    12V 7Ah LiFePO4 Din-Rail UPS Modular Battery

    Nominal Voltage

    12.8V

    Internal Resistance

    ≤33 mΩ

    Max. Series Connection

    4

    Cycles

    4000 cycles

    Max. Parallel Connection

    10

    Size (L x W x H)

    152*65.5*94mm

    Nominal Capacity

    7Ah

    Weight

    1060±100g

    Watt-hour

    89.6Wh

    Waterproof and Dustproof Grade

    IP54

    Overvoltage Category

    Class II, to 4000m

    Secondary Protection

    Available

    Certifications

    UN 38.3, IEC62133, UL1642, UL991, UL1973, CE incl EMC, RoHs, 2006/66/EC, REACH, FCC


    Charging Parameter of 12V 7Ah LiFePO4 Din-Rail UPS Modular Battery

    Full Charge Voltage

    14.6V

    Maximum Charge Current

    4A/0.5C/3h

    Standard Charge Current

    1.4A/0.2C/7.5h

    Charging Temperature

    -10℃~60℃



    Discharge Parameter of 12V 7Ah LiFePO4 Din-Rail UPS Modular Battery

    Working Current

    3.5A

    -20℃ Low Temp Discharge Current [Continuous discharge 30s]

    0.56A (14.336W)

    Standard Discharge Current

    1.4A

    +60℃ High Temp Discharge Current [Continuous Discharge 30s]

    1.4A (35.84W)

    Max Continued Discharge Current

    25A (320W)

    Discharge Cut-off Voltage

    17.6V

    Discharge Temperature

    -20℃~60℃


    Note: If you need to know more about UPS power solutions, please find Grepow, our company supports flexible customization!

  • Basic Parameters of 24V 3.7Ah LiFePO4 Din-Rail UPS Modular Battery

      Battery Type

       Lithium iron phosphate (LFP)

      Cell Technology

       Stacking Pouch Cell

    24V 3.7Ah LiFePO4 Din-Rail UPS Modular Battery

      Nominal Voltage

       25.6V

      Internal Resistance

       ≤60 mΩ

      Max.Series Connections

       2S

      Cycle times

       4000 cycles

      Max. Parallel Connections

       No upper limit

      Dimensions (L x W x H)

       152*66*95mm

      Nominal Capacity

       3.7Ah

      Weight

       1100±100g

      Watt-hour

       94.72Wh

      Waterproof and Dustproof Grade

       IP54

      Overvoltage Category

       Class II, to 4000m

      Secondary Protection

       Available

      Certifications

     UN38.3, CB, UL1973, CE-EMC, FCC, UKCA, Battery Directive, REACH, ROHS

    Charging Specifications of 24V 3.7Ah LiFePO4 Din-Rail UPS Modular Battery

    Full Charge Voltage

     28.8V

    Maximum Charging Current

     6.5A/1.7C/0.75h

    Standard Charging Current

     0.74A/0.2C/7.5h

    Charging Temperature

    -10℃~60℃


    Discharge Specifications of 24V 3.7Ah LiFePO4 Din-Rail UPS Modular Battery

    Operating Current

     1.85A (47.36W)

    Discharge Cutoff Voltage

     18.4V

    Standard Discharge Current

     0.74A (19W)

    -20℃ Low-Temp Discharge Current [Last 30s]

     0.74A (19W)

    Maximum Continuous Discharge Current

     25A (640W)

    +60℃ High Temp Discharge Current [Last 30s]

     45A (1152W)

    Discharge Temperature

     -20℃~60℃


    Note: If you need to know more about UPS power solutions, please find Grepow, our company supports flexible customization!
