Grepow 12V 100Ah LiFePO4 battery

Grepow 12V 100Ah LiFePO4 battery

Editorial:MikeLam Issue Date:2020-05-05 Views:4564

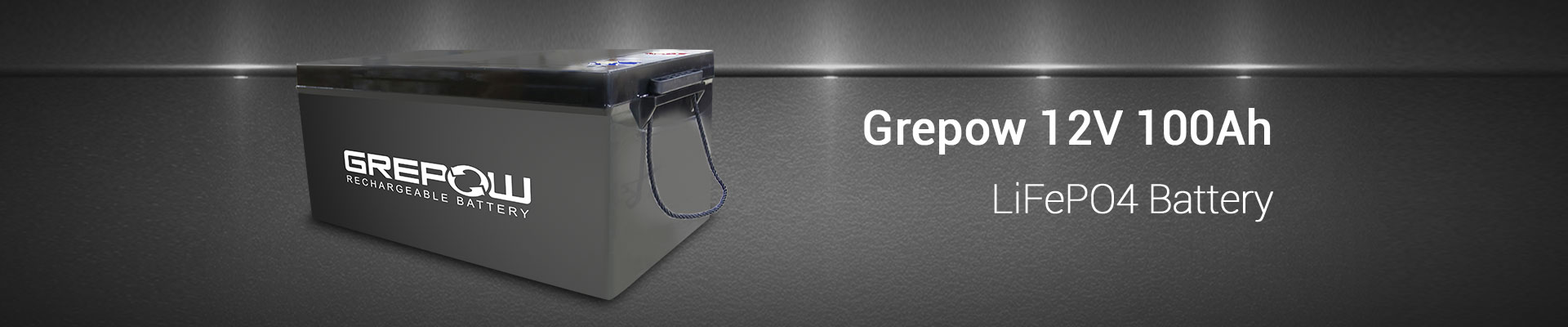

Grepow 12V 100Ah LiFePO4 battery banner


Grepow 12V 100Ah LiFePO4 battery


Grepow 12V 100Ah LiFePO4 battery


    Used on home solar system, UPS and other industrial applications. Embeds BMS system for Lithium Iron Phosphate cell (LiFePO4) that offers a high level of safety and long lifespan. And Grepow Lithium Iron Phosphate modular batteries are drop-in replacement for lead-acid batteries.



Properties
Parameters
                ChemistryLithium Iron Phosphate cell (LiFePO4) / Lithium-ion battery
                Capacity (Ah)                100Ah (100,000mAh)
                Nominal Voltage (V)                12.8V
                Energy
                1280Wh
                Internal Impedance
                ≤5m Ohm
                Charge voltage
                14.6V
                Charge current
                50A / 100A (MAx.)
                Discharge current
                50A / 100A (Max.)
                Discharge cut-off voltage
                8.8±0.3V
                Operating Temperature
                Charge: 0~+45℃
                Discharge: -20~+60℃ (0.2C discharge current be recommended at -20℃ or 60℃)
                Storage Temperature
                Less than 1 month (-20℃~+60℃); Less than 6 months (-20℃~+30℃)
                Weight
                ≈15kg
                Dimensions                327*217*172mm
                ApplicationsUPS battery, home solar system, forklift, kayaking, boat, golf cart, street lamp

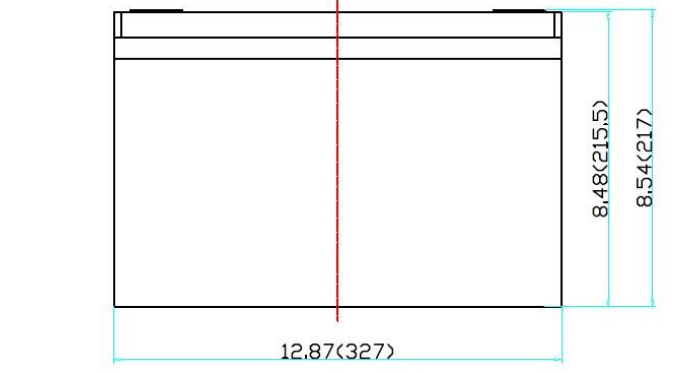

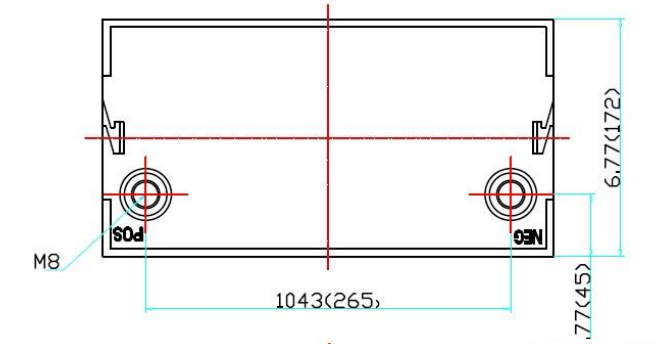

    Structure Drawing


12V 100Ah structure drawing


12V 100Ah structure drawing
