● Extremely light weight 15% Weight Reduction for the Same Capacity ● High energy density High energy density can reach up to 275Wh/kg ● Long cycle life Over 80% capacity after 1000 cycles ● Customizable shape / size | ● Complex-coated separator, more safety ● Can be equipped with intelligent protection board: BMS ● Si material, over-discharge resistance (2.5V) ● Long endurance ● High temperature storage ● Fast charging capability |
Model No.: TAA200006S5X9S
Nominal voltage: 22.2V
Configuration: 6S1P
Capacity range: 20000mAh
Discharge C Rate: 5C
Height: 58±2mm
Width: 76±2mm
Length: 192±5mm

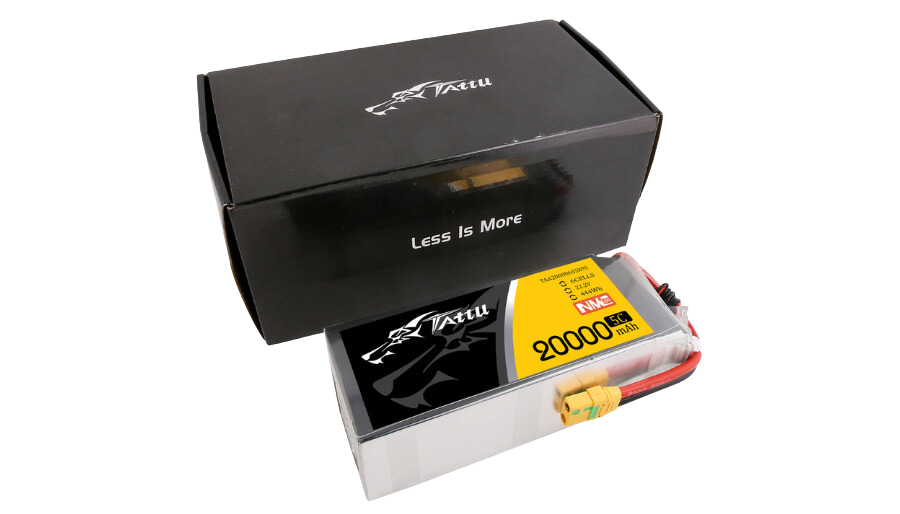

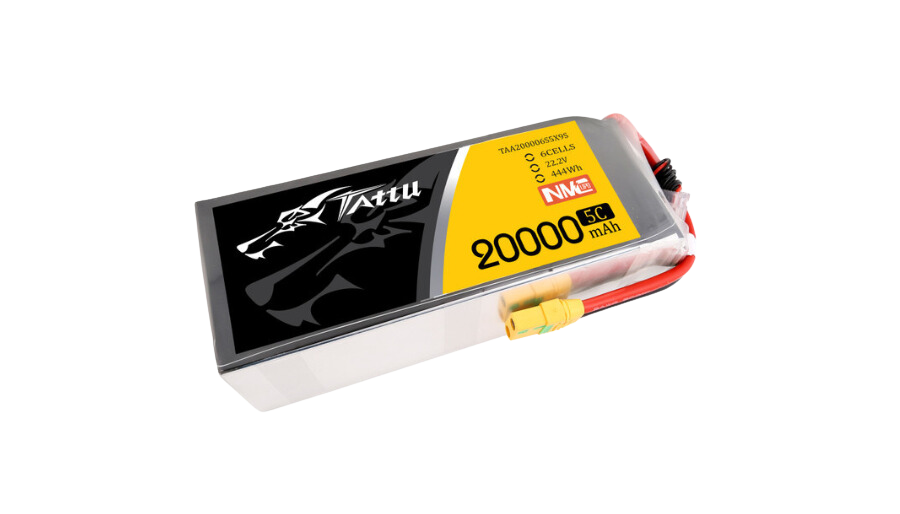

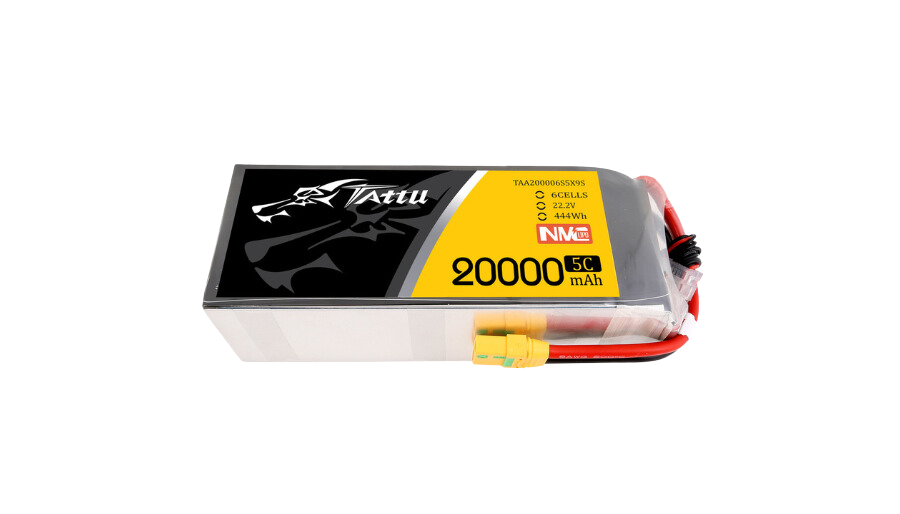

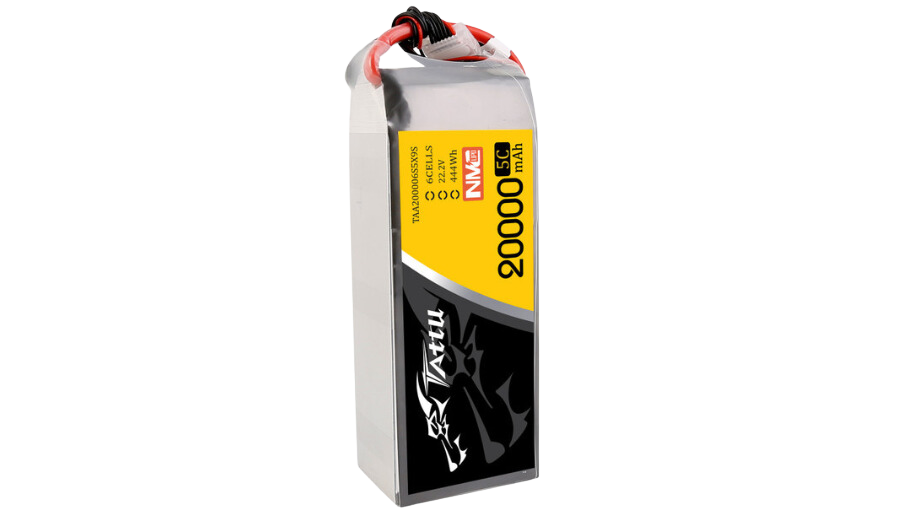

NMC 20000mAh 22.2V 5C 6S1P Lipo Battery Pack is a new kind of Semi-solid lipo battery with high energy density and long service life. It is suitable for a variety of small and medium drones, which always are commonly used for mapping, inspection, surveying, delivery industry etc. They usually need 1-3C nominal discharge current. The advantage of lighter weight, small volume, and long flight time are fully used.
▶ Source manufacturer, physical factory, strong R&D production capacity, short delivery time and sufficient stock.
▶ Self-developed battery cells, sufficient capacity, refusal of false label, guaranteed capacity
▶ Strict quality control: Construct a comprehensive quality system from parts to finished products to ensure product quality
▶ Safe and reliable: conform to various domestic and international battery certifications
▶ Perfect service system: Quickly respond to customer problems and provide solutions
▶ Instant local customer support in China, USA and Germany
● Flexible support for customization
● Reliable and stable performance
● Sample and mass production available
● OEM and ODM services are available
20000mAh NMC battery pack is suitable for a variety of small and medium drones, which always are commonly used for mapping, inspection, surveying, delivery industry etc. They usually need 1-3C nominal discharge current. The advantage of lighter weight, small volume, and long flight time are fully used.
