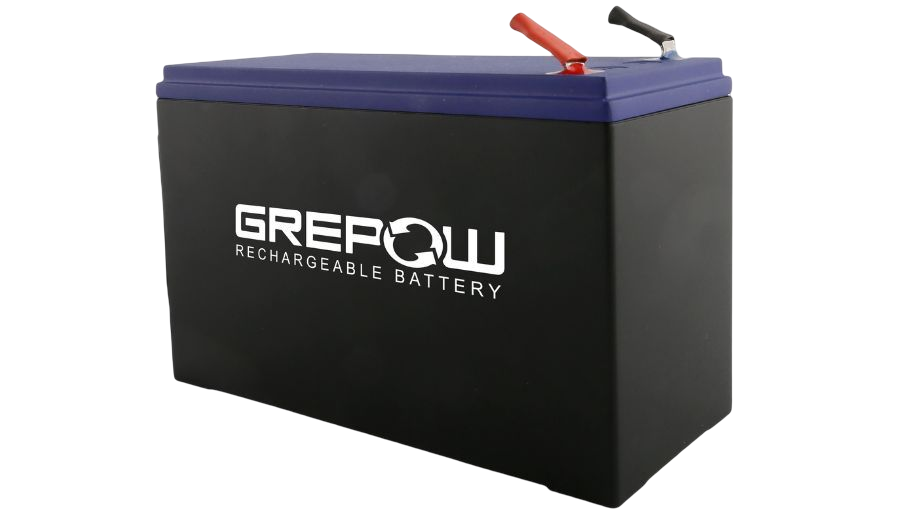

24V 50Ah LiFePO4 Modular Battery

24V 50Ah LiFePO4 Modular Battery

24V 50Ah LiFePO4 Modular Battery

24V LiFePO4 50000mAh modular battery (Nominal Voltage=25.6V) is a LFP modular battery developed by Grepow, features in high rate, small size and lightweight, high durability, low maintenance cost, efficient battery management, support for flexible customization, and many advanced core technology patents, etc. so that it's as a power supply popular among various fields.
Online information
Product Details

LFP Modular Battery Features

High power and good cycles performance

High safety standard

Safety unit with integrated monitoring system provides more safety in use

Longer working time

Voltage / capacity scalable

Modular and customized to provide high energy density, saving space and weight

BMS enables high power discharge with multiple control and protection functions

Easy to install in series and parallel

24V LiFePO4 50000mAh Modular Battery Specs

Product Name

Grepow 24V LFP 50Ah Modular Battery

Dimensions (L x W x H)

327 x 172 x 217 mm (Approx.)

Cell Chemistry

Lithium Iron Phosphate (LiFePo4/LFP)

Charging Mode

Constant Current and Constant Voltage

Cell Type

Pouch cells

Charge Current

25A (Standard)/50A (Max.)

Nominal Voltage


Discharge Current

10A (Standard); 100A (Max Continued )

Nominal Capacity

50Ah (50,000mAh)

Operating Temperature

Charge (0~+45℃); Discharge (-20~+60℃)

Internal Impedance


Power Connector


Discharge cut-off voltage


Enclosure Protection


Nominal Weight

15 KG (Approx.)

Case Material


Why Choose Grepow 24V 50Ah LFP Modular Battery

Grepow self-developed and self-manufactured LFP Modular Batteries

Grepow LiFePO4 modular battery uses self-developed innovative technology to achieve the high power performance of lithium iron phosphate battery and also extend the service life of the battery. Grepow provides modular lithium iron phosphate battery: cell customization + battery management system (BMS) + structural design of the integrated power system customization services, using proprietary battery raw material formula, high temperature resistance, high energy density ratio The battery is made of lithium iron phosphate (LiFePO4). Lithium iron phosphate material has the advantages of environmental protection, non-toxic, high working voltage, high performance, etc. We can also customize the modular lithium iron phosphate battery for different industries according to the actual needs of users, so that your products have a greater competitive advantage.

  Source manufacturer, physical factory, strong R&D production capacity, short delivery time and sufficient stock

  Self-developed battery cells, sufficient capacity, refusal of false label, guaranteed capacity

  Strict quality control: construct a comprehensive quality system from parts to finished products to ensure product quality

  Safe and reliable in accordance with a variety of domestic and international battery certification

  Perfect service system: quickly respond to customer problems and provide solutions

  Provide local instant customer support in China, USA and Germany

We offer the following services.

  Flexible support for customized solutions

  Reliable and stable performance

  Sample and mass production available

  OEM, ODM services available

Modular LFP Battery Applications

  The lithium iron phosphate modular batteries developed and produced by Grepow are widely used in communication power systems, UPS power systems, off-grid or micro-grid systems, security and protection systems, emergency lighting power supplies, portable medical equipment, and any fast-charging high-capacity, high-voltage or high-rate starter power equipment.

General Process
Specification & Verification
Sample Production
Price Verification
Production Schedule
