Features of pouch cell battery | Battery Monday

Features of pouch cell battery | Battery Monday

Editorial:Danae Issue Date:2021-02-23 Views:2289

We have briefly introduced the pouch cell (also called soft pack) battery in our first video, and this video will introduce its features in detail for you.

Introduction

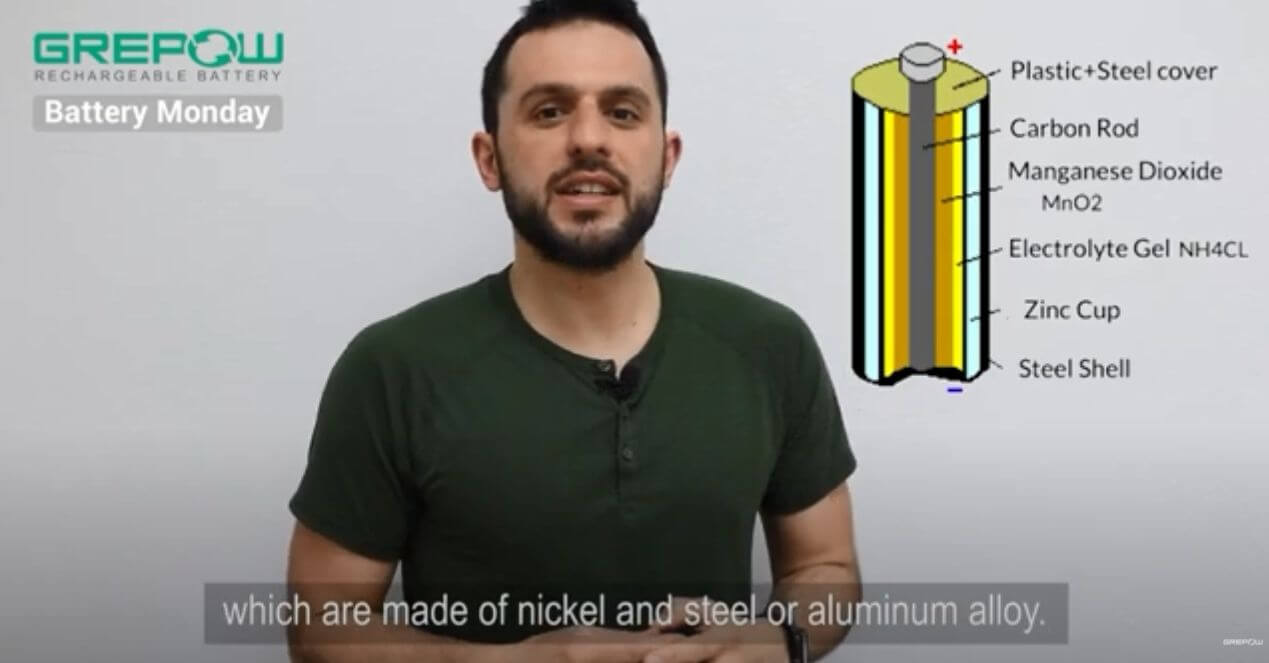

One of the differences between pouch cell batteries and other batteries is the material of the casing. Cylindrical batteries have a hard casing, which are made of nickel and steel or aluminum alloy.

cylindrical batteries'cases are made of nickel and steel or aluminum alloy | Grepow

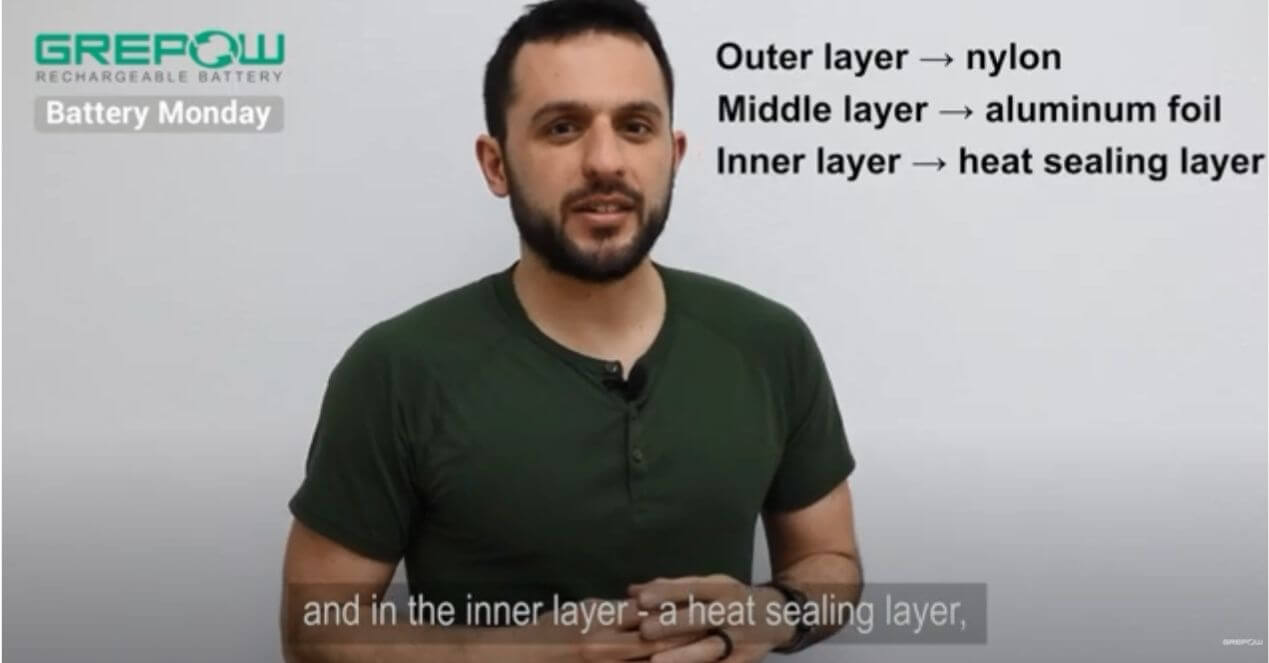

A pouch cell on the other hand consists of many types of layers to form a multilayer film consisting of an outer layer, middle layer, and an inner layer.Outer layer consists of nylon, middle layer contains an aluminum foil, and in the inner layer - a heat sealing layer, which allows for better heat dissipation.

pouch cell's csae-outer layer consists of nylon, middle layer contains an aluminum foil, inner layer is a heat sealing layer | Grepow

Features

There are four distinct advantages for a pouch cell compared to cylindrical batteries.

Advantage 1: They’re Safer

Firstly, it has a very high barrier property; secondly, it has a good heat sealing property; thirdly, the material is resistant to electrolyte and strong acid corrosion; it also has good ductility, flexibility and mechanical strength, and this advantage makes the pouch cell battery safer. When a safety hazard occurs, the pouch cell battery will only swell and crack at most. Unlike the steel shell battery where a sudden explosion phenomenon might occur.

 Advantage 2: Better space utilization

The pouch cell’s exterior is flexible thus making the most efficient use of space and can reach a packaging efficiency of 90-95%, which is unreachable by other types of casing. The flexibility will allow the external case to form to the battery, rather than the other way around.

Advantage 3: Higher energy density

Eliminating the metal case can reduce weight. In terms of weight, a pouch cell battery of equivalent capacity is 40% lighter than a nickel-steel cased lithium battery and 20% lighter than an aluminum-cased battery. In terms of energy density, pouch cell batteries of the same size are usually 10-15% higher than steel-cased batteries and 5-10% higher than aluminum-cased batteries. Grepow's pouch cell batteries can reach a single energy density of 280Watt hours per kg or more, which is much higher than most of the hard-shell lithium batteries on the market.

 Advantage 4: Customizable

Pouch cell batteries can be custom designed according to the specific requests of the customer. With their soft exterior and ability to be reshaped and sized, custom designed packs can be formed to meet all challenges. Cylindrical batteries adhere to only a handful of sizes, the most well known sizes are CR123, and 18650. On the other hand, pouch cells are not as limited and there are thousands of sizes available on markets today.

Video

Link: https://www.youtube.com/watch?v=cZtlEoBTsXY

Learn More About Grepow

This is all that we’re covering today. If you have any questions about today’s topic or have any battery-related things you want to know, please feel free to contact us by email at info@grepow.com. Or if anything what we could improve and what you will be willing to learn, email us, we will read the comment and provide a high-quality battery knowledge tutorial.

Grepow official website: https://www.grepow.com/

Grepow Facebook: https://www.facebook.com/grepowbattery

Grepow Linkedin: Grepow Battery

We would keep updating the Battery Monday every Monday!
