BMS - Key Design of Smart Flight Battery

BMS - Key Design of Smart Flight Battery

Editorial: Issue Date:2019-11-10 Views:2222

Flight batteries have some disadvantages, such as low storage, short life cycles, series or parallel circuits, safety, difficulty in estimating battery power, etc. In addition, the various characteristics of the battery are very different. BMS systems, often referred to as Battery Manager Systems. The difference between a smart flight battery and a standard flight battery is the battery management system, it determines the high price of smart flight batteries. So is it worth it?

What is smart flight battery

With BMS-designed drone batteries, it's called a smart flight battery. BMS literally means that the battery plus management plus the system, is it really so simple? Quite rightly, that's what engineers started designing BMS for. At present, the common BMS functions of lipo batteries on the market are voltage measurement, communication, SoC estimation, SoH estimation, anomaly warning, abnormal protection, current balance, control circuit, temperature measurement, current measurement.

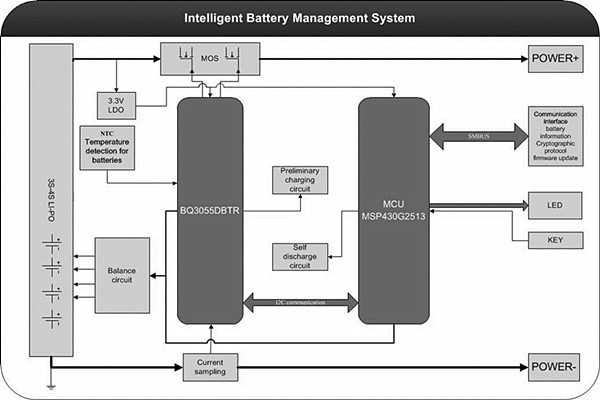

BMS smart flight battery

Product features of smart flight battery

Use Tattu 12S drone battery as an example. Its standard voltage is 44.4v and its standard capacity ranges from 12,000mah to 40000mah. The charging voltage is 50.4V, 4.2V per core, and the maximum charging current is 24A. The discharge operating temperature is between 10 degrees Celsius and 60 degrees Celsius, and the charging operating temperature is between minus 15 degrees Celsius and 60 degrees Celsius. The specific temperature can be adjusted according to the design formula of the cell.

Smart power indication

The battery management system for the smart flight battery is designed with four highlightLED indicators that automatically identify the status and indicate the power when discharged or charged. When the battery is shut down, press the button shortly and the LED indicates that the battery is about 2S and then goes out.

Battery life indication

In the battery off state, the long button 5S or more, the power indicator shows the battery life description. The core can be used up to 500 times by default, and the LED light indicated by the battery counts the number of times the user has been used, indicating that the battery life is still available. Please use it as appropriate.

BMS drone battery

Charging Smart Alarm

During the charging process, the battery detects the status in real time, and alerts the charge overvoltage, overcurrent and overtemperature. Alarms are displayed as red and white lights are lit at the same time, and if not operated, the light indication is automatically turned off when it goes into sleep to avoid power consumption. When the keys are viewed, a warning is indicated again.

Low pressure or pressure differential alarm

When the smart flight battery is discharged, the BMS will flash the alarm if a low voltage (less than 3.3V) or a single cell core voltage difference greater than 50mV is detected.

Full power storage function

When a normal flying battery is not in use for a long time, the battery is self-consumption. At this time, a BMS-owning smart flight battery automatically activates the intelligent storage function, discharges to the storage voltage, to ensure the safety of battery storage.

Smart sleep function

When the smart flight battery is not in use, it will automatically hibernate after 10 minutes, saving battery power. If the user forgets to replenish the battery, when the single voltage is less than 3.58V, it will enter the deep energy-saving mode, can ensure that the battery safe storage for 5 months or so, if more than 5 months have not been used and did not replenish the power, based on safety considerations, will prohibit charging, to ensure safety.

bms tattu drone battery

Data communication function

Tattu smart flight battery design has I2C communication, follows the SMBUS protocol, can obtain real-time battery information through communication. For example, current voltage, current, battery usage, etc. Flight control can also be connected to this and communicate.

Battery logging function

Smart flight battery is designed with special logging capabilities that can record data for the entire life of the battery. The battery log information contains the single voltage, current, battery temperature, number of cycles, number of abnormal states, etc. Users can view this log data via the phone APP connection battery.

Battery self-heating function

When using the battery, the BMS automatically monitors the ambient temperature. When the ambient flight temperature is lower than the battery's own discharge temperature, its interior automatically generates heat to bring the battery temperature to the flight temperature. To some extent, the smart flight battery ensures the normal flight of the drone.

Grepow Battery Cells Make up TATTU smart Battery

Key Design of Smart Flight Battery

In the flying crowd, there's a buzzword, “does your drone battery have protection”. Whether the BMS function on a battery is complete can be seen whether a battery manufacturing company's battery technology is excellent. Grepow’s self-owned brands "格氏ACE", "GENS ACE" and "TATTU" are renowned home and abroad. We have five specialized battery technologies, one of which is BMS technology. Tattu has become a benchmark for the drone battery industry, popular with drone companies and users. Not only are we finished with batteries, but we also accept battery customization, including battery size, weight, high voltage, high capacity, connectors, BMS features, etc.

Tattu battery energy density can reach 260wh/kg. If you are interested in our products, please don't hesitate to contact us at any time! Email: info@grepow.com Grepow Website: https://www.grepow.com/
