Rechargeable Button-Cell Battery 3.7V 66mAh GRP1254

The specification is suitable for the performance of Lithium-Polymer (LIP) rechargeable  button-cell battery produced by the SHENZHEN GREPOW BATTERY CO., LTD.

MODEL

GRP1254 66mAh 3.7V

Rechargeable Button-Cell Battery Specification

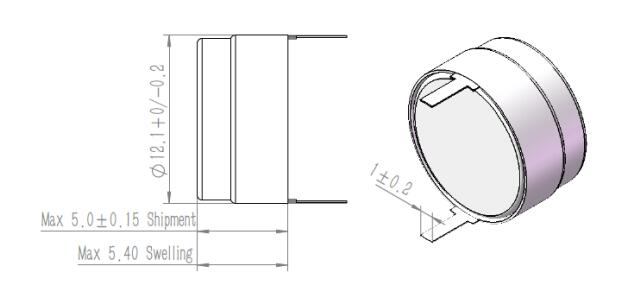

Structure and dimension

Rechargeable Button-Cell Battery performance criteria

1. Before proceed the following tests, the cells should be discharged at 0.5C to 3.0V cut-off. Unless otherwise stated, tests should be done within one month of delivery under the following conditions:

Ambient temperature: 23℃±2℃

Relative Humidity: ≤ 75%RH

2. Standard Charge/Discharge Conditions:

Charge: The battery will be charged to 4.2V with 0.5C from constant current to constant voltage, when the current is 0.05C, stop to charge.

Discharge: 0.5C constant-current discharge, cut-off voltage 3.0V / 0.5C to 3.0V.

Storage Requirement

Please activate the battery once every 3 months according to the following method:

Charge at 0.2C to 4.2V, rest 5 min, then discharge with 0.2C to 3.0V/cell, rest 5 min, then charge at 0.2C to 3.9V.

Application

We have provided energy solutions for large OEMs, high-tech applications, including Bluetooth headsets for smartphones, healthcare devices, wireless sensors and network in fracture.

See more rechargeable button-cell battery instruction to the link: https://www.grepow.com/button-cell-battery.html
