How to Choose Batteries for 100kg–200kg Payload Heavy Lift Drones?

As the drone industry matures, heavy-lift drones—particularly those capable of carrying payloads between 100kg and 200kg—are experiencing a surge in demand. These powerful UAVs are unlocking capabilities across logistics, agriculture, construction, and emergency services, transforming how goods are transported and tasks are completed. But their immense capability hinges on one critical component: the battery. Choosing the right power source isn't just about flight time; it's about safety, efficiency, reliability, and regulatory compliance. This guide delves deep into the world of heavy-lift cargo drones, focusing on the crucial art and science of battery selection.

Why Are 100kg+ Payload Cargo Drones Becoming Popular?

Heavy-lift cargo drones are rapidly moving from concept to commercial reality, driven by a clear market need for faster, cheaper, and more flexible logistics solutions. They offer significant advantages over traditional transport like helicopters or ground vehicles, especially for "middle-mile" delivery.

  ●Accessing the Inaccessible: Delivering critical supplies (medical, food, parts) to remote areas, disaster zones, or locations with damaged infrastructure where traditional vehicles can't reach.

  ●Industrial Efficiency: Transporting heavy tools, equipment, or parts within large industrial complexes (mining, construction, oil & gas), eliminating ground transport delays and crane requirements.

  ●Cost-Effectiveness: Research indicates that drone deliveries can be significantly more economical per trip than conventional methods, saving on labor, fuel, and infrastructure costs.

  ●Environmental Edge: Electrifying segments of logistics, reducing carbon footprint compared to diesel trucks or helicopters for certain routes and payloads.

  ●Safety Improvements: Removing personnel from hazardous transport tasks in challenging environments.

What Kind of Drones Are Used for Payloads Over 100kg?

To support payloads in the 100–200kg range, drones must generate substantial lift and remain stable during flight. The most common drone architectures are:

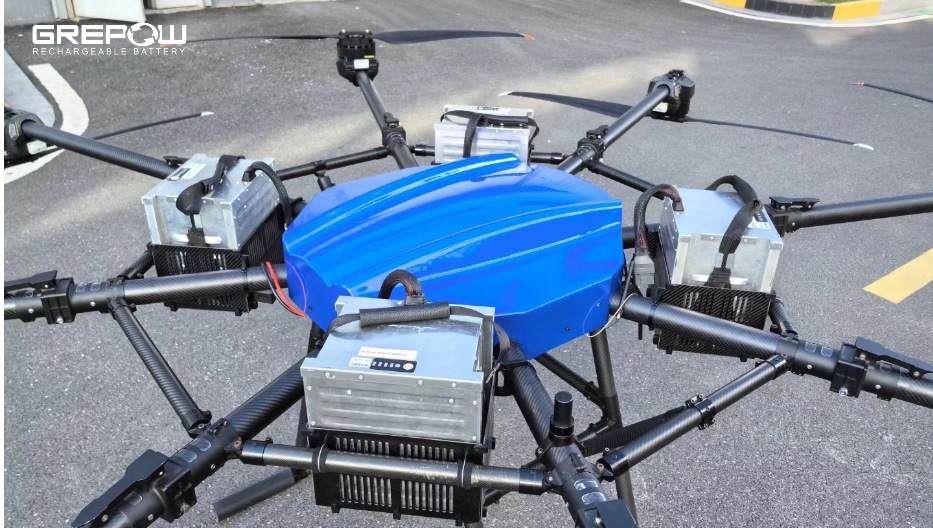

  ●Hexacopters (6 Motors/Props): The most common starting point for the 100-150kg payload range. Offers a good balance of power, redundancy (can lose one motor/prop and potentially land safely), and relative efficiency. Popular for many industrial and logistics applications.

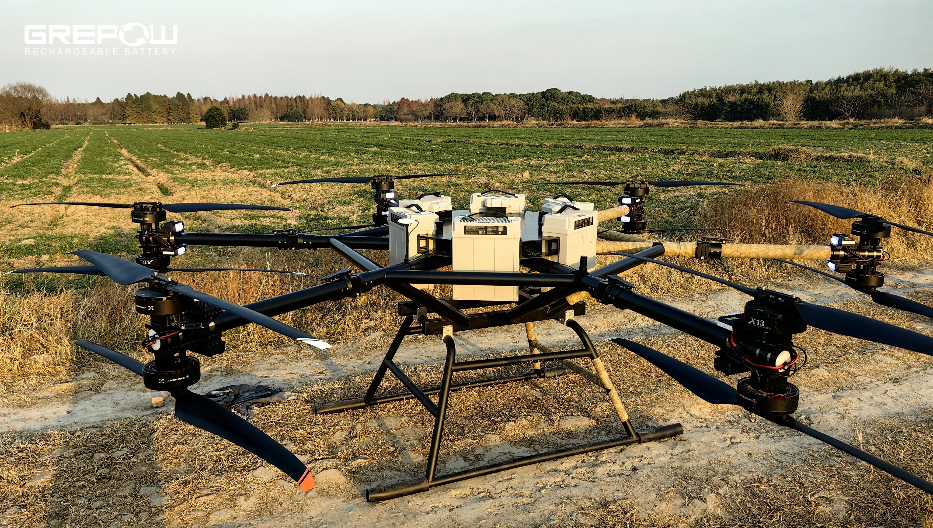

  ●Octocopters (8 Motors/Props): The standard for 150kg-200kg+ payloads and where maximum redundancy is paramount (e.g., medical transport over populated areas). Provides significantly more lift and power reserves but comes with increased complexity, weight, and cost. Essential for the heaviest lifts and highest safety-critical missions.

  ●Coaxial Octocopters/Variants: Some designs stack rotors (coaxial) on fewer arms, effectively creating 8 or more lifting surfaces with fewer arms, offering compactness benefits but often at the cost of slightly reduced efficiency.

How Do These Drones Achieve a Payload of up to 200kg?

Achieving a payload capacity of up to 200 kg is a monumental engineering feat that hinges on the principle of generating thrust far greater than the drone's total weight (airframe + batteries + payload). For a drone carrying 200 kg, its own weight might be 150-200 kg, meaning the propulsion system must safely lift around 400 kg. To do this with stability and control, the system is designed for a maximum thrust that can be double this weight. This is accomplished through a synergistic combination of several key elements:

  ●Massive Propulsion Units: The core of the lifting capability lies in the synergy between motors, propellers, and Electronic Speed Controllers (ESCs). These drones use large, industrial-grade brushless motors with power ratings in the kilowatts. These motors spin enormous carbon fiber propellers, often over a meter in diameter, which are aerodynamically designed to move a huge volume of air efficiently.

  ●High-Power Electronics: Each motor is controlled by a dedicated ESC capable of handling extremely high voltage (e.g., 14S/51.8V or higher) and continuous currents of several hundred amps. These ESCs require substantial cooling systems, including large heat sinks and fans, to dissipate waste heat and prevent failure under extreme load.

  ●Distributed Power & Redundancy (Multi-Rotor Configurations): As discussed (Hexacopter, Octocopter), distributing the required thrust across 6 or 8 (or more) independent motor/propeller units is essential. This not only provides the necessary aggregate lift but also incorporates critical redundancy.

  ●Advanced Flight Control Systems: Managing the complex dynamics of a heavily laden multi-rotor demands incredibly sophisticated flight controllers. These systems process data from multiple sensors (IMUs, barometers, GNSS) at high speeds, constantly adjusting the power to each motor thousands of times per second to maintain stable flight, even in turbulence, during aggressive maneuvers, or when compensating for motor failures. Redundant flight controllers are often employed for safety.

  ●Structural Strength and Lightweight Design: The airframe itself is a marvel of material science. It is constructed primarily from high-grade carbon fiber composites and aerospace aluminum alloys. The frame, particularly the motor arms and central plates, is engineered to withstand immense torque and bending forces without flexing or breaking, all while remaining as lightweight as possible to maximize payload capacity.

  ●Robust Power Distribution: Safely delivering power from the batteries to the motors is critical. Supplying the enormous, sustained power demanded by the propulsion system requires large, sophisticated battery packs. These drones use heavy-gauge wiring, specialized high-current connectors, and often custom-designed power distribution boards or bus bars to manage the flow of thousands of watts of power without overheating or creating a single point of failure. As detailed later, selecting batteries with the optimal balance of high energy density (Wh/kg) for flight time and very high power density (C-rate) for instantaneous thrust, while managing weight, is paramount.

Main Applications of 100kg–200kg Payload Drones

The ability to airlift significant weight opens up a wide range of industrial and commercial applications:

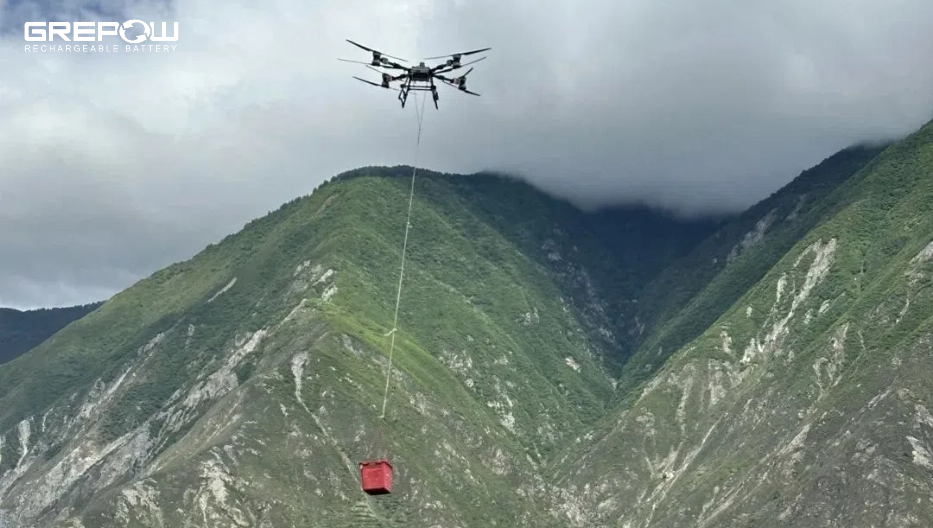

  ●Industrial Logistics: Moving machinery parts, tools, samples, and supplies within mines, construction sites, power plants, and large factories.

  ●Aerial Work & Construction: Hoisting building materials, sensors, or equipment to rooftops, bridges, or remote construction zones.

  ●Medical & Emergency Logistics: Rapid transport of blood, organs, vaccines, medical equipment, or disaster relief supplies.

  ●Energy Sector: Transporting inspection equipment or replacement parts for wind turbines and remote power lines.

  ●Agriculture: Transporting large volumes of harvested goods (e.g., from high-value orchards) or bulk inputs.

  ●Utility & Infrastructure: Delivering heavy tools or parts for power line, wind turbine, or pipeline maintenance.

What 100–200kg Payload Drones Are on the Market?

The market for 100-200 kg payload drones is specialized but growing. Notable examples include:

How to Choose Batteries for 100-200 kg Payload Drones?

Choosing the right battery is crucial and involves balancing safety, endurance, and drone/system compatibility. Key considerations include:

1. Voltage (V)

Higher voltage is better. Heavy-lift drones operate on high-voltage systems, typically 12S (44.4V), 14S (51.8V), or even higher custom configurations (24S+). Confirm that your drone’s power system and motors are rated for your chosen voltage to avoid electrical overload or insufficient performance.

2. Capacity (Ah or mAh)

Capacity, measured in Amp-hours (Ah), dictates flight time. To estimate the required capacity, you need to know the drone's average current draw during a mission (primarily at hover with payload).Higher capacity (e.g., 20,000–60,000mAh per pack) enables longer flight times but adds significant weight. Striking a balance is critical. Excess battery weight cuts into payload capacity and potentially reduces flight time.

3. Discharge Rate (C-Rating)

The C-rating is arguably the most critical safety parameter. It measures how quickly the battery can be safely discharged. For heavy-lift drones, both the continuous and peak C-ratings are vital.Heavy lift drones typically require 15C–25C or higher to deliver enough current for take-off and sustained heavy flight.

4. Battery Chemistry

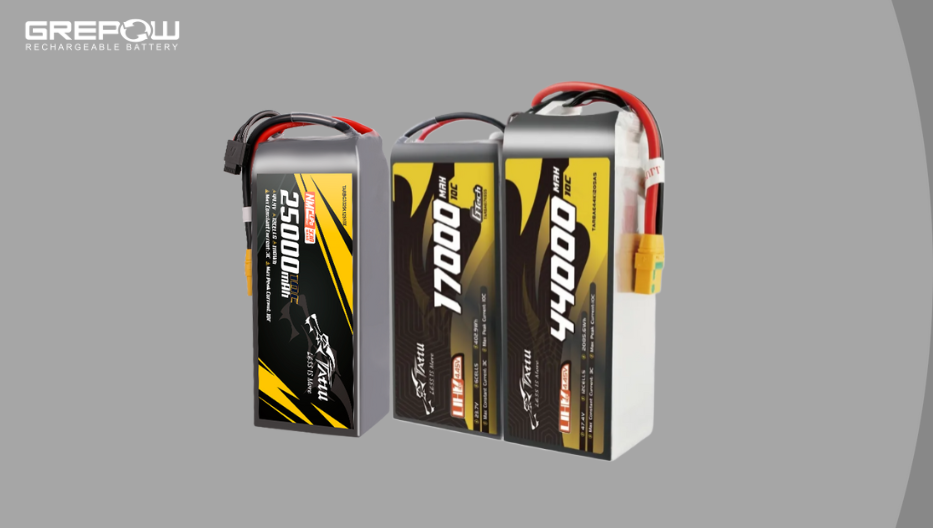

Lithium Polymer (LiPo): The most common choice. LiPo batteries offer an excellent balance of high energy density and very high C-ratings, making them ideal for the high-current demands of heavy-lift drones. Their main drawback is a shorter cycle life and a higher risk of fire if damaged or mishandled.

Semi-Solid State: Emerging tech with higher energy density (up to 320–350 Wh/kg), safer under thermal stress.

Solid-State Batteries: This emerging technology promises higher energy density and improved safety but is not yet widely available for this scale of application.

5. Physical Size & Weight

Ensure your battery fits into the drone’s battery compartment and keeps the total takeoff weight (including payload) within manufacturer specs and regulatory limits.

6. Safety Features

Select batteries with internal protection (overcharge, short circuit, thermal runaway) and robust casing. Smart battery management systems (BMS) for real-time monitoring are recommended.

Grepow Battery Solutions for 100-200KG Payload Heavy Lift Cargo Drone

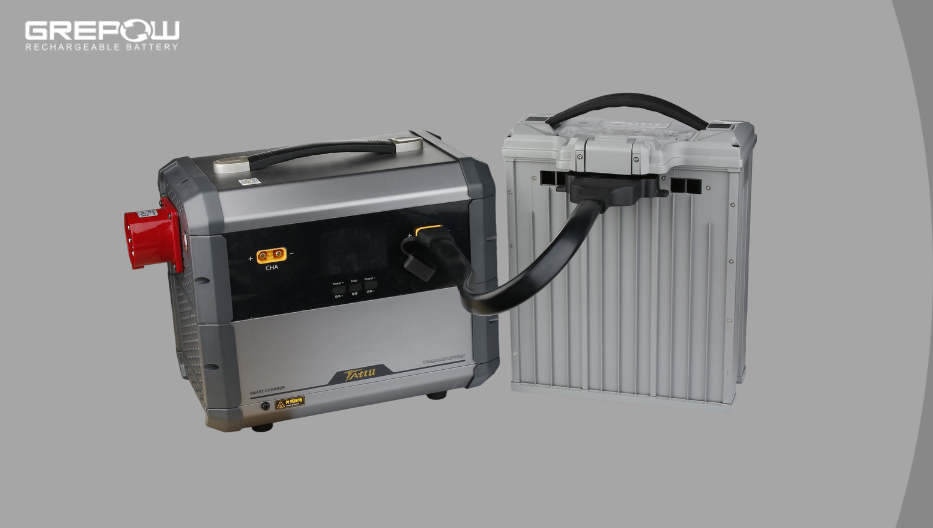

Grepow Tattu 4.0 18S 30AH 5C Fast Charging Battery

The Tattu 4.0 30Ah 18S LiPo battery is a smart, high-performance battery designed for heavy-lift drones. It supports 5C fast charging, delivers up to 360A continuous discharge, and lasts for over 600 cycles. With a built-in BMS and MOSFET switch, it offers strong protection and stable performance. Key features include aluminum housing for heat dissipation, waterproof design, anti-spark connector, LED indicators, slide-in installation, and Bluetooth monitoring via mobile app—making it powerful, safe, and easy to use.

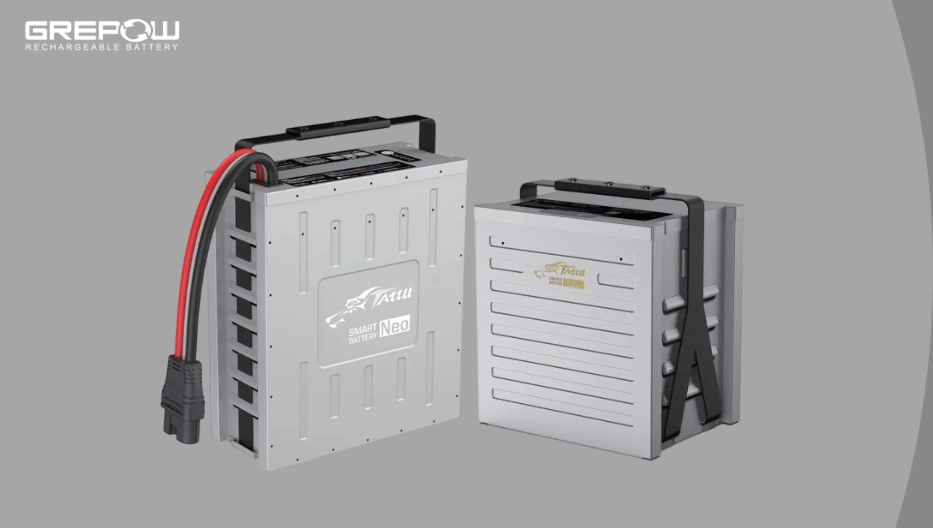

Grepow Tattu Neo Series 18S/24S Heavy Lift Drone Intelligent Battery

The TATTU 18S NEO features high capacity and energy density, an all-aluminum casing for superior heat dissipation, and a precision BMS integrated with MOSFET protection and DroneCAN protocol support, making it the ideal power solution for heavy payload delivery drones. The TATTU 24S NEO takes it further with support for multi-battery parallel configurations, 3C fast charging, 5C high-rate discharge, and Bluetooth connectivity for smart monitoring and upgrades. Both models deliver unmatched reliability, intelligent protection, and next-level power management for industrial drone applications.

Grepow Tattu High Energy Density and High Voltage Series Battery

Grepow offers semi-solid state batteries with energy densities up to 350Wh/kg, providing an excellent power-to-weight ratio for extended flight time and optimal load capacity. Additionally, our high-voltage cells support up to 4.45V per cell, enabling powerful high-current output for demanding performance needs. Whether your cargo drone requires maximum endurance or strong lift capability, Grepow delivers tailored battery solutions to match the unique requirements of different application scenarios.

Regulations and Certifications for Heavy-Lift Cargo Drones

Flying a 100-200 kg drone is not a hobbyist activity. It falls under the same regulatory scrutiny as commercial aviation. Regulations vary by country but generally include:

  ●Type Certification: The drone model itself must be certified by aviation authorities (e.g., the FAA in the US, EASA in Europe, or the CAAC in China) to ensure it meets stringent safety and airworthiness standards.

  ●Operator Certification: The company flying the drone must be certified as a commercial airline or operator (e.g., hold a Part 135 certificate in the US).

  ●Pilot Licensing: The remote pilot must hold a specific license and rating for operating aircraft of this size and weight.

  ●BVLOS Approval: Since most cargo missions operate Beyond Visual Line of Sight (BVLOS), operators must obtain special waivers or approvals that require proven risk mitigation strategies, including certified detect-and-avoid (DAA) technology.

   ●Dangerous Goods Transport: Large lithium batteries are classified as dangerous goods, and their transportation (both in the air and on the ground) is heavily regulated by bodies like IATA.

Conclusion

Selecting batteries for 100kg or 200kg payload heavy lift drones is a complex engineering choice—balancing power, weight, safety, endurance, and regulatory demands. Expert consultation, consideration of your drone’s specific architecture, the mission profile, and a robust understanding of international airspace rules are all required for safe, reliable, and legal heavy lift drone operations. As a global leader in drone battery manufacturing with over 25 years of dedicated experience in R&D and production, Grepow delivers advanced power solutions tailored for heavy-lift drone transportation. Backed by a professional engineering team, we specialize in designing batteries that ensure maximum efficiency and uncompromised safety, even under the most demanding payload conditions. From cost-effective, high-density soft-pack batteries to robust, intelligent BMS smart batteries, our engineering team will identify the ideal technology for your specific application. Trust Grepow to provide a power source perfectly matched to your drone's requirements. If you have any questions or needs, please feel free to contact us at info@grepow.com.
