1. Standard Tattu 4S LiPo Drone Battery Solutions
Model | Capacity | Nominal Voltage | Energy | Discharge Rate | Weight | Dimension(LxWxH) |
3700mAh | 4S1P 14.8V | 54.76Wh | 45C | 361g | 136x44x29mm | |
5200mAh | 4S1P 14.8V | 76.96Wh | 35C | 436.5g | 133x45x33.5mm | |
6750mAh | 4S1P 14.8V | 99.9Wh | 25C | 620g | 135X42X44mm | |

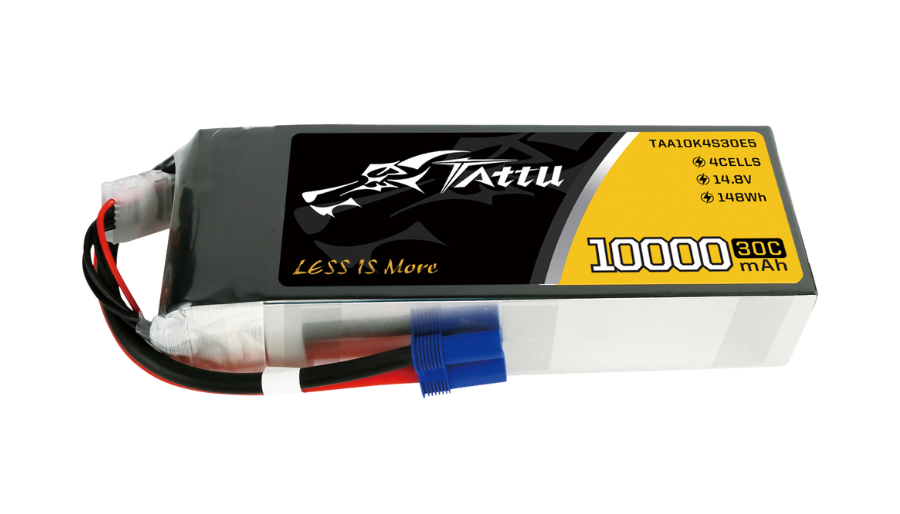

10000mAh | 4S1P 14.8V | 148Wh | 25C | 940g | 169x65x39mm | |
10000mAh | 4S1P 14.8V | 148Wh | 30C | 935g | 177x66x39mm | |

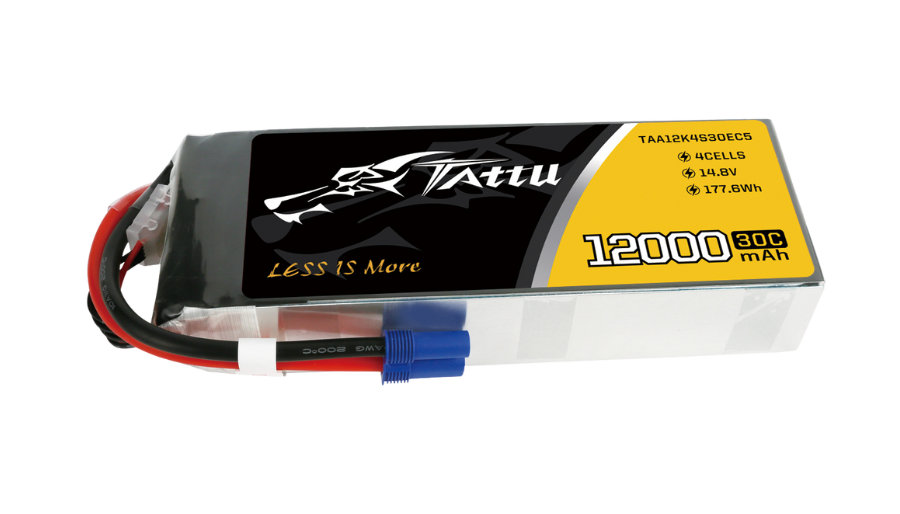

12000mAh | 4S1P 14.8V | 177.6Wh | 30C | 1057g | 193x72x37mm | |

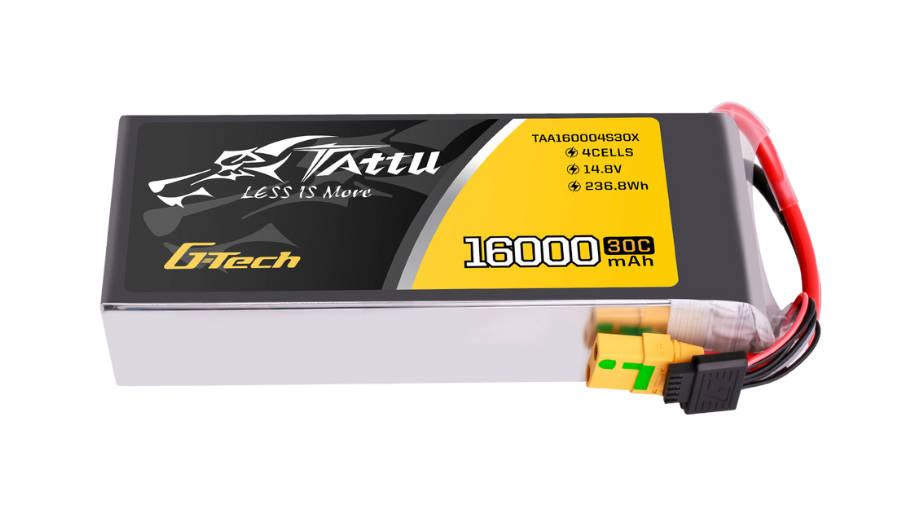

16000mAh | 4S1P 14.8V | 236.8Wh | 30C | 1351g | 192x77x44mm | |
22000mAh | 4S1P 14.8V | 325.6Wh | 25C | 2450g | 213x94x43mm | |

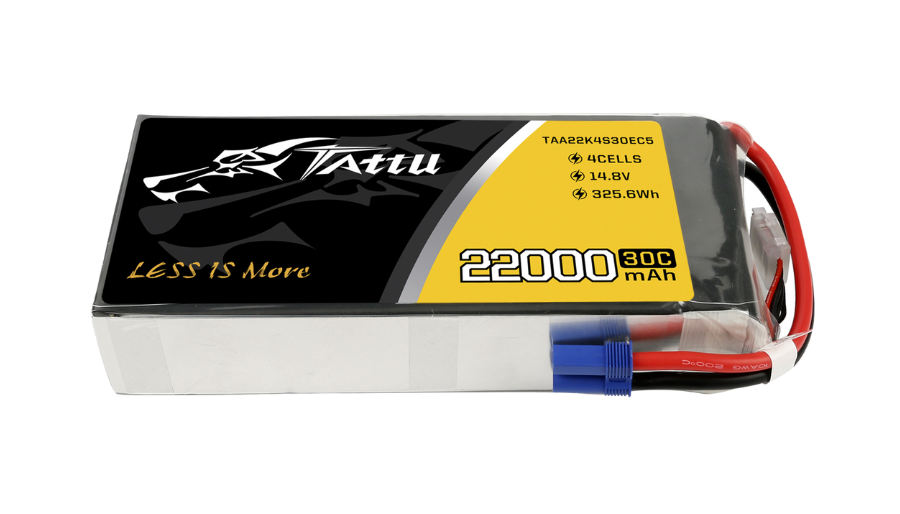

22000mAh | 4S1P 14.8V | 325.6Wh | 30C | 1677g | 208*92*42mm |
*Connector Options: XT30, XT60, XT90, EC5, AS150U, QS5, QS8, QS9, QS10, AS250, AS150, etc.
2. Ultra High Voltage Tattu 4S LiPo Drone Battery Solution
Battery Model | Capacity/Energy | Rated Voltage | Land-off Voltage | Dimension | Weight | Energy Density | Constant Discharge Current (3C) | Peak Current (10C≤15S) |
Tattu 17Ah 4S | 17Ah 268.6Wh | 4S 15.8V | 14.12V | 39.9×71.5×187 | 1072g | 250.56Wh/kg | 51A | 170A |
Tattu 22Ah 4S | 22Ah 347.6Wh | 4S 15.8V | 14.12V | 40.3×73.5×218 | 1360g | 255.59Wh/kg | 66A | 220A |
Tattu 27Ah 4S | 27Ah 426.6Wh | 4S 15.8V | 14.12V | 30.3×120.5×217 | 1644g | 259.49Wh/kg | 81A | 270A |
Tattu 32Ah 4S | 32Ah 505.6Wh | 4S 15.8V | 14.12V | 35.1×120.5×217 | 1912g | 264.44Wh/kg | 96A | 320A |
Tattu 33Ah 4S | 33Ah 521.4Wh | 4S 15.8V | 14.12V | 36.7×120.5×217 | 1996g | 261.22Wh/kg | 99A | 330A |
Tattu 41Ah 4S | 41Ah 647.8Wh | 4S 15.8V | 14.12V | 47.9×104.5×234 | 2412g | 268.57Wh/kg | 123A | 410A |
Tattu 54Ah 4S | 54Ah 853.2Wh | 4S 15.8V | 14.12V | 53.5×121×237 | 3132g | 272.41Wh/kg | 162A | 540A |
Tattu 68Ah 4S | 68Ah 1074.4Wh | 4S 15.8V | 14.12V | 44.3×151×287 | 3940g | 272.69Wh/kg | 204A | 680A |
*Connector Options: XT60, XT90, AS150U, QS5, QS8, QS9, QS10, AS250, AS150, etc.
3. Semi-Solid State Tattu 4S LiPo Drone Battery Solution
Battery Model | Capacity/Energy | Rated Voltage | Land-off Voltage | Dimension(T×W×L ±5mm) | Weight (±200g) | Energy Density | Constant Discharge Current (3C) | Peak Current (10C≤15S) |
Tattu 17Ah 4S | 17Ah 251.6Wh | 4S 14.8V | 12.2V | 34.3×71.5×191.5 | 932g | 269.96Wh/kg | 51A | 170A |
Tattu 22Ah 4S | 22Ah 325.6Wh | 4S 14.8V | 12.2V | 39.9×76.5×192 | 1172g | 277.82Wh/kg | 66A | 220A |
Tattu 25Ah 4S | 25Ah 370Wh | 4S 14.8V | 12.2V | 35.1×91.5×207 | 1324g | 279.46Wh/kg | 75A | 250A |
Tattu 30Ah 4S | 30Ah 444Wh | 4S 14.8V | 12.2V | 41.9×91.5×207 | 1564g | 283.89Wh/kg | 90A | 300A |
Tattu 84Ah 4S | 84Ah 1243.2Wh | 4S 14.8V | 12.2V | 50.3×151.5×287 | 4260g | 291.83Wh/kg | 252A | 840A |
Tattu 25Ah 4S | 25Ah 370Wh | 4S 14.8V | 11.8V | 41.9×76.5×192 | 1220g | 303.28Wh/kg | 75A | 250A |
Tattu 33Ah 4S | 33Ah 488.4Wh | 4S 14.8V | 11.8V | 41.9×91.5×207 | 1564g | 312.28Wh/kg | 99A | 330A |
Tattu 76Ah 4S | 76Ah 1124.8Wh | 4S 14.8V | 11.8V | 41.5×151.5×287 | 3508g | 320.64Wh/kg | 228A | 760A |
Tattu 26.3Ah 4S | 26.3Ah 389.24Wh | 4S 14.8V | 11.52V | 43.9×76.5×192 | 1220g | 319.05Wh/kg | 78.9A | 263A |
Tattu 33Ah 4S | 33Ah 488.4Wh | 4S 14.8V | 11.52V | 42.7×89.5×207 | 1492g | 327.35Wh/kg | 99A | 330A |
Tattu 80.4Ah 4S | 80.4Ah 1189.92Wh | 4S 14.8V | 11.52V | 43.5×151.5×287 | 3508g | 339.20Wh/kg | 241.2A | 804A |
●High Energy Density up to 210Wh/Kg
●Support 1C Charging Rate
●Safe Discharge to 3.6V/Cell
●Advanced Safety & Durability
●Lightweight & Energy-Dense Design

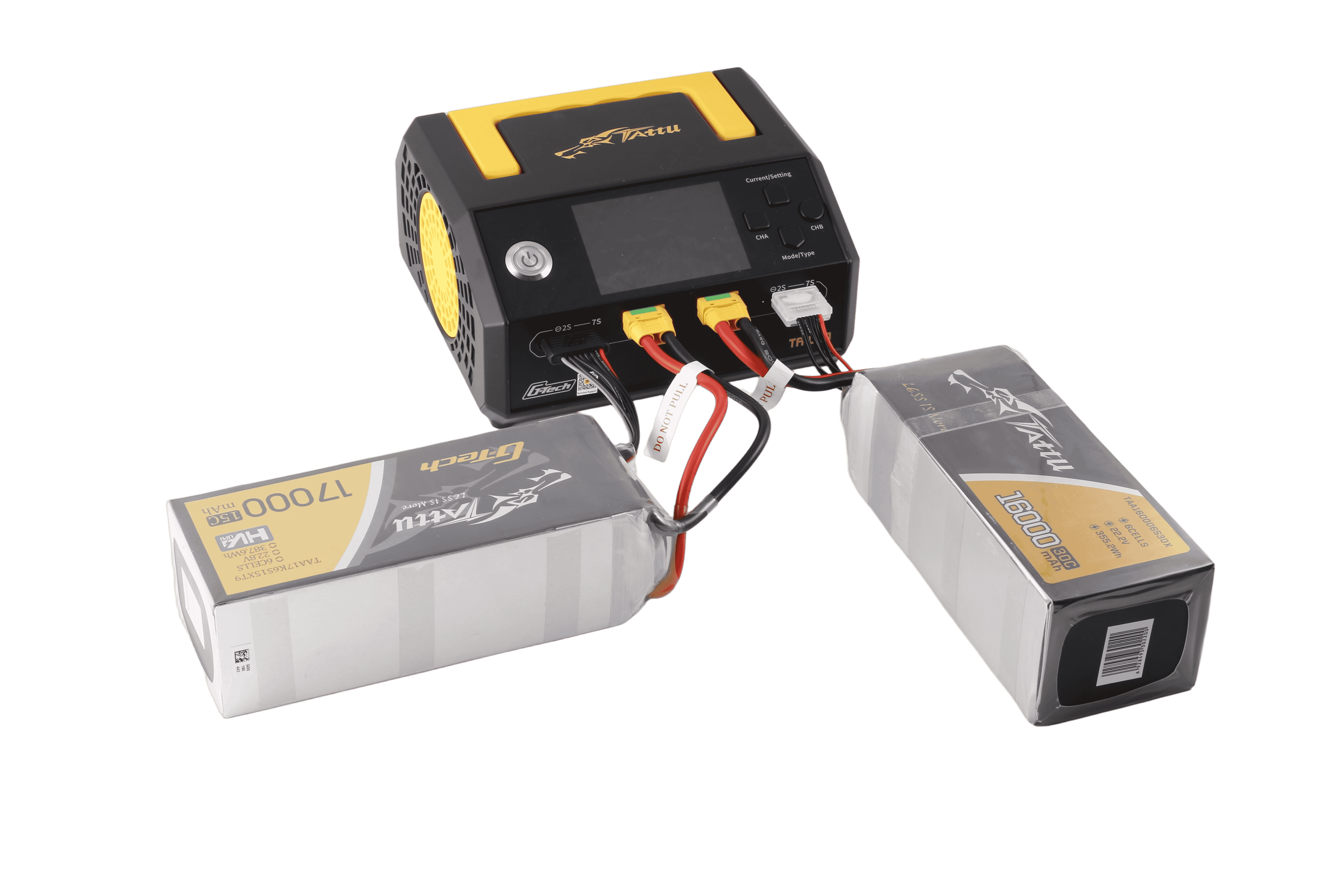

●Tattu TA1000 drone battery charger for 1-7S soft pack batteries.
Discover more UAV / Drone Chargers: Battery Charger
The Tattu 4S series caters to diverse UAV needs:
●Racing & FPV Drones: High C-ratings (45C) provide the instantaneous power required for competitive racing and acrobatics.
●Aerial Photography/Cinematography: Stable voltage output ensures smooth gimbal and camera operation, even with large-capacity packs.
●Agriculture & Spraying: High-capacity models (e.g., 22000mAh) support long-duration crop monitoring or pesticide deployment.
●Search & Rescue/Surveillance: Reliable performance in critical missions requiring extended flight times.
●Heavy-Lift Drones: Powers payload-carrying UAVs for delivery, industrial inspections, or scientific research.
The Tattu 4S LiPo Drone Battery Series redefines power solutions for modern UAVs, blending adaptability, safety, and high-performance output. Whether you’re a weekend hobbyist chasing speed records or a professional pilot executing precision missions, this series offers the energy density and durability to elevate your drone’s capabilities.
▶Proven Reliability: Trusted by drone pilots worldwide for consistent performance under extreme conditions.
▶Scalability: A single product line serves everything from micro drones to industrial UAVs.
▶Eco-Conscious Engineering: Compliant with RoHS and CE standards, emphasizing sustainable manufacturing practices.
