LiPo Battery vs NiMH Battery: What's the Difference?

When it comes to powering high-performance devices like RC cars, airsoft guns, drones, and other electronic equipment, choosing the right battery is crucial. Two of the most popular battery types are LiPo (Lithium Polymer) and NiMH (Nickel-Metal Hydride) batteries. Each has its strengths, weaknesses, and ideal use cases. In this article, we’ll explore the differences between LiPo and NiMH batteries, compare their performance, and help you decide which is right for your application.

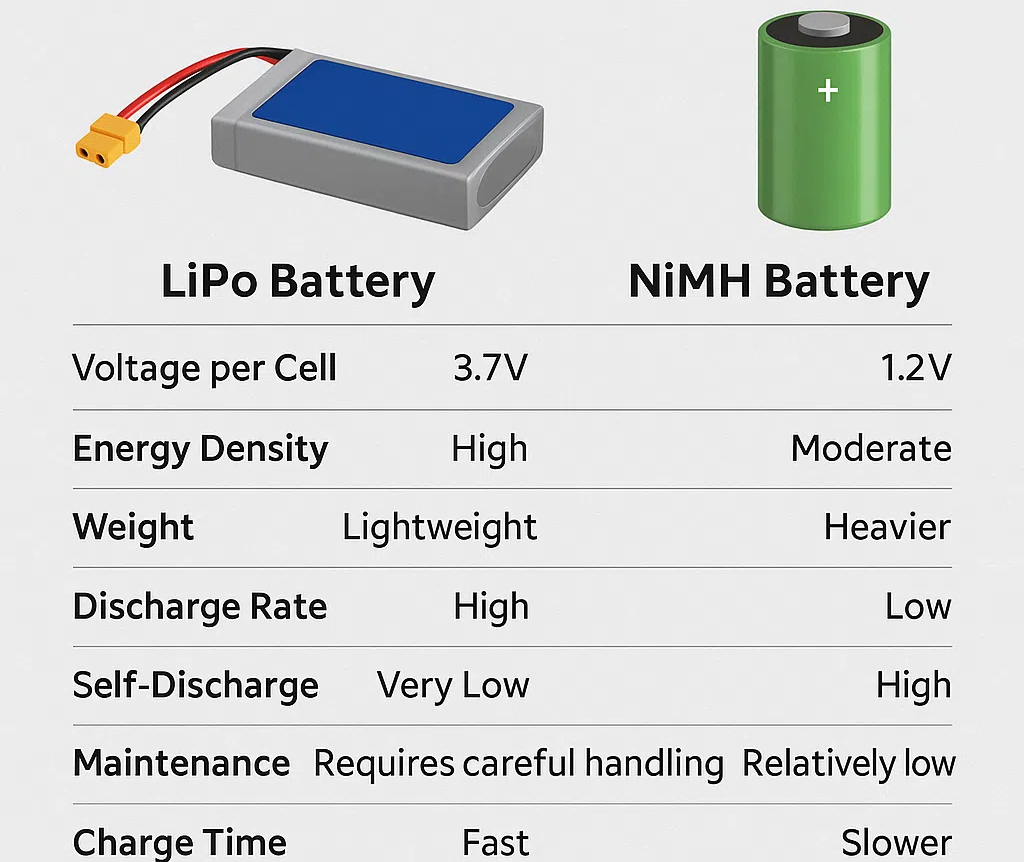

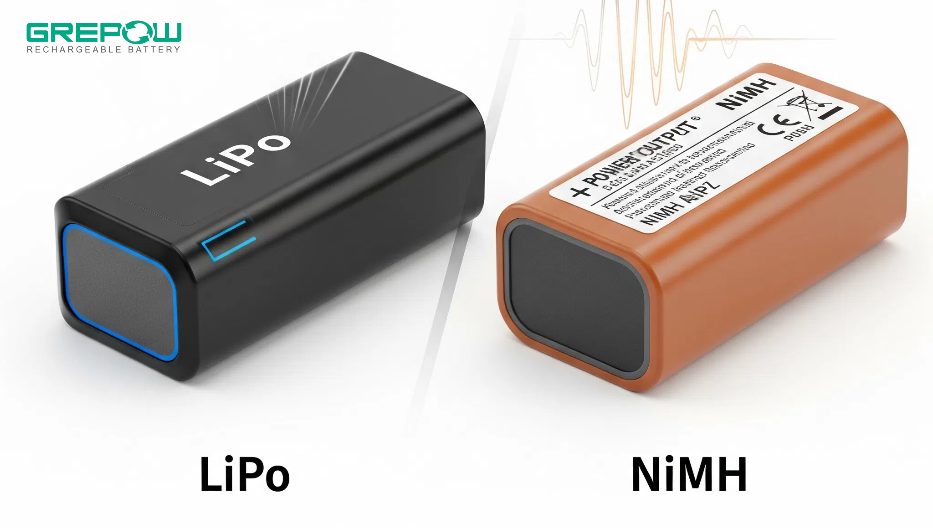

LiPo battery vs NiMH battery: what's the difference?

1. Chemistry and Voltage

  ●LiPo: Lithium Polymer batteries use a lithium-ion-based chemistry with a polymer electrolyte. Each cell has a nominal voltage of 3.7V. Multiple cells are connected in series (e.g., 2S for 7.4V) to achieve higher voltages.

  ●NiMH: Nickel-Metal Hydride batteries use a nickel-based chemistry with a metal hydride electrode.Each cell has a nominal voltage of 1.2V, requiring more cells to reach equivalent voltages (e.g., six cells for 7.2V).

2. Energy Density

  ●LiPo: Superior energy density (150–350Wh/kg), providing more power in a lighter, compact package.

  ●NiMH: Lower energy density (60–120 Wh/kg), resulting in bulkier designs for equivalent capacity.

3. Weight and Form Factor

  ●LiPo: Lightweight and flexible packaging (soft pouches), ideal for weight-sensitive applications like drones.

  ●NiMH: Heavier and rigid (cylindrical cells), limiting use in portable devices.

4. Discharge Rates

  ●LiPo: High discharge rates (often 20C–50C), perfect for high-drain devices like RC cars.

  ●NiMH: Moderate discharge rates (5C–10C), suitable for low-to-medium drain applications.

5. Self-Discharge

  ●LiPo: Low self-discharge (~5% per month).

  ●NiMH: Higher self-discharge (~20–30% per month), requiring frequent recharges if unused.

6.Cost

  ●LiPo: Generally more expensive due to advanced chemistry and manufacturing processes.

  ●NiMH: More affordable, making them a cost-effective choice for budget-conscious users or less demanding applications.

Which Is Better: NiMH or LiPo?

The "better" battery depends on the application, user expertise, and priorities. For high-performance applications like competitive RC racing or airsoft, LiPo batteries are often preferred due to their power and weight advantages. For casual use, beginners, or applications where safety and cost are priorities, NiMH batteries may be the better choice. Here’s a breakdown:

LiPo Advantages:

  ●Higher energy density for compact, lightweight designs.

  ●Superior discharge rates for high-performance applications.

  ●Better efficiency and power output for demanding devices like RC cars and airsoft guns.

  ●Flexible shapes for custom applications.

NiMH Advantages:

  ●Safer and more forgiving of improper handling or charging.

  ●Lower cost, making them accessible for beginners or budget builds.

  ●More durable in terms of physical robustness and resistance to over-discharge.

  ●Simpler charging requirements, reducing the need for specialized equipment.

What are the disadvantages of LiPo batteries?

While LiPo batteries offer superior performance, they come with notable drawbacks:

  ●Safety Risks: LiPo batteries are prone to thermal runaway, which can lead to fires or explosions if overcharged, punctured, or improperly stored. They require careful handling and monitoring.

  ●Complex Charging: LiPo batteries need balance chargers to ensure each cell is charged evenly, and overcharging can cause irreversible damage or safety hazards.

  ●Shorter Cycle Life: Compared to NiMH, LiPos may degrade faster if not handled properly.

  ●Fragility: The soft pouch design is susceptible to physical damage, which can compromise safety and performance.

  ●Higher Cost: More expensive than NiMH batteries, both in initial purchase and required accessories like chargers.

What are the disadvantages of NiMH batteries?

NiMH batteries also have limitations that may affect their suitability:

  ●Lower Energy Density: Larger and heavier for the same capacity, making them less ideal for compact or weight-sensitive applications.

  ●Memory Effect: Although less pronounced than in older NiCd batteries, NiMH batteries can suffer from reduced capacity if repeatedly partially discharged.

  ●Lower Discharge Rates: Less capable of delivering high bursts of power, limiting performance in high-demand applications.

  ●Self-Discharge: NiMH batteries lose charge faster when not in use (up to 1–2% per day), requiring frequent recharging.

  ●Longer Charging Times: NiMH batteries take longer to charge compared to LiPo, especially for high-capacity packs.

Can LiPo be used instead of NiMH?

LiPo batteries can often replace NiMH batteries, but several factors must be considered:

  ●Voltage Compatibility: Ensure the device can handle the higher voltage of LiPo batteries. For example, a 7.2V NiMH pack (six cells) can be replaced with a 2S LiPo (7.4V), but slight voltage differences may affect performance or require adjustments.

  ●Physical Fit: LiPo batteries are more compact, but the device’s battery compartment must accommodate the shape and size.

  ●Electronics Compatibility: Some devices designed for NiMH may not handle LiPo’s high discharge rates or require a low-voltage cutoff to prevent over-discharge.

  ●Charger Requirements: LiPo batteries require a balance charger, unlike the simpler chargers used for NiMH.

  ●Safety Considerations: Users must be educated on LiPo handling to avoid safety risks.

Which Batteries Last Longer: Lithium or NiMH?

In terms of runtime per charge, LiPo batteries generally last longer because of their higher energy density. However, in terms of cycle life (how many times they can be recharged), NiMH batteries may last longer if well maintained.

So, the answer depends on how you define "last longer":

LiPo = longer run time per use

NiMH = potentially more charge cycles under light usage

NiMH vs LiPo for Airsoft

The choice between NiMH and LiPo for airsoft guns often comes down to performance versus ease of use and cost.

  ●NiMH: Preferred for entry-level guns due to durability, safety, and lower cost. Tolerates rough handling.

  ●LiPo: Favored by enthusiasts for higher rate of fire and lighter weight. Requires battery protection circuits to avoid damage.

Many modern airsoft AEGs are "LiPo ready," meaning their gearboxes and wiring can handle the increased power. Older or lower-end models might require upgrades (e.g., MOSFET, better wiring, stronger gears) to safely and effectively use LiPo batteries, especially higher voltage ones (like 11.1V). An 11.1V LiPo will offer a significant performance boost over a standard 8.4V or 9.6V NiMH but also puts more stress on the AEG's internals. A 7.4V LiPo is often a good upgrade from NiMH, offering better performance without drastically increasing wear.

LiPo battery vs NiMH for RC Car

In the RC car world, LiPo batteries have largely become the standard for enthusiasts and racers due to their significant performance advantages.

  ●LiPo: Dominates competitive racing with faster acceleration, higher speeds, and longer runtimes.

  ●NiMH: Ideal for beginners or casual users due to simplicity and resilience to over-discharge.

Most modern RC cars, especially hobby-grade ones, are designed with LiPo use in mind and often include ESCs with built-in LVC. The jump in performance from a standard NiMH to even a 2S LiPo is substantial. Using higher voltage LiPos (3S, 4S, or more) can transform an RC car into a high-speed machine but requires a compatible motor, ESC, and drivetrain components that can handle the extreme power.

When should I choose LiPo over NiMH (or vice versa)?

Opt for LiPo When:

  ●High Power Output is Critical: RC racing, drone acrobatics, and competitive airsoft benefit from LiPo’s sustained voltage.

  ●Weight Savings are Paramount: Aerospace and wearable tech prioritize LiPo’s 350Wh/kg density.

  ●Form Factor Flexibility is Needed: Thin LiPo cells (2mm) enable sleek product designs unavailable with cylindrical NiMH cells.

Prefer NiMH When:

  ●Safety and Durability are Priorities: Children’s toys and industrial sensors benefit from NiMH’s puncture resistance.

  ●Cost-Effectiveness Matters: NiMH AA packs cost $0.80/Wh versus LiPo’s $1.50/Wh, advantageous for high-volume deployments.

  ●Low-Maintenance Operation is Essential: Emergency lighting and backup systems leverage NiMH’s tolerance to partial charging.

How do charging methods differ between LiPo and NiMH batteries?

LiPo charging is more complex and requires specialized equipment and strict safety protocols, while NiMH charging is simpler and more forgiving but slower. Charging methods for LiPo and NiMH batteries differ significantly due to their chemistry and safety requirements:

LiPo Charging:

  ●Balance Charger Required: LiPo batteries need a balance charger to ensure each cell is charged evenly, preventing overcharging or cell imbalance.

  ●Charging Rate: Typically charged at 1C (e.g., 1A for a 1000mAh battery), though some support faster charging (2C–5C) if specified.

  ●Safety Precautions: Must be charged in a fireproof bag or container, away from flammable materials. Never leave unattended.

NiMH Charging:

  ●Simpler Chargers: NiMH batteries can use basic chargers, though smart chargers with delta-peak detection are recommended to prevent overcharging.

  ●Charging Rate: Typically charged at 0.1C to 1C, with slower charging reducing heat and extending lifespan.

  ●Safety: Less prone to catastrophic failure, but overcharging can reduce lifespan. No need for balance charging, as cells are less sensitive to imbalance.

Conclusion

LiPo and NiMH batteries each have unique strengths and weaknesses, making them suited to different applications. LiPo batteries excel in high-performance scenarios like competitive RC cars and airsoft, offering lightweight designs and high power output but requiring careful handling and investment in chargers. NiMH batteries are safer, cheaper, and more durable, ideal for beginners or less demanding applications. By understanding these differences, advantages, and disadvantages, you can confidently select and maintain the right battery technology to power your passion, ensuring optimal performance and longevity. As a leading global LiPo battery manufacturer, Grepow spearheads innovation with patented technologies in high-discharge-rate FPV LiPo batteries (up to 150C) and high-performance NiMH batteries (up to 15C). Our advanced manufacturing processes deliver high-performance power solutions for demanding applications across the UAV, RC, industrial, wearable, medical, and robotics sectors. If you have any questions or needs, please feel free to contact us at info@grepow.com.
