High Discharge Rate Battery VS Standard Discharge Battery | Battery Monday

High Discharge Rate Battery VS Standard Discharge Battery | Battery Monday

Editorial:Danae Issue Date:2021-03-09 Views:8363

What is the differences between a high discharge rate battery and a standard discharge rate battery? In this issue, Zac will tell us about it.


A battery has a high rate that is the charge and discharge capability of a lithium-ion polymer battery with respect to the standard rate. A high-rate battery is divided into a discharge rate and a charge rate, and a "C-Rating" is used to indicate the ratio of the charging and discharging current of a battery.Normally, high discharge rate batteries can be fast charged. In high discharge rate batteries, the lithium ions are embedded in the negative graphite during charging whereas in the discharging portion, the lithium ions are embedded in the positive electrode. The act of embedding the lithium ions into the negative graphite requires more precision thus resulting in a lower charging rate than discharge.You can refer back to our previous Battery Monday video or article to receive more information on C-rating. Another distinction that can be made is how a high discharge rate battery will have better temperature stability and tolerance than regular discharge batteries.There are two graphs to help us to understand these two batteries better.

Discharge curve

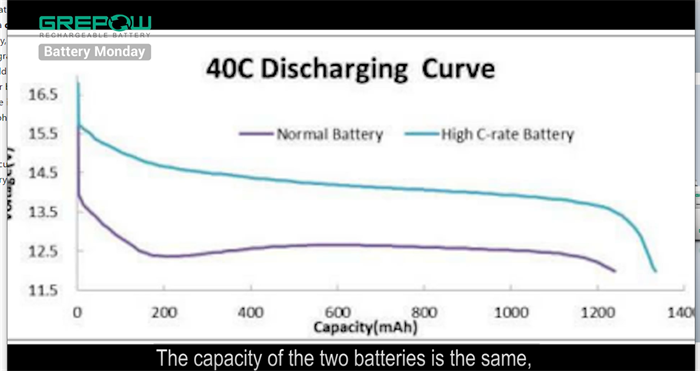

The first one is a discharge curve, or what’s known as a voltage plateau, of a normal battery and a high c-rate battery.

high discharge rate battery's discharging curve | Grepow

The capacity of the two batteries is the same, and the test current is 40CWe can see the discharge voltage of the high c-rate battery ( blue line ) is higher and how the voltage drop is smoother and the capacity greater.  Furthermore, the high discharge battery provides a nominal voltage of 14.5V whereas the standard battery only provides that of 12.5VThis is due to the low internal resistance of a higher C-rate, which results in lower losses during high current discharge.  This allows the discharge plateau and capacity to be maintained at a high level.

Fast charging time

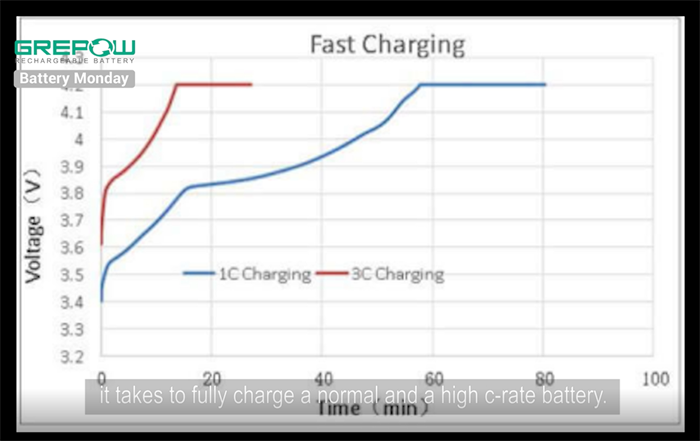

The fellow picture represents a record of how long it takes to fully charge a normal and a high c-rate battery.  The red line represents a high c-rate battery fast charging at 3C. It only takes 15 minutes to fully charge.

high c-rate battery's charging time | fast charge | grepow battery

In contrast, the normal battery ( blue line ) charging at 1C, which takes a lot more time to fully chargeJust based on this chart, you can see how a high rate battery saves about 60% more time fast charging than a normal battery charging at 1C.

Fast charge a standard battery

If you fast charge a normal battery, you can easily cause lithium stripping, or otherwise known as lithium plating of the lithium ions.  This leads to accelerated deterioration in battery performance.  In severe cases, you can cause an internal short circuit and/or even an explosion.Most consumer applications require only 1C from their batteries. If you need higher discharge rates and faster charging times, you should definitely choose a high rate battery instead.


High-rate batteries are widely used in a variety of fields, such as with drones for aerial and agricultural plant protection purposes, emergency power supplies, model aircraft ( RC ), power tools and many more.



Learn More About Grepow

We are the world leading battery manufacturer specialize in special shaped batterieshigh discharge rate battery and UAV battery. Through the persistent efforts of our R&D team, we have finally developed the NMC 811 battery and will soon enter the mass production stage, which is a major breakthrough. If you have any questions about today’s topic or have any battery-related things you want to know, please feel free to contact us by email at info@grepow.com.

Or if anything what we could improve and what you will be willing to learn, email us, we will read the comment and provide a high-quality battery knowledge tutorial.
