IMars Dual, Dual Channel Battery Smart Charger

IMars Dual, Dual Channel Battery Smart Charger | RC Battery Charger

IMARS DUAL, a dual-channel smart balance charger, is an AC/DC compatible smart charger that is not limited by charging scenarios. 200W output power in AC mode and 300W*2 output power in DC mode; while providing high power charging, it can also connect to an external load to discharge at a high current of 15A, thus discharging the battery to storage mode is fast and easy. For higher charging current, you can choose the two-in-one charging mode. With only one DC power supply, the output current of the charger's two channels can be combined into one for fast charging.

Online information

Solution Details

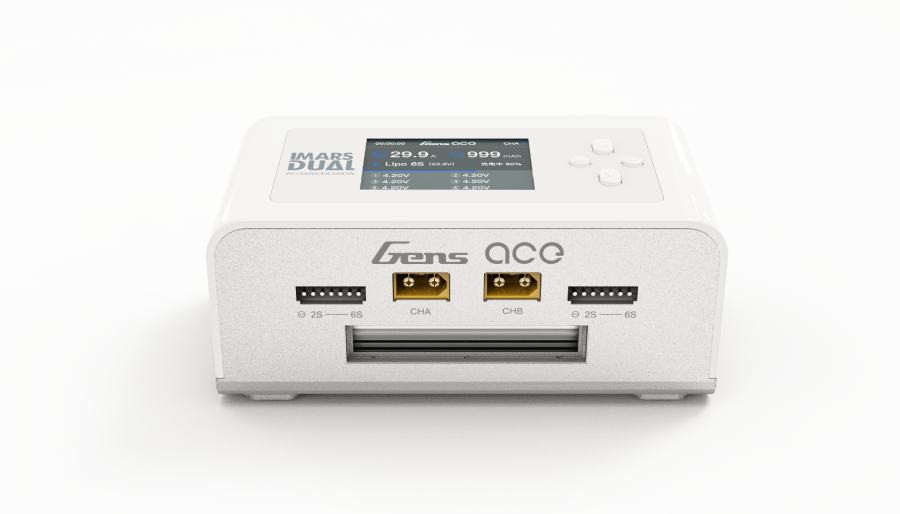

The IMARS Dual dual-channel smart balance charger is available in black and white, with a streamlined design and a fine-brushed chassis. The net weight of about 530g and the small size of about 2/3 of the traditional charger make it stand out among many chargers. The product system covers Chinese, English, French and German languages for more convenient operation; supports multiple battery types LIPO/LI-LON/LIHV/LFP 1~16s; NIMH/Cd 1~6s; also comes with XT60 to XT30, EC5, T plug and USB cable.

Features of IMars Dual

● Dual Channel AC/DC Smart Balance Charger.

● Portable Design Small & Lightweight with wide-view IPS Display.

● High power charging.

● External discharge function.

● Synchronous output, 2-in-1 Fast-charging.

● Built-in DC power source for different devices.

● Controlled heat dissipation system.

● Temperature compensation function.

● Advanced safety features, UL94-V0 Flame Retardant Grade.

● Protection of Short circuit / Overcurrent / Overcharge / Overvoltage

Product Parameters

Specs of IMars Dual, Dual Channel Battery Smart Charger
LCD Display	The 2.4 inch IPS Screen LCD	Maximum Charging Power	AC200W (Smart Allocation) DC 2x300W
Channel	2	Balanced Serial Number	1~6s
Input Voltage	AC100-240V DC7-30V	Battery Type	LiPo/Li-ion/LiHV/LiFe 1~6S; Ni-MH/Cd 1~16S
Output Voltage Range	DC 1~30V	Working Temperature	0~65℃ / 32-149F
Max. Input Current	DC-30A	Storage Temperature	-20~60℃ / -40-140F
Charging Current	0.1-15A *2	DC, Input, Interface	XT60PW-M
Balance Current	1.2A/Cell max *2	Output Joggle	XT60PW-M
Voltage Tolerance	Standard ±10mV	Product Size	145x76x62mm
Discharge Current	0.1-3A *2	Net Weight	Approx. 530g
Maximum Discharge Power	15W2 (Main Port 6W2, Equilibrium Port 9W*2)
Operating Modes of IMars Dual	①Charge, ②Discharge, ③Balance, ④Storage, ⑤ExtDischarge, ⑥SyncCharging, ⑦Digital Power Supply.
