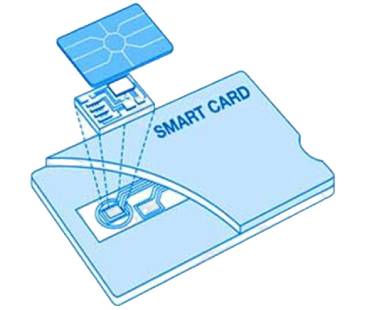

Smart card is a generic term for a plastic card embedded with a microchip. Smart cards are classified according to the type of embedded chip: memory card, logic encryption card, CPU card, and also classified by power supply: active card and passive card. Active card- contains a power supply device (battery), and even has a screen, keyboard; Passive cards are powered externally. So smart cards require built-in batteries or outside power supply to meet daily use.
|
| A smart card is any card that has an integrated circuit on it. It does not have batteries, as the size of a card is too small to mount all but the smallest of special-purpose batteries. What Battery Is The Preferred Solution For Smart Card? In many cases, the preferred solutions for powering such smartcards are ultra-thin rechargeable batteries that get recharged regularly either through the smartcard chip contact pads or from energy harvested through the antenna used for contactless connectivity. |

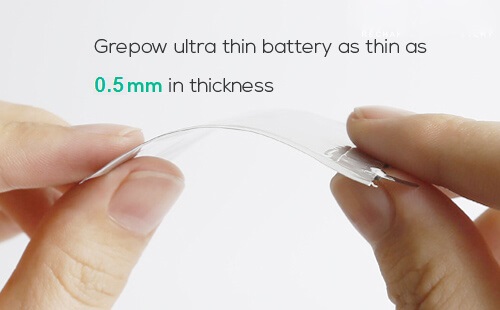

Ultra-Thin Battery
● High operating voltage ● No memory effect ● Low self-discharge ● Good safety performance | ● High energy density ● High reliability ● Long cycle life ● Excellent charge/discharge cycle characteristics |
The 9um separator reduces the internal resistance of the battery and increases the volumetric energy density of the battery.

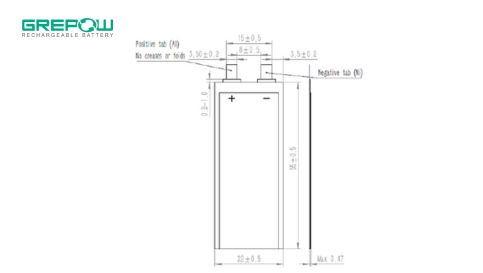

Battery model: GRP574285-S | Battery size: 5.7mm*42mm*85mm |
Diaphrabm thickness | Capacity | Internal Resistance | Cell Weight | Energy Density | |
Ultra thin separator | 9 μm | 2550 mAh | 2.2 mΩ | 45.5 g | 464 Wh/L |
Ordinary separator | 16 μm | 2250 mAh | 2.5 mΩ | 42.5 g | 409 Wh/L |

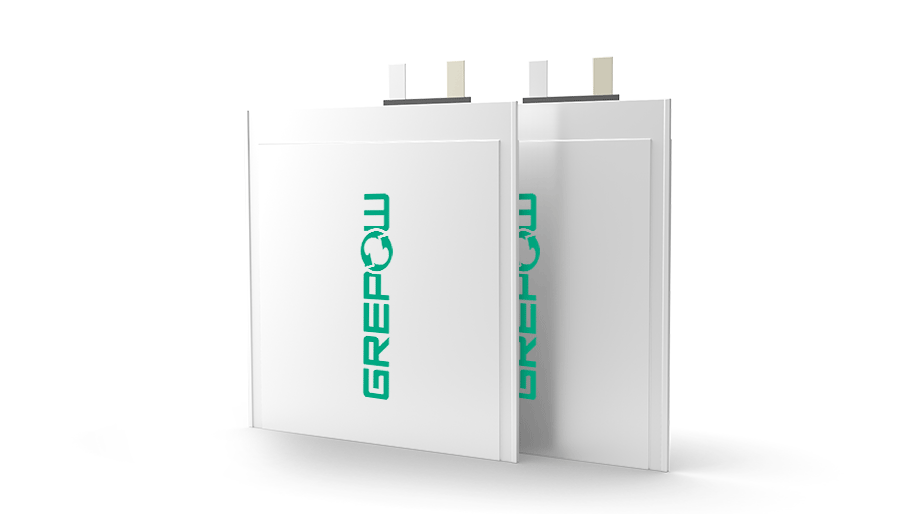

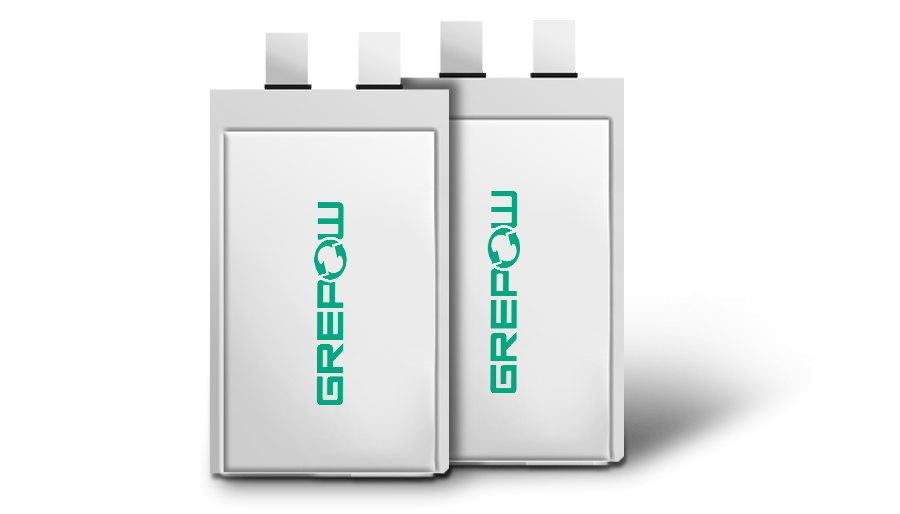

Samples Specifications of the Ultra-thin Batteries | ||||||||
Model No. | Voltage (V) | C rate | Capacity (mAh) | Thickness (mm) | Width (mm) | Length (mm) | Shape | Mould |
GRP0849049 | 4.35 | 1C | 140 | 0.8 | 49 | 49 | Ultra-thin | Yes |
GRP0849049 | 4.2 | 1C | 135 | 0.8 | 49 | 49 | Ultra-thin | Yes |
GRP0449049 | 4.35 | 1C | 48 | 0.4 | 49 | 49 | Ultra-thin | Yes |
GRP0422055 | 4.2 | 1C | 22 | 0.4 | 22 | 55 | Ultra-thin | Yes |
