| Model NO. | C-Rate | Nom. Voltage | Capacity | Max. Cont. Discharge Current | Thickness (mm) | Width (mm) | Length (mm) | Weight (g) |
GRP5530048 | 20C | 3.7V | 650mAh | 13A | 5.2±0.2 | 30.0±0.5 | 49.5±0.5 | 14.5±1.0 |
GRP8524086 | 20C | 3.7V | 1700mAh | 32A | 8.3±0.3 | 23.5±1.0 | 86.5±1.0 | 34.5±1.5 |
GRP5442080 | 20C | 3.7V | 2000mAh | 40A | 5.2±0.2 | 41.5±1.0 | 80.5±1.0 | 39.5±1.5 |
GRP7528081 | 20C | 3.7V | 2100mAh | 20A | 7.2±0.3 | 27.5±1.0 | 80.5±1.0 | 37.0±1.5 |
GRP5742085 | 20C | 3.7V | 2450mAh | 49A | 5.5±0.2 | 41.0±1.0 | 84.0±1.0 | 45.5±1.5 |
GRP4942124 | 20C | 3.7V | 2700mAh | 52A | 4.7±0.2 | 41.5±1.0 | 124.5±1.0 | 53.5±2.0 |
GRP6934122 | 20C | 3.7V | 3000mAh | 60A | 6.7±0.2 | 33.5±1.0 | 122.0±1.0 | 60.0±2.0 |
GRP7736128 | 20C | 3.7V | 3800mAh | 64A | 7.4±0.3 | 35.5±1.0 | 127.5±1.0 | 74.5±2.0 |
GRP7942126 | 20C | 3.7V | 4600mAh | 92A | 7.6±0.3 | 41.5±1.0 | 127.0±1.0 | 89.5±3.0 |
GRP7146143 | 20C | 3.7V | 5200mAh | 96A | 6.8±0.3 | 46.0±1.0 | 144.0±1.0 | 100.0±3.0 |
GRP9742126 | 20C | 3.7V | 5700mAh | 114A | 9.3±0.3 | 41.5±1.0 | 127.0±1.0 | 110.5±3.0 |
GRP9444124 | 20C | 3.7V | 5900mAh | 118A | 9.2±0.3 | 42.5±1.0 | 124.5±1.0 | 112.5±3.0 |
GRP8044143 | 20C | 3.7V | 6100mAh | 120A | 7.8±0.3 | 43.5±1.0 | 142.5±1.0 | 114.0±2.0 |
GRP8544143 | 20C | 3.7V | 6400mAh | 120A | 8.2±0.3 | 43.5±1.0 | 143.5±1.0 | 116.8±2.0 |
GRPA642126 | 20C | 3.7V | 6900mAh | 80A | 10.3±0.3 | 41.5±1.0 | 127.0±1.0 | 127.5±3.0 |
GRPA942124 | 20C | 3.7V | 7200mAh | 80A | 10.6±0.3 | 41.5±1.0 | 125.0±1.0 | 132.0±3.0 |
GRP7170156 | 20C | 3.7V | 8200mAh | 57.4A | 6.8±0.3 | 69.5±1.0 | 155.5±1.0 | 160.0±5.0 |
GRP9664159 | 20C | 3.7V | 10500mAh | 73.5A | 9.3±0.3 | 63.5±1.0 | 158.0±1.0 | 204.0±5.0 |
GRP8970175 | 20C | 3.7V | 11300mAh | 79.1A | 8.7±0.3 | 69.0±1.0 | 173.0±1.0 | 224.0±5.0 |
GRP9770175 | 20C | 3.7V | 13000mAh | 91A | 9.4±0.3 | 70.0±1.0 | 174.0±1.0 | 254.0±5.0 |
GRP9675175 | 20C | 3.7V | 14000mAh | 98A | 9.3±0.3 | 74.5±1.0 | 174.5±1.0 | 270.0±5.0 |
GRPA675195 | 20C | 3.7V | 18000mAh | 108A | 10.3±0.3 | 75.0±1.0 | 196.0±1.0 | 314.0±5.0 |
● High performance in power, discharge, and life cycles due to stacking process.
● Ability to achieve 150C pulse, 90C discharge for 2 seconds, 45C continuous discharge, and 5C fast charging.
● Provides better temperature stability and tolerance due to the allowance of higher discharge rate.
● Ultra-thin characteristics, light weight, flexible size, flexible shapes, and ability to accommodate many applications.

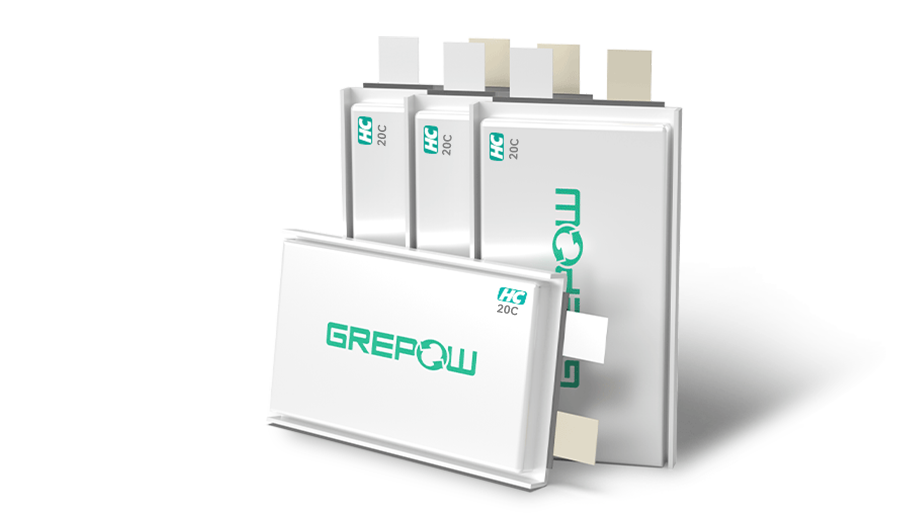

20C high rate lithium polymer (lipo) battery is one of the core technology products of Grepow, using electrode materials that are beneficial to high rate discharge. As a manufacturer of high rate battery, Grepow also provides integrated battery system customization service of high rate Li-ion battery cell customization + battery management system (BMS) + structure design. Users can customize the high rate battery solution suitable for their own industry according to actual needs, so that your products have greater competitive ability.
▶Source manufacturer, physical factory, strong R&D production capacity, short delivery time and sufficient stock.
▶Self-developed high rate lithium battery cells, sufficient capacity, refusal of false label, guaranteed capacity.
▶Strict quality control: construct a full range of quality system from parts to finished products to ensure product quality
▶Safe and reliable in line with a variety of domestic and international battery certification
▶Perfect service system: quick response to customer problems and provide solutions
▶Provide local instant customer support in China, USA and German
● Flexible support for customized solutions
● Reliable and stable performance
● Samples and mass production available
● OEM, ODM available
Grepow's high rate batteries are mainly used in radio-control model airplane, racing RC cars, power tools, FPV aircrafts, electric formula racing cars, special equipment, etc. Our R&D team works closely with customers to provide the right solution for their battery applications.
