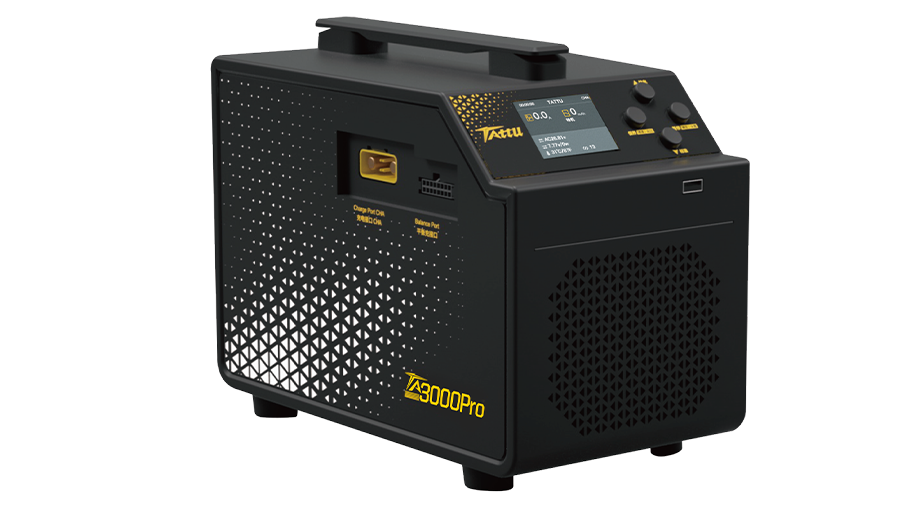

The TA3000 Pro automatically recognizes TATTU smart battery details, enabling true plug-and-charge operation without any manual parameter setup. Once connected, the charger intelligently identifies battery data and manages the entire charging process automatically. During operation, the charger continuously monitors battery status in real time and automatically stops charging when the battery is fully charged, enhancing safety while extending battery service life.
● High-Power Dual-Channel Charging
● Compatible with 12–18S Drone Batteries
● Automatic Recognition of TATTU Smart Batteries
● Plug-and-Charge Operation (No Manual Setup Required)
● Real-Time Battery Monitoring
● Automatic Charge Cut-Off for Enhanced Safety
● 2.4-Inch IPS Display with Intuitive Interface
● Multi-Language Support
Model | TA3000 Pro |
Input Voltage | AC 100-240V 50/60Hz 15A (Max) |
Output Voltage | DC 30~82V |
Charging Current | Max 40A |
Disharging Current | Max 3A |
Maximum Charging Current | AC110V: Max 25A |
Dimensions | 276×154×216mm |
Weight | Approx. 6Kg |
Supported Battery Types and Cell Count | 12~18S TATTU Smart Battery |
Operating Temperature | 0℃~45℃ |
Storage Temperature | -20℃~60℃ |
No. | Charger Type | Battery Model | Dimension(±5mm) | Weight(±100g) |
1 | TA3000 Pro | 117×174×238mm | 6300g | |
2 | TA3000 Pro | 116x172x235.5mm | 5750g | |
3 | TA3000 Pro | 333×237×92.5mm | 11500g | |
4 | TA3000 Pro | 330× 267×120mm | 14300±350g |
