How Much Battery for 3000W, 5000W, 10000W Car Audio System?

Ask three car audio shops how much battery a 5,000W system needs, and you may get three different answers. A daily driver, an engine-off demo vehicle, and an SPL build can use the same amplifier rating while placing very different demands on the battery.

Amplifier wattage alone cannot determine capacity, battery count, or pack design. Buyers must also define the use case, load duration, minimum voltage, charging method, and installation conditions.

This guide helps car audio shops, integrators, and purchasing teams prepare a battery request and compare proposals without becoming a vehicle-design tutorial.

Is There a Standard Battery Size?

There is no standard amp-hour rating or fixed number of batteries for 3,000W, 5,000W, or 10,000W systems. Watts describe amplifier power demand, while amp-hours primarily describe the charge available over time. A high-power system must satisfy both requirements: enough current capability to control voltage sag and enough usable energy for the required playback time.

Start with the combined RMS or continuous power ratings of the amplifiers under defined test conditions, not a peak or maximum marketing number. ANSI/CTA-2006-D defines measurement methods and performance characteristics for in-vehicle power amplifiers. Where available, record test voltage, load impedance, distortion limit, and test conditions; this is more useful for procurement than an undefined peak rating. (Consumer Technology Association)

This is a purchasing guide, not a battery-size chart. A recommendation based on watts alone omits conditions that can materially change the result.

Why Two 5,000W Systems May Need Different Batteries

A 5,000W RMS amplifier rating is not the same as a constant 5,000W battery load. Battery-side demand also depends on amplifier efficiency, music content, volume, limiting, impedance behavior, and whether the system is tested with music, a sine wave, or an SPL burst.

As an initial electrical check, battery input power is higher than amplifier output power because of amplifier losses:

Battery input power ≈ Amplifier RMS output power / Amplifier efficiency

For example, a 5,000W amplifier operating at 85% efficiency requires approximately 5,880W of battery input. At 14.4V, this equals about 408A before wiring losses. Actual music current may be lower than continuous-test current, while repeated bass peaks, voltage sag, and BMS limits still require pack-level validation.

The battery requirement follows the operating profile, not just the number printed on the amplifier. Before requesting a quote, place the project into a real use case.

Daily Music System

A daily system usually operates with the engine running. The alternator may carry much of the average load, while the battery supports bass peaks and short current deficits.

Do not treat the alternator's headline rating as current reserved for audio. SAE J56 specifies test methods and general requirements for regulated road-vehicle alternators, reinforcing the need for defined test conditions. (SAE International)

Idle output also matters. For example, Delco Remy lists a 12V alternator with 170A performance output but 100A at idle, showing why an idle demonstration cannot be evaluated from maximum alternator output alone. (Delco Remy)

Demonstration Vehicle

A demo vehicle may play at high volume for long periods, sometimes with the engine off. State the target playback period and the time between sessions. A pack that completes one demonstration but cannot recharge before the next may still be unsuitable.

SPL Competition System

An SPL build may demand extremely high current for a short interval. Energy use during one run can be modest, yet the pack must still remain above the amplifier's minimum voltage.

This is why a short-pulse pack and an engine-off music pack cannot be selected by capacity alone. Although developed for EV battery-performance evaluation rather than car-audio battery sizing, USABC test methods illustrate that usable energy, pulse resistance, peak power, voltage limits, state of charge, temperature, and pulse duration must be evaluated separately. (UNT Digital Library; Idaho National Laboratory)

What Should Buyers Confirm?

A useful request needs a short set of operating conditions that a supplier can translate into cells, pack configuration, protection, and mechanical design.

Confirm Audio Power and Voltage

Provide total amplifier RMS, nominal system voltage, actual operating-voltage range, and the acceptable amplifier voltage range. For example, a nominal 12V vehicle system may operate near 14V while charging, while a dedicated 16V system may be used for competition applications.

Searches for a "12 volt 1200w car audio battery" or "12 volt 2400w car audio battery" often overlook how actual voltage changes with charging state and load.

Define Operating Mode and Runtime

State whether the project is for daily music, engine-off demo, SPL, or an OEM platform. Give the required playback time or peak duration, plus the number and interval of repeated runs where relevant.

Describe Vehicle and Installation

Include the alternator specification if known, normal engine state, charger type, available dimensions, installation location, terminal orientation, and weight target. These inputs help determine whether one pack, several modules, or a custom shape is practical.

Battery Priorities by Power Class

Power classes are useful for organizing a request, but they should not become universal battery recommendations.

A car audio battery for a 3,000W amp may be designed differently from a car audio battery for a 5,000W amp, but the application can matter as much as the difference in wattage. The same applies to a car audio battery for a 2,000W amp and a car audio battery for an 8,000W amp: the product label does not replace a load profile.

What Does "Supports 5,000W" Mean?

Wattage support is incomplete unless the supplier states how it was established. Ask whether the figure represents music, a sine-wave test, or an SPL burst. Then request voltage, duration, starting SOC, temperature, lowest voltage, repetition rate where relevant, and maximum temperature rise.

The test object must also be clear. A cell result cannot automatically be presented as the performance of a finished pack containing interconnects, protection hardware, terminals, and an enclosure. IEC 62620 requires the manufacturer to declare the tested unit, where a smaller unit represents a battery, illustrating why buyers should distinguish cell, module, and pack data. (IEC 62620)

A credible statement defines pack current, pulse or load duration, starting SOC, test temperature, minimum voltage, repetition rate where relevant, and maximum temperature. That is more useful than a wattage number alone.

What Specifications Should a Supplier Provide?

The proposal should make current capability, energy, protection, charging, and mechanical integration easy to review.

Check voltage at the amplifier power terminals during representative high-current operation, not only at the battery posts. Resistance in wiring, grounds, fuses, and connectors produces voltage drop and heat; a stable battery-terminal voltage does not guarantee adequate voltage at the amplifier. (Fluke)

The BMS must be reviewed as part of the power path. Pack-level validation may include capacity, charge/discharge cycling, environmental testing, vibration, and combined temperature-vibration evaluation, depending on the applicable product requirements and market. (UL Solutions)

How to Compare Two Battery Proposals

Place competing proposals in the same worksheet. Compare:

• Tested unit: cell, module, or complete pack

• Nominal and operating voltage

• Usable capacity at the stated discharge condition

• Sustained current, duration, and thermal conditions

• Peak current, pulse duration, and repetition rate

• Lowest load voltage at the stated SOC and temperature

• Starting SOC and test temperature

• BMS settings, trigger delays, and recovery behavior

• Recharge conditions and charger compatibility

• Size, weight, terminals, and installation requirements

• Lead time, prototype quantity, and production schedule

Never compare one supplier's cell pulse figure with another supplier's pack-level sustained rating.

Optional monitoring should also be defined early. Depending on the application, monitoring may include cell-voltage measurement, temperature sensing, balancing, fault signals, and communication interfaces. These functions affect BMS architecture and should not be added as an afterthought.

Common Purchasing Mistakes

Most poor selections come from comparing one attractive number instead of the complete operating condition.

Choosing Only by Amp-Hours

Amp-hours describe available charge but do not prove peak-current capability or voltage-holding performance. A larger energy-focused battery can still perform worse under a short high-current load.

Using Cell C-Rate as the Pack Rating

Configuration, interconnects, BMS hardware, terminals, fuses, temperature, and current sharing can limit finished-pack performance. Request pack-level validation instead of multiplying a cell rating.

Comparing Peak Current Without Test Conditions

A peak figure must include duration, starting SOC, temperature, minimum voltage, and repetition rate. A one-second result does not demonstrate the same capability for 10 or 30 seconds, especially when peaks repeat.

Ignoring Recharge Time

More battery capacity can extend playback, but it does not increase alternator output and may increase the energy that must be replaced before the next session.

One Battery, Multiple Batteries, or a Custom Pack?

The number of batteries should be the result of the design review, not a rule based on watts.

One Complete Battery

One pack can simplify installation and monitoring when it meets the current, energy, voltage, and space limits.

Multiple Battery Modules

Multiple modules can add capacity or fit distributed spaces. The proposal should address matching, current sharing, branch protection, cable resistance, pre-charge requirements, and serviceability.

Custom Battery Pack

A custom pack suits projects with a specific voltage, tight dimensions, unusual terminals, high current, or integrated monitoring. It also gives repeat-build shops a reproducible configuration.

A Practical Selection Form

A B2B selection form is more useful than a car audio battery size calculator that returns one apparently precise Ah number. It should collect:

• Total amplifier RMS and system voltage

• Amplifier efficiency or DC input-current information, if available

• Daily music, demo, engine-off, or SPL use

• Music, sine-wave, pink-noise, or SPL-burst test profile

• Target playback time or peak duration

• Peak repetition rate or duty cycle

• Engine-running, idle, or engine-off operation

• Alternator and charger information

• Minimum amplifier voltage

• Installation dimensions, weight, and terminals

• Wiring length, fuse configuration, and grounding approach

• Monitoring and communication needs

• Prototype quantity, annual volume, and schedule

The output should be a battery requirement summary, not an automatic promise. A car audio electrical system calculator can help establish an initial range, but the final proposal still requires pack-level review and testing.

How Grepow Approaches Custom Projects

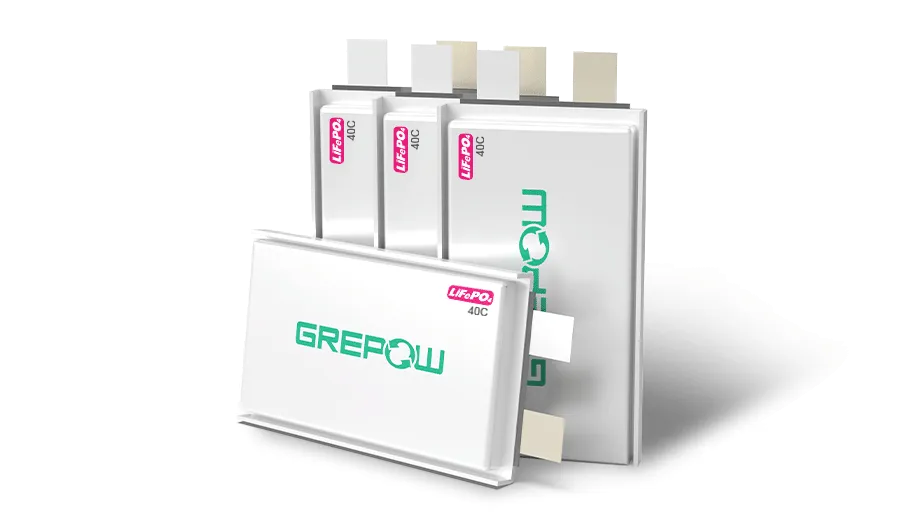

Grepow can evaluate high-rate pouch LiFePO4 cell options for projects requiring repeated current delivery in a compact space. Its published 40C LiFePO4 portfolio includes models from 1.7Ah to 7.8Ah, with listed maximum continuous-discharge ratings from 68A to 312A at the cell level. (Grepow 40C High Discharge Rate LiFePO4 Battery Cells)

Final continuous and pulse capability must be defined at pack level, including cell configuration, interconnects, BMS functions, terminals, fusing, thermal performance, monitoring, communication, and protection. Grepow's development process begins with the load profile, runtime, voltage, charging architecture, and installation envelope.

Submit total RMS, operating mode, load duration or playback time, peak repetition rate, charging information, minimum voltage, dimensions, weight target, and volume. This provides more value than a generic "battery for 5,000 watt amp" label.

Conclusion

A 3,000W, 5,000W, or 10,000W rating is only the first input. Buyers should define operating mode, load duration, minimum voltage, charging support, installation space, wiring conditions, and monitoring requirements before comparing products.

The strongest proposal states what the complete pack can deliver, for how long, at what SOC and temperature, under defined voltage and duty-cycle conditions. That gives shops and integrators a specification they can test, purchase, and reproduce.
