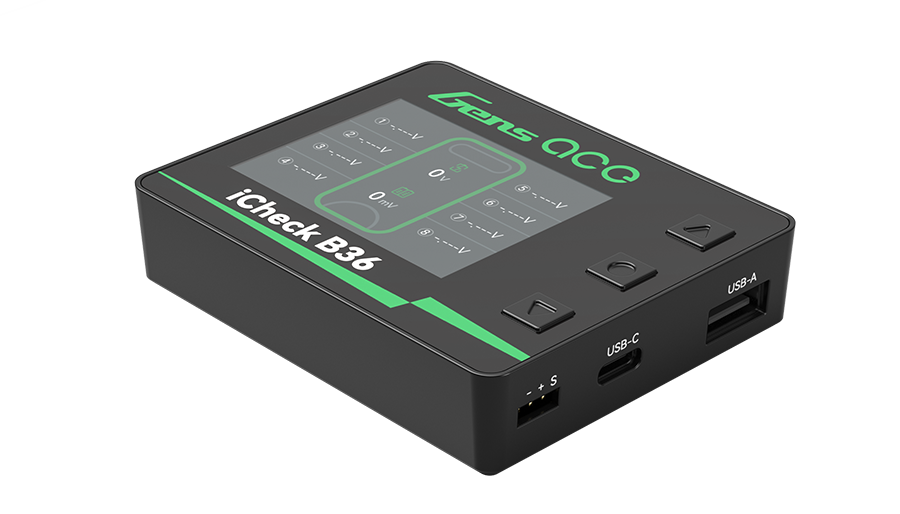

The iCheck B36 is a battery condition monitor designed specifically for 1-8S hobby battery packs, supporting multiple languages, including Chinese, English, German, and French. The device utilises advanced G-Tech technology to recognise connected G-Tech smart batteries automatically and allows users to adjust the default charging current parameters for G-Tech batteries manually. Furthermore, the iCheck B36 supports cell voltage balancing for model batteries, ensuring precise voltage equalisation across each cell. Via its USB port, the iCheck B36 can function as a powerful portable charger, compatible with PD 3.0 and QC 2.0 charging protocols. It also features PWM, PPM and other communication signal testing capabilities, along with protocol analysis functionality. Equipped with a range of safety protection measures, including over-temperature and over-current protection, the iCheck B36 ensures comprehensive operational safety.
● Real-Time Battery Monitoring & Data Visibility
● Intelligent Safety Protection System
● Portable Fast Charging with Easy One-Touch Control
● Precision Cell Balancing for Better Battery Health
Name | Multi-function Smart Battery Checker | Balancing cells accuracy | ＜0.01V |
Mode | iCheck B36 | Equilibrium current | 100mA/cell |
Battery Type | LiHv/LiPo/LiFe/LiIon (1-8S) | Input interface | XT60 interface + G-Tech balance port |
Operating mode | Balance discharge/USB charging | Output interface | USB-A port + USB-C port, C port upgraded + PD3.0 |
Output power | Type-C Output Power PD30W(Max)/USB Output Power QC22.5W(Max) | Display type | 2.4-inch IPS screen |
USB output current | 3A (Max) | Size | Approx. 82x67x19mm |
Balance Discharging power | 2W (Max) | Weight | Approx. 75g |
